Control Arm

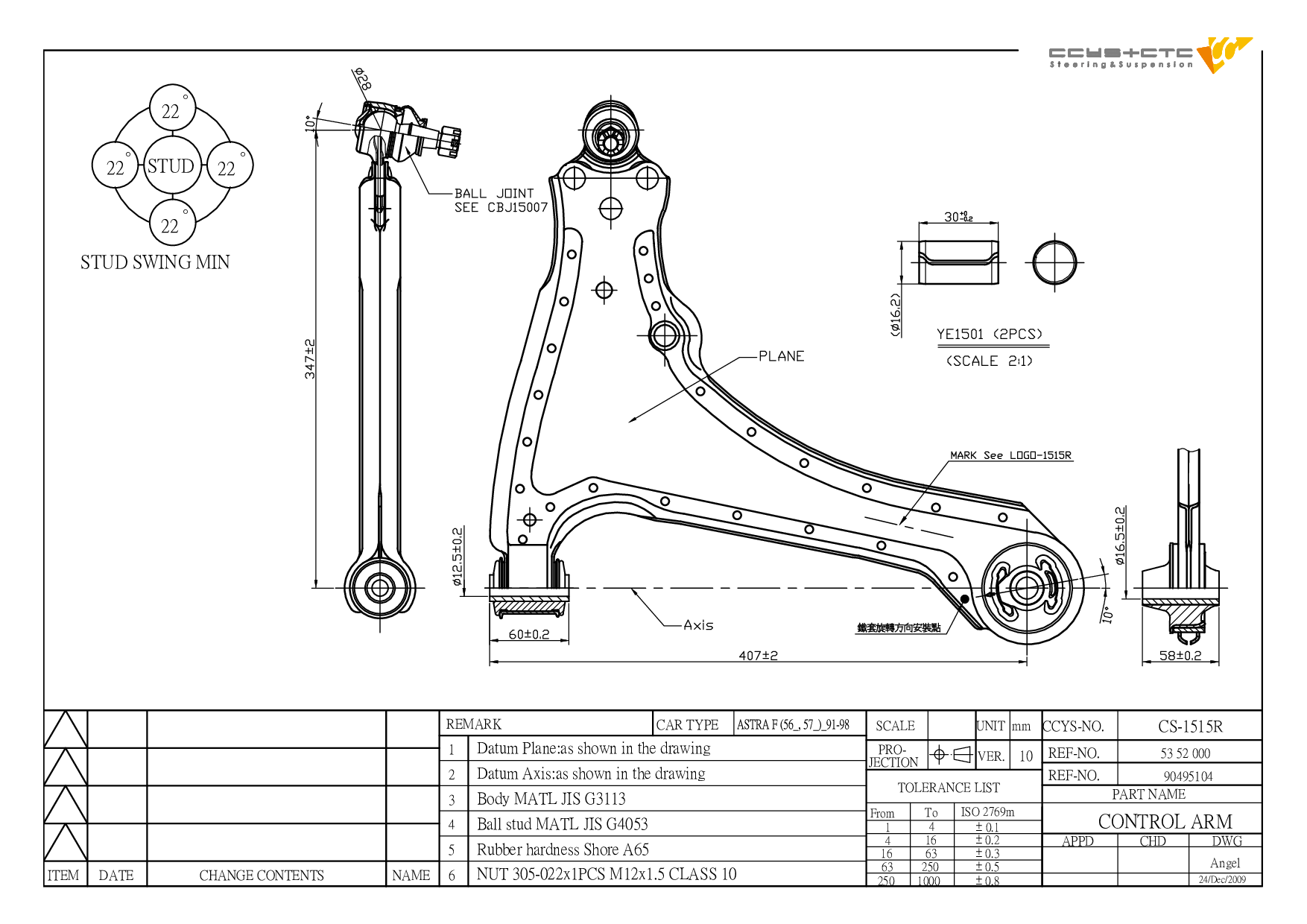

OPEL / CALIBRA A (C89) / Control Arm / FRONT LOWER RH / CS-1515R

Technical Specification Matrix

CS-1515R 是 OPEL 專用的控制臂 (FRONT LOWER RH)。本產品為 OEM 規格替代零件，適配原廠料號 53 52 000,90495104。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER RH
OE 替代料號 (Original Equipment Numbers)	53 52 000 90495104
Length	450 mm
Width	411 mm
Height	88 mm
Net Weight	3.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH15001	FRONT LOWER ARM REAR	352 348 90268463
CBH15017	FRONT LOWER ARM REAR	3 52 352 3 52 356 90373264 90495046
CBJ15004	FRONT LOWER LH/ RH	090141393 090295479 090297863 1603121 1603163 1603167 90141393 90295479 90297563 90297863
CBJ15007A	FRONT LOWER LH/ RH
CS-1501L	FRONT LOWER LH	3 52 075 3 52 077 3 52 163 3 52 193 53 52 015 90373779 90473224 90473226 90495159 90495161
CS-1501R	FRONT LOWER RH	3 52 074 3 52 076 3 52 192 53 52 018 90473225 90473227 90495160 90495162
CS-1515L	FRONT LOWER LH	53 52 001 90495103
CS-1515R	FRONT LOWER RH	53 52 000 90495104
CSL15001	FRONT (A= 84.5MM)	0 350 261 03 50 261 S1 3 50 261 S1 90278577 90278577 S1
CSL15003	FRONT (A= 84.5MM)	0 350 260 03 50 260 S1 3 50 260 S1 90278579 90278579 S1
CSL15006	FRONT (A= 301.2MM)	0 350 611 0 350 614 013169439 090498745 13169439 3 50 611 3 50 614 90498745
CSL27005	FRONT (A= 88MM)	0 350 263 03 50 263 S1 3 50 263 S1 4544599 90495045 90495045 S1
