Control Arm

OPEL / AGILA A (H00) / Control Arm / FRONT LOWER LH/ RH / CS-1514

Name: CS-1514
Brand: CTE
SKU: CS-1514
Price: 1284.00 TWD
Availability: InStock

AGILA (H00) VIN to 1G075421／WAGON R VIN to 140197／AGILA MKI (A) (H00) MK II (B) (H08) VIN to 1G075421

Control Arm/OPEL/SUZUKI/AGILA (A) (H00)/AGILA (B) (H08)/WAGON R Hatchback

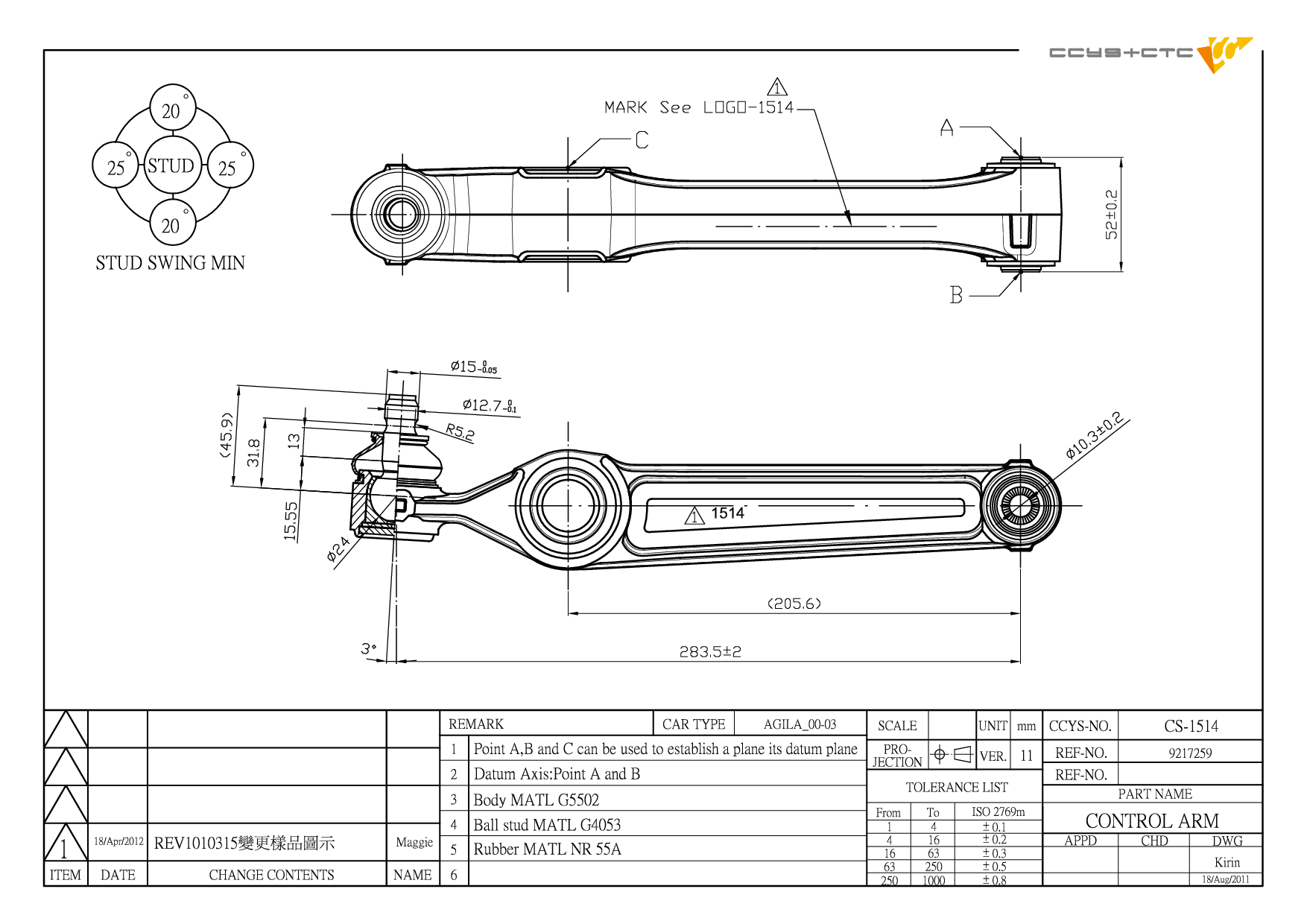

Technical Specification Matrix

CS-1514 是 OPEL 專用的控制臂 (FRONT LOWER LH/ RH)。本產品為 OEM 規格替代零件，適配原廠料號 009208987,009217259,09208987,09217259,1A07-34-300A,45200-75F00,45200-75F00-000,45200-75F10,45200-75F20,45200-75F20-000,45200-75F21,45200-75F21-000,4705172,4708233,9208987,9217259。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH/ RH
OE 替代料號 (Original Equipment Numbers)	009208987 009217259 09208987 09217259 1A07-34-300A 45200-75F00 45200-75F00-000 45200-75F10 45200-75F20 45200-75F20-000 45200-75F21 45200-75F21-000 4705172 4708233 9208987 9217259
Length	332 mm
Width	52 mm
Height	80 mm
Net Weight	2.3 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH07001	FRONT LOWER ARM INNER	009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963
CBH15023	FRONT LOWER ARM OUTER	009205432 009209350 009209466 09205432 09209350 09209466 42451-76G00 42451-76G00-000 42451-M76G00 47 05 409 9205432 9209350 9209466
CRE07022	FRONT AXLE LH/ RH	009204752 09204752 47 01 745 48830-83E00 48830-83E00-000 48830-86G00 48830-86G00-000 9204752

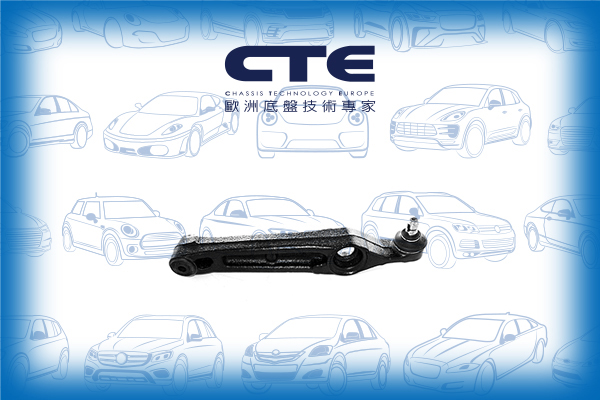

CS-1513	FRONT LOWER LH/ RH	009210270 009212530 009214826 09210270 09212530 09214826 45200-83E00 45200-83E00-000 45200-84E00 45200-84E00-000 45200-85E00 4705742 4706665 4707 280 9210270 9212530 9214826
CS-1514	FRONT LOWER LH/ RH	009208987 009217259 09208987 09217259 1A07-34-300A 45200-75F00 45200-75F00-000 45200-75F10 45200-75F20 45200-75F20-000 45200-75F21 45200-75F21-000 4705172 4708233 9208987 9217259
CTE03009	FRONT AXLE LH/ RH (C= M12X1.25)	009204751 009210168 009210351 09204751 09210168 09210351 47 01 744 47 05 655 47 05 716 47 09 195 485204A00B 48810-60810 48810-60J00 48810-63J00 48810-83E00 48810-83E00-000 48810-83E01 48810-83E01-000 48810-83E02 48810-83E02-000 48810-84M00 48810-84M00-000
