Technical Specification Matrix

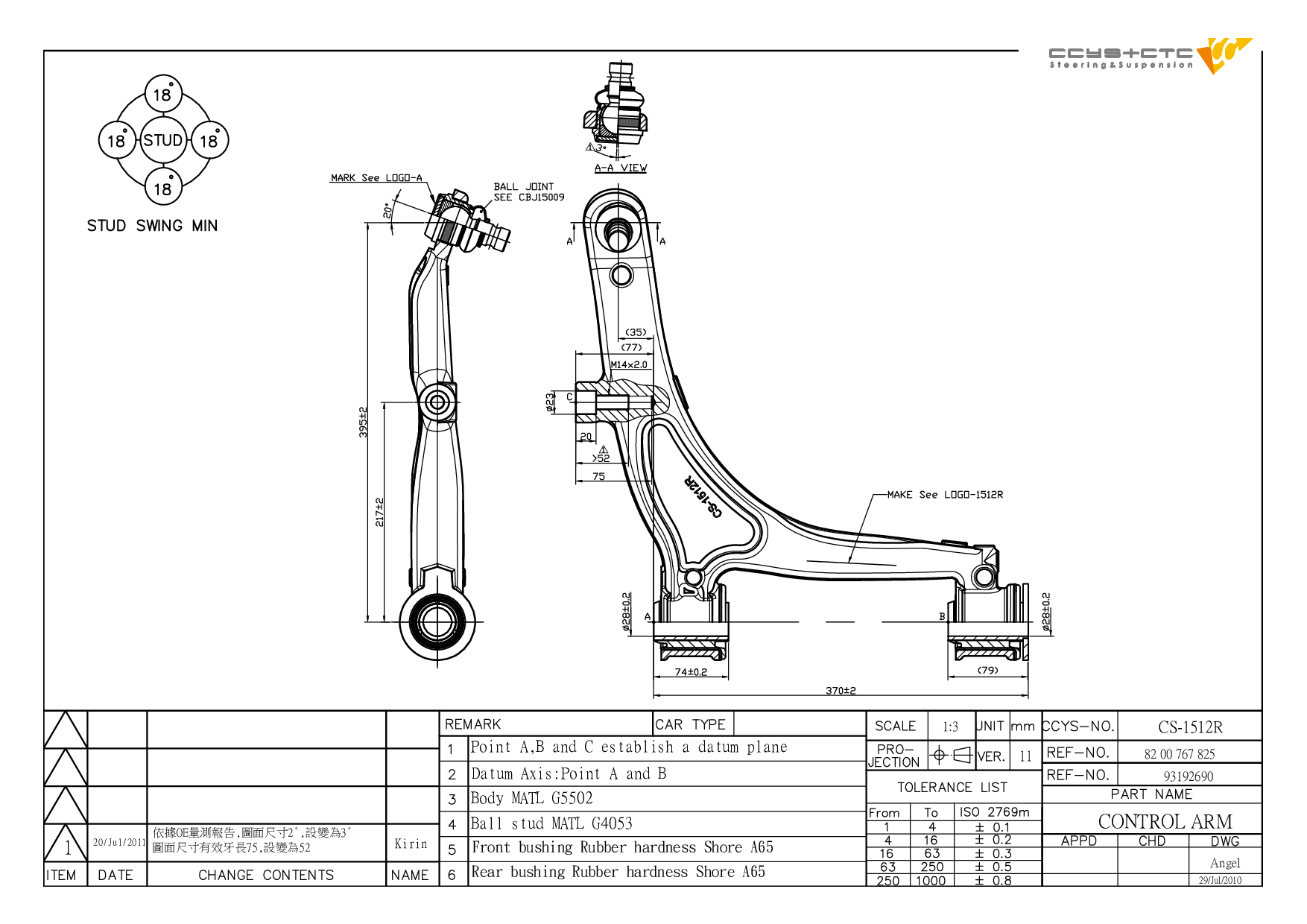

CS-1512R 是 RENAULT 專用的 控制臂 (FRONT LOWER RH)。
本產品為 OEM 規格替代零件，適配原廠料號 4401853,4401941,4404048,4418213,4500093,5450000Q0C,5450000QAC,5450000QAD,5450000QAE,6006003103,7700302119,7700309190,7700625733,7700705255,7700712989,82 00 767 825,8200256945,8200270058,9109853,9109941,9112048,9160393,93192690。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Control Arm |
| Position | FRONT LOWER RH |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 465 mm |
| Width | 447 mm |
| Height | 109 mm |
| Net Weight | 11.7 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |

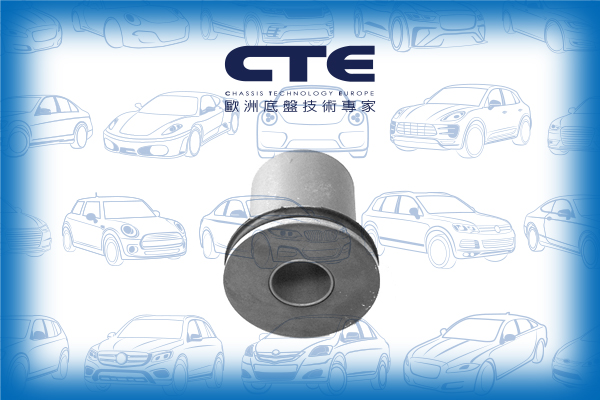

CBH15020 | FRONT LOWER ARM REAR |
|
|
 |

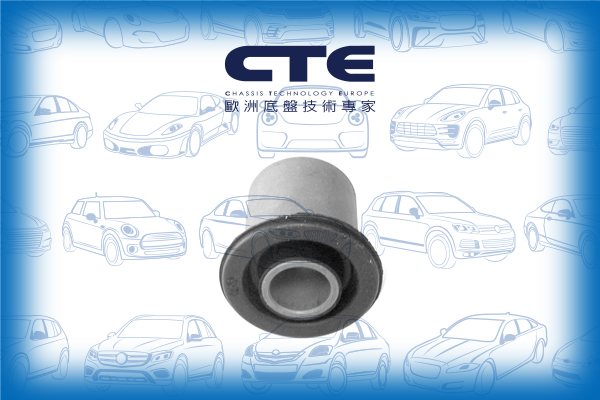

CBH15021 | FRONT LOWER ARM INNER |
|
|
 |

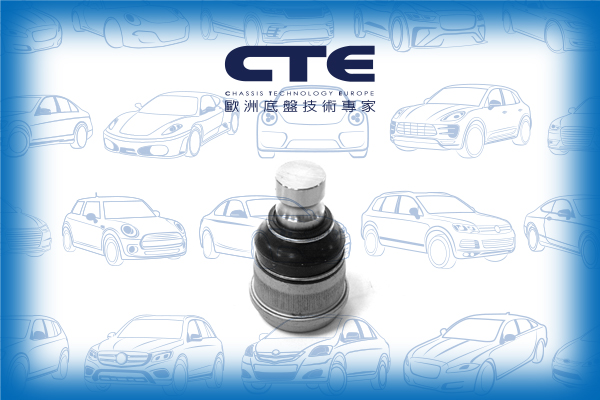

CBJ15009 | FRONT LOWER LH/ RH |
|
|
 |

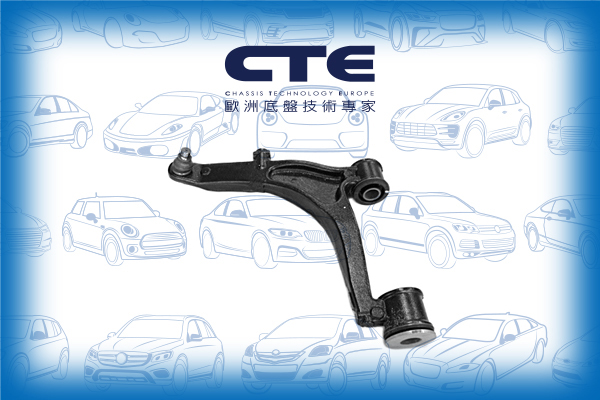

CS-1512L | FRONT LOWER LH |
|
|
 |

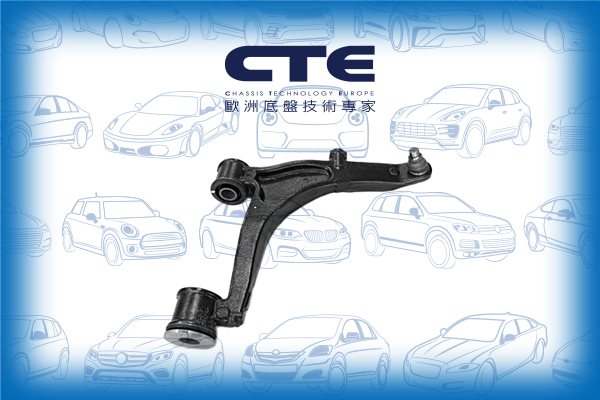

CS-1512R | FRONT LOWER RH |
|
|
 |
CSL06078L | FRONT AXLE LH |
|
|
 |
CSL06078R | FRONT AXLE RH |
|
| Model (Year) |
|---|
|
MASTER I Bus (T__) MASTER I Platform/Chassis (P__) MASTER I Van (T__) MASTER II Bus (JD) MASTER II Platform/Chassis (ED/HD/UD) MASTER II Van (FD) MASTER III Bus (JV) MASTER III Platform/Chassis (EV, HV, UV) MASTER III Van (FV) |
| Model (Year) |
|---|
|
MOVANO A Bus (X70) MOVANO A Platform/Chassis (X70) MOVANO A Van (X70) |
