Control Arm

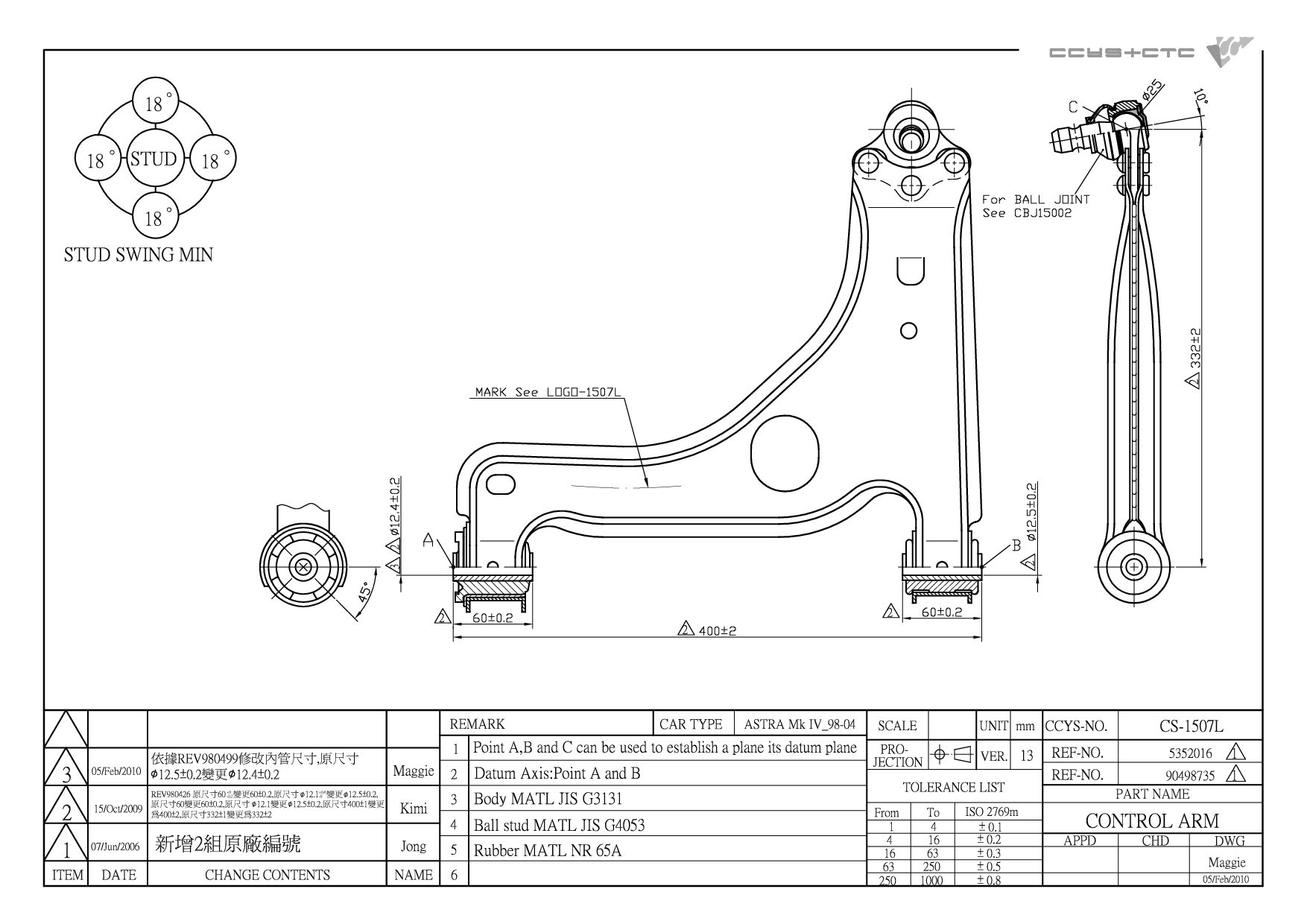

CHEVROLET / ASTRA Estate / Control Arm / FRONT LOWER LH / CS-1507L

Name: CS-1507L
Brand: CTE
SKU: CS-1507L
Price: 2246.00 TWD
Availability: InStock

OPEL ASTRA G Construction year to 04.2005

Technical Specification Matrix

CS-1507L 是 CHEVROLET 專用的控制臂 (FRONT LOWER LH)。本產品為 OEM 規格替代零件，適配原廠料號 53 52 005,5352016,90496039,90498735。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT LOWER LH
OE 替代料號 (Original Equipment Numbers)	53 52 005 5352016 90496039 90498735
Length	400 mm
Width	387 mm
Height	90 mm
Net Weight	3.8 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.

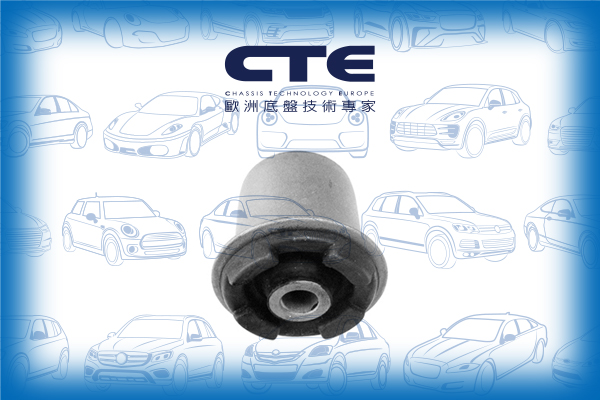

CBH15005	FRONT LOWER ARM INNER	03 52 357 03 52 364 090468636 090498738 3 52 313 3 52 323 3 52 357 352 300 352 364 4566899 4645974 90157161 90468636 90498738 9191165
CBH15012	FRONT LOWER ARM REAR	03 52 365 090498740 35 23 65 90498740

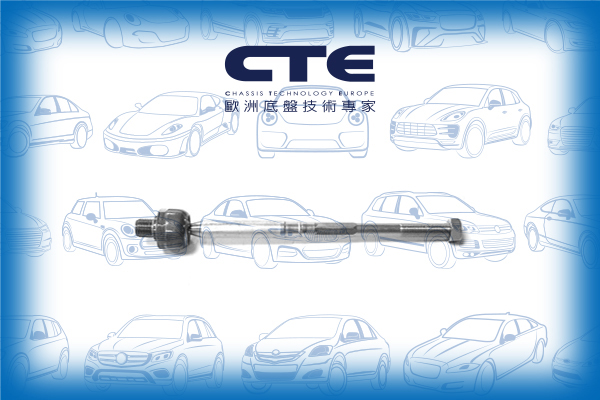

CRE15002	D= M14X1.5 , C= M18X1.5	09118128 1603213 1603216 1603256 1603287 1603302 1603303 1603643 26059293 9118128 93179557 93189450 93191526
CS-1507L	FRONT LOWER LH	53 52 005 5352016 90496039 90498735
CS-1507R	FRONT LOWER RH	53 52 004 5352017 90496040 90498736
CSL15006	FRONT (A= 301.2MM)	0 350 611 0 350 614 013169439 090498745 13169439 3 50 611 3 50 614 90498745
CSL15022	FRONT AXLE LH/ RH	013327928 0350176 13219141 13327928 350176

Model (Year)
ASTRA Estate ASTRA Hatchback ASTRA Saloon ZAFIRA (F75)

Model (Year)
ASTRA G CLASSIC Caravan (F35) ASTRA G Convertible (T98) ASTRA G Coupe (T98) ASTRA G Estate (T98) ASTRA G Estate Van (F70) ASTRA G Hatchback (T98) ASTRA G Saloon (T98) VECTRA B (J96) VECTRA B Estate (J96) VECTRA B Hatchback (J96) ZAFIRA A MPV (T98)

Model (Year)
ASTRA Mk IV (G) Convertible (T98) ASTRA Mk IV (G) Coupe (T98) ASTRA Mk IV (G) Estate (T98) ASTRA Mk IV (G) Hatchback (T98) ASTRA Mk IV (G) Saloon (T98) ASTRAVAN Mk IV (G) Estate Van (T98) VECTRA (B) Estate (J96) VECTRA (B) Hatchback (J96) VECTRA (B) Saloon (J96) ZAFIRA A (T98)
