Control Arm

HONDA / ACCORD VII (CL, CN) / Control Arm / FRONT UPPER RH / CS-148R

Name: CS-148R
Brand: CTE
SKU: CS-148R
Price: 1123.00 TWD
Availability: InStock

Control Arm/ACURA/HONDA/ACCORD Coupe (CM)/ACCORD VII (CL, CN)/ACCORD VII (CM)/ACCORD VII Tourer (CM, CN)/ACCORD VIII (CP) | INSPIRE/ACCORD VIII (CU)/ACCORD VIII Estate (CW)/LEGEND IV (KB_)/TSX (CL_)

Technical Specification Matrix

CS-148R 是 HONDA 專用的控制臂 (FRONT UPPER RH)。本產品為 OEM 規格替代零件，適配原廠料號 51450-SDA-023,51450-SDA-A01,51450-SDA-A11,51450-SDA-A12,51450-SDA-A13,51450-SDE-T00,51450-SEA-003,51450-SEA-E01,51450-SEC-A01。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT UPPER RH
OE 替代料號 (Original Equipment Numbers)	51450-SDA-023 51450-SDA-A01 51450-SDA-A11 51450-SDA-A12 51450-SDA-A13 51450-SDE-T00 51450-SEA-003 51450-SEA-E01 51450-SEC-A01
Length	255 mm
Width	252 mm
Height	83 mm
Net Weight	1.5 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH01035	FRONT UPPER ARM INNER	51450-SDA-023 51450-SDA-A01 51450-SDA-A11 51450-SDA-A12 51450-SDA-A13 51450-SEA-003 51450-SEA-E01 51450-SEC-A01 51450-SFE-003 51450-SJA-013 51450-SJK-003 51460-SDA-023 51460-SDA-A01 51460-SDA-A11 51460-SDA-A12 51460-SDA-A13 51460-SEA-003 51460-SEA-E01 514
CBH01036	FRONT LOWER ARM REAR	51391-SDA-A02 51391-SDA-A03 51391-SDB-A01 51391-SEA-004
CBH01037	FRONT LOWER ARM OUTER	51350-TP6-C00 51360-TP6-C00 51810-S1A-E01 51810-SDA-A01 51810-SJK-003 51810-SM4-003 51810-SM4-004 51810-SN7-000 51810-SN7-003 51810-SS0-003 51810-SV4-003 51810-SV4-004 51810-TA0-A01 51810-TP6-A01
CBH01038	FRONT LOWER ARM INNER	51350-TP6-C00 51360-TP6-C00 51393-SDA-A01 51393-SDA-A02 51393-SEA-004 51393-TP6-A01
CBH01041	FRONT LOWER ARM REAR	51391-TA0-A01
CRE01030	FRONT AXLE LH/ RH	53010-SEA-900
CRE01045	FRONT AXLE LH/ RH	53010-SDA-A01 53010-SFE-003 53010-SFE-013

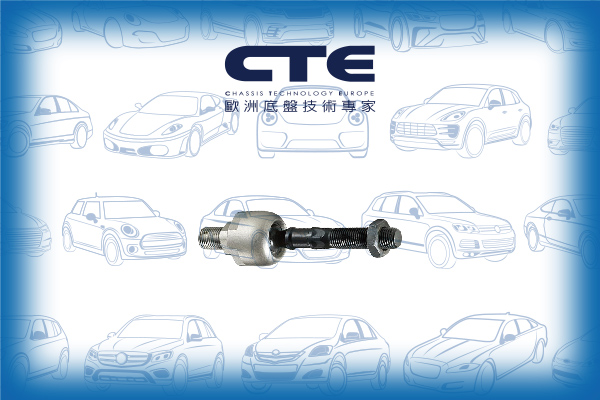

CRE01056	FRONT AXLE LH/ RH	53010-S0A-900
CS-148L	FRONT UPPER LH	51460-SDA-023 51460-SDA-A01 51460-SDA-A11 51460-SDA-A12 51460-SDA-A13 51460-SDE-T00 51460-SEA-003 51460-SEA-E01 51460-SEC-A01
CS-148R	FRONT UPPER RH	51450-SDA-023 51450-SDA-A01 51450-SDA-A11 51450-SDA-A12 51450-SDA-A13 51450-SDE-T00 51450-SEA-003 51450-SEA-E01 51450-SEC-A01
CS-149L	FRONT LOWER LH	51360-SDA-A01 51360-SDA-A02 51360-SDA-A03 51360-SDB-A00 51360-SEA-E00 51360-SEA-E01
CS-149R	FRONT LOWER RH	51350-SDA-A01 51350-SDA-A02 51350-SDA-A03 51350-SDB-A00 51350-SEA-E00 51350-SEA-E01
CSL01025L	FRONT LH (A= 80MM)	51321-SDA-A02 51321-SDA-A03 51321-SDA-A04 51321-SDR-003 51321-SEA-E01 51325-TA0-A01
CSL01025R	FRONT RH (A= 80MM)	51320-SDA-A02 51320-SDA-A03 51320-SDA-A04 51320-SDR-003 51320-SEA-E01 51320-TA0-A01
CTE01008L	FRONT AXLE LH (C= M14X1.5)	53560-SDA-A01
CTE01008R	FRONT AXLE RH (C= M14X1.5)	53540-SDA-A01
