Control Arm

HONDA / ACCORD VI (CK, CG, CH, CF, CL) / Control Arm / FRONT UPPER LH / CS-127L

Name: CS-127L
Brand: CTE
SKU: CS-127L
Price: 2208.00 TWD
Availability: InStock

US
JP Standard

Technical Specification Matrix

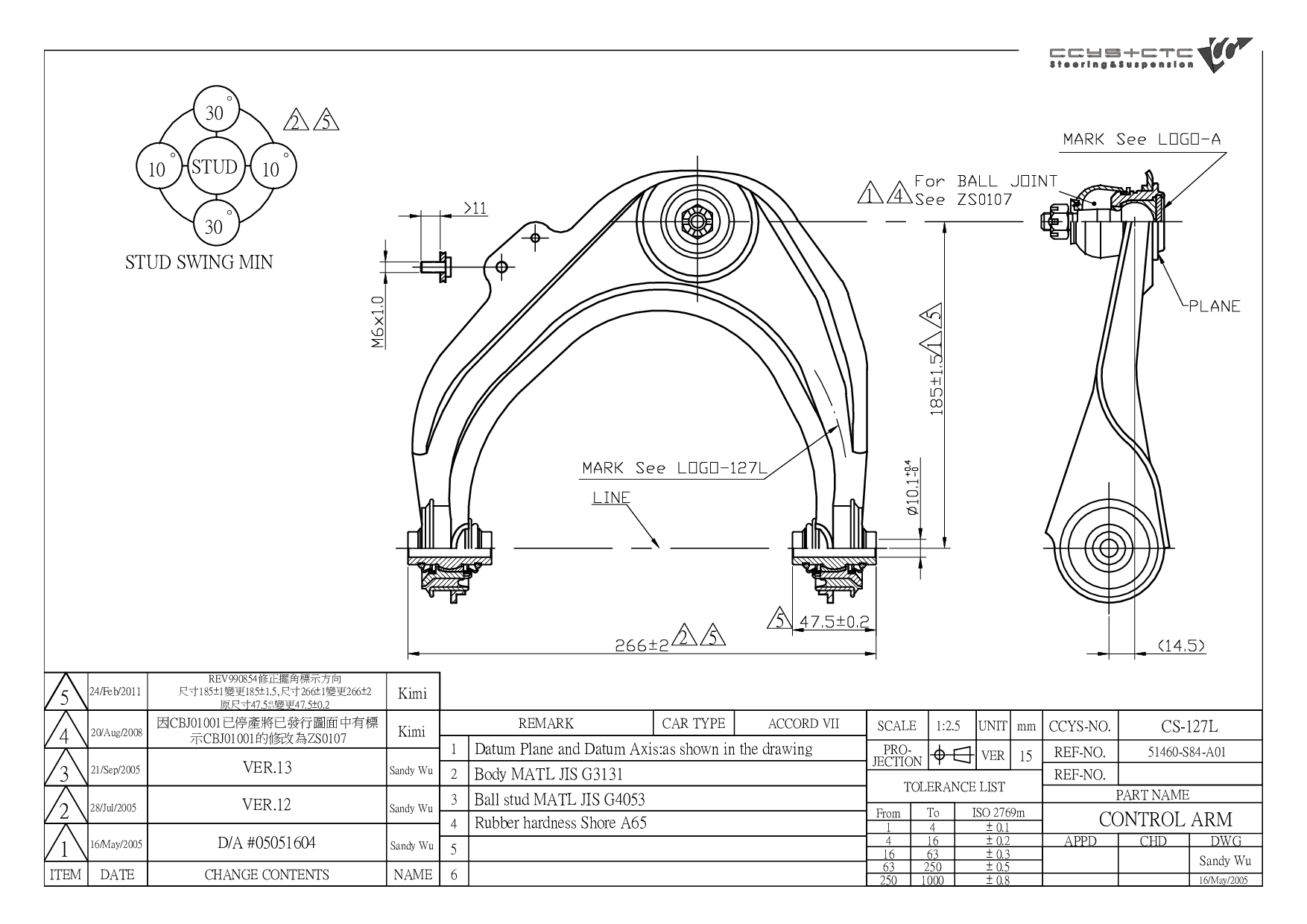

CS-127L 是 HONDA 專用的控制臂 (FRONT UPPER LH)。本產品為 OEM 規格替代零件，適配原廠料號 51460-S1A-E01,51460-S2X-003,51460-S84-A01。

PARAMETER	METRIC / VALUE
Designation	Control Arm
Position	FRONT UPPER LH
OE 替代料號 (Original Equipment Numbers)	51460-S1A-E01 51460-S2X-003 51460-S84-A01
Length	266 mm
Width	246 mm
Height	75 mm
Net Weight	1.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH01022	FRONT LOWER ARM INNER	51393-S0A-004 51393-S0A-014 51393-S1A-E01 51393-SL4-004 51393-SL5-003 51393-SL5-013 51393-SL9-013 51393-SM4-003 51393-SM4-013 51393-SM4-505 51393-SV1-A01 51393-SV1-E01 RBX100431
CBH01025	REAR LINK INNER	52390-S3V-A01 52390-S84-A01 52390-SDA-A01 52390-SHJ-A01 52400-S3V-A01 52400-SHJ-A01 CK620375
CBH01039	FRONT UPPER ARM INNER	51450-S1A-E01 51450-S2X-003 51450-S84-A01 51460-S1A-E01 51460-S2X-003 51460-S84-A01
CRE01019	D= M14X1.5 , C= M16X1.5	53010-S84-A01 53010-S84-A01A
CRE01056	FRONT AXLE LH/ RH	53010-S0A-900
CS-127L	FRONT UPPER LH	51460-S1A-E01 51460-S2X-003 51460-S84-A01
CS-127R	FRONT UPPER RH	51450-S1A-E01 51450-S2X-003 51450-S84-A01
CS-128L	FRONT LOWER LH	51365-S84-A00
CS-128R	FRONT LOWER RH	51355-S84-A00
CS-132	REAR AXLE LINK LH/ RH	52390-S84-A01 CK620375
CS-138L	FRONT LOWER LH	51365-S0A-920 51365-S1A-E00
CS-138R	FRONT LOWER RH	51355-S0A-920 51355-S1A-E00
CTE01002L	FRONT AXLE LH (C= M14X1.5)	53560-S1A-E01 53560-S84-A01 53560-SM4-003 53560-SM4-004 53560-SM4-J62 53560-SV4-003 53560-SV4-013 53560-SV7-003 53560-SX0-003 53560-SX0-013 53560-SX4-003 GSJ407
CTE01002R	FRONT AXLE RH (C= M14X1.5)	53540-S1A-E01 53540-S84-A01 53540-SM4-003 53540-SM4-004 53540-SM4-J62 53540-SV4-003 53540-SV4-013 53540-SV7-003 53540-SX0-003 53540-SX0-013 53540-SX4-003 GSJ408
