Rack End

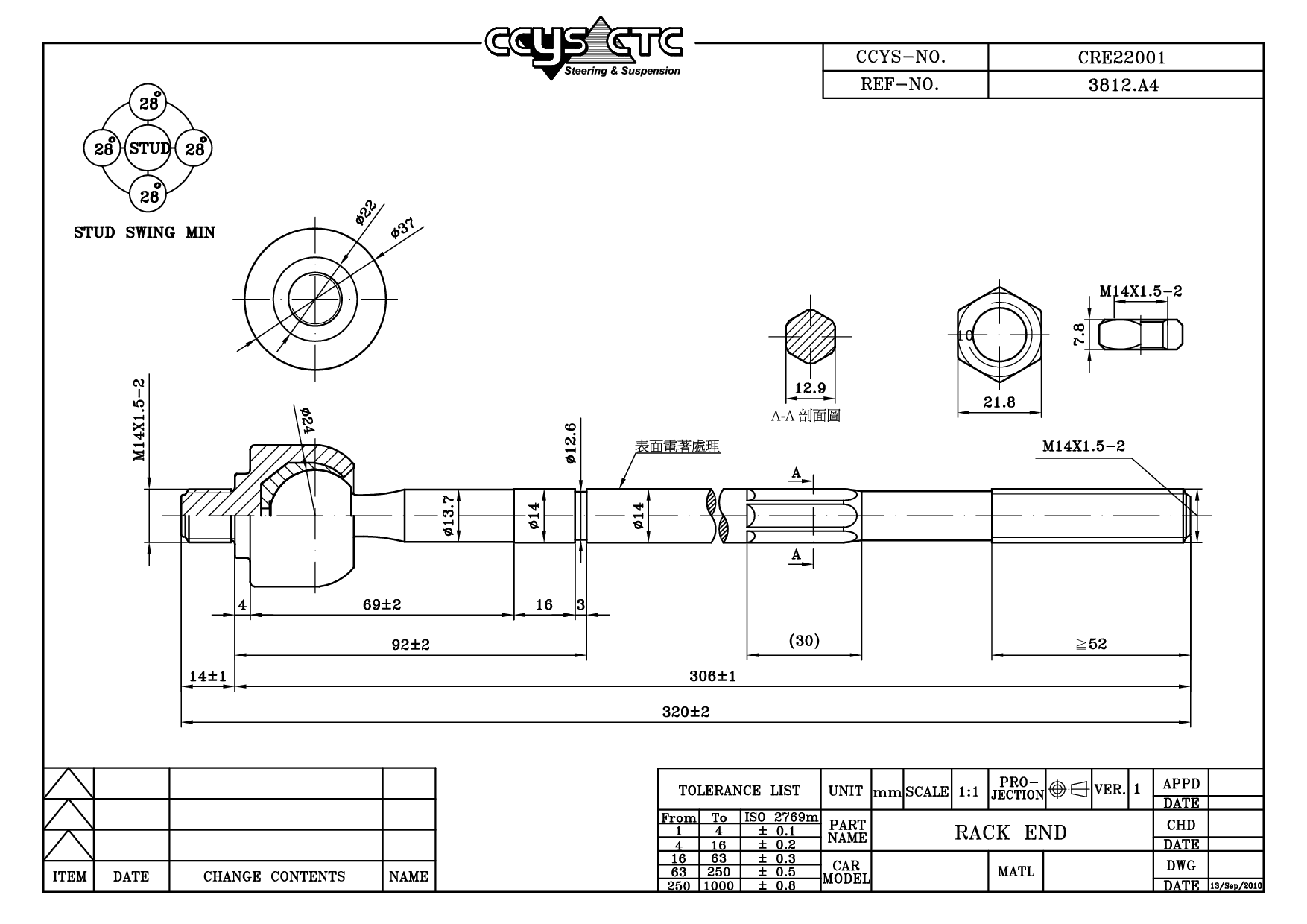

FIAT / MULTIPLA (186_) / Rack End / D= M14X1.5 , C= M14X1.5 / CRE22001

Technical Specification Matrix

CRE22001 是 FIAT 專用的轉向舵桿 (D= M14X1.5 , C= M14X1.5)。本產品為 OEM 規格替代零件，適配原廠料號 3812.A4。

PARAMETER	METRIC / VALUE
Designation	Rack End
Position	D= M14X1.5 , C= M14X1.5
OE 替代料號 (Original Equipment Numbers)	3812.A4
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	0.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH22003L	FRONT LOWER ARM LH REAR	1313083080 1316735080 1317389080 1322663080 1333754080 3520.94 3520.C3 3520.C5 3520.C9 3520.G9 3520.P4 3520.P8 71737047 93500972
CBH22003R	FRONT LOWER ARM RH REAR	1313084080 1316736080 1317390080 1322664080 1333755080 3521.64 3521.83 3521.85 3521.C9 3521.J9 3521.K4 3521.L0 71737048 93500973
CBH22004	FRONT LOWER ARM INNER	1313083080 1313084080 1316735080 1316736080 1317389080 1317390080 1322663080 1322664080 1333754080 1333755080 3520.94 3520.C3 3520.C5 3520.C9 3520.G9 3520.N9 3520.P4 3520.P8 3521.64 3521.83 3521.85 3521.C9 3521.J9 3521.K4 3521.L0 71737047 71737048 9350097
CBH22015L	FRONT LOWER ARM LH REAR	1401239580 1497408080 3520.R8 3520.V8 SU001-A0992
CBH22015R	FRONT LOWER ARM RH REAR	1401239480 1497407080 3521.N9 3521.S0 SU001-A0993
CBH22016	FRONT LOWER ARM INNER	1401239480 1401239580 1497407080 1497408080 3520.R8 3520.V8 3520.W4 3521.N9 3521.S0 3521.S7 93501487 93501488 SU001-A0992 SU001-A0993
CRE22001	D= M14X1.5 , C= M14X1.5	3812.A4
CS-2204L	FRONT LOWER LH	1313083080 1316735080 1317389080 1322663080 1333754080 3520.94 3520.C3 3520.C5 3520.C9 3520.G9 3520.N9 3520.P4 3520.P8 71737047 93500972
CS-2204R	FRONT LOWER RH	1313084080 1316736080 1317390080 1322664080 1333755080 3521.64 3521.83 3521.85 3521.C9 3521.J9 3521.K4 3521.L0 71737048 93500973
CSL25008	FRONT (A= 263MM)	1331209080 16 073 253 80 16 348 989 80 5087.51
