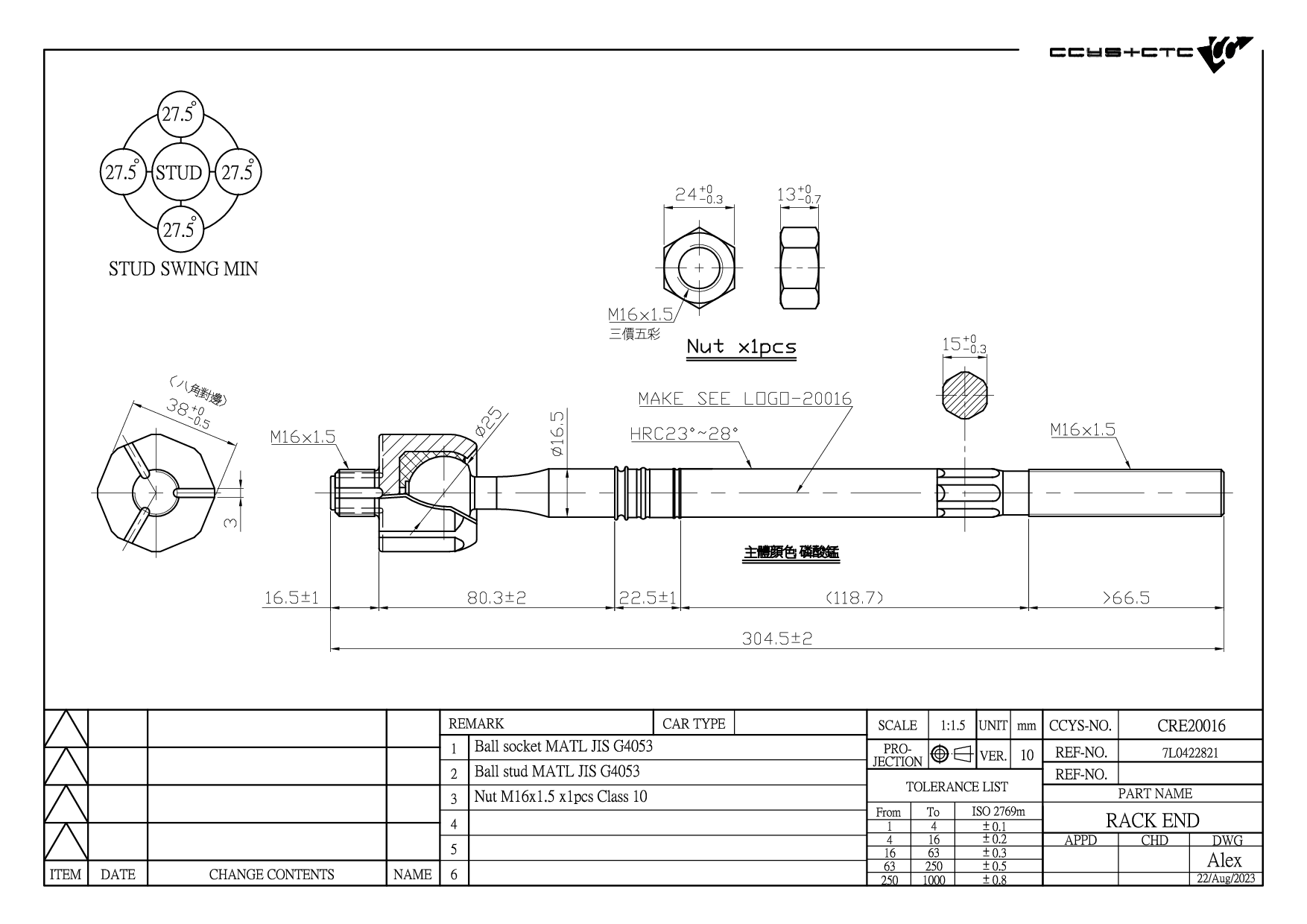

Rack End
Technical Specification Matrix
CRE20016 是 VOLKSWAGEN 專用的 轉向舵桿 (D= M16X1.5 , C= M16X1.5)。
本產品為 OEM 規格替代零件，適配原廠料號 2H0 419 803,2H0 419 804,7L0 422 803 B,7L0 422 803 C,7L0 422 803 D,7L0 422 803A,7L0 422 804 B,7L0 422 804 C,7L0 422 804 D,7L0 422 810C,7L0 422 821,7L0 423 810,955 347 031 20,955 347 031 21,955 347 031 22,955 347 032 20,955 347 032 21,955 347 032 22。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Rack End |
| Position | D= M16X1.5 , C= M16X1.5 |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 310 mm |
| Width | 50 mm |
| Height | 50 mm |
| Net Weight | 0.7 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH19049 | REAR UPPER ARM |
|
|
 |
CBH19051 | REAR UPPER ARM |
|
|
 |
CBH20012 | FRONT LOWER ARM INNER |
|
|
 |
CBH20013 | FRONT LOWER ARM OUTER |
|
|
 |
CBH20037 | FRONT AXLE |
|
|
 |
CBH34003 | FRONT UPPER ARM INNER |
|
|
 |
CRE20016 | D= M16X1.5 , C= M16X1.5 |
|
|
 |
CS-1930L | FRONT LOWER LH |
|
|
 |
CS-1930R | FRONT LOWER RH |
|
|
 |
CS-1960L | FRONT LOWER LH |
|
|
 |
CS-1960R | FRONT LOWER RH |
|
|
 |
CS-1995 | REAR UPPER LH/ RH |
|
|
 |
CS-1996L | REAR UPPER LH |
|
|
 |
CS-1996R | REAR UPPER RH |
|
|
 |
CS-3416 | FRONT UPPER LH/RH |
|
|
 |
CS-3456L | REAR LOWER LH |
|
|
 |
CS-3456R | REAR LOWER RH |
|
|
 |
CSL19016 | FRONT (A= 197MM) |
|
|
 |
CSR20005L | FRONT AXLE LH |
|
|
 |
CSR20005R | FRONT AXLE RH |
|
|
 |
CTE20003L | FRONT AXLE LH (C= M16X1.5) |
|
|
 |
CTE20003R | FRONT AXLE RH (C= M16X1.5) |
|
| Model (Year) |
|---|
|
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD) AMAROK Platform/Chassis (S1B) AMAROK Platform/Chassis (S1B, S6B, S7B) TOUAREG (7LA, 7L6, 7L7) TOUAREG (7P5, 7P6) TOUAREG VAN (7P5) |
| Model (Year) |
|---|
|
CAYENNE (92A) CAYENNE (9PA) |
| Model (Year) |
|---|
|
Q7 (4LB) |
