Rack End

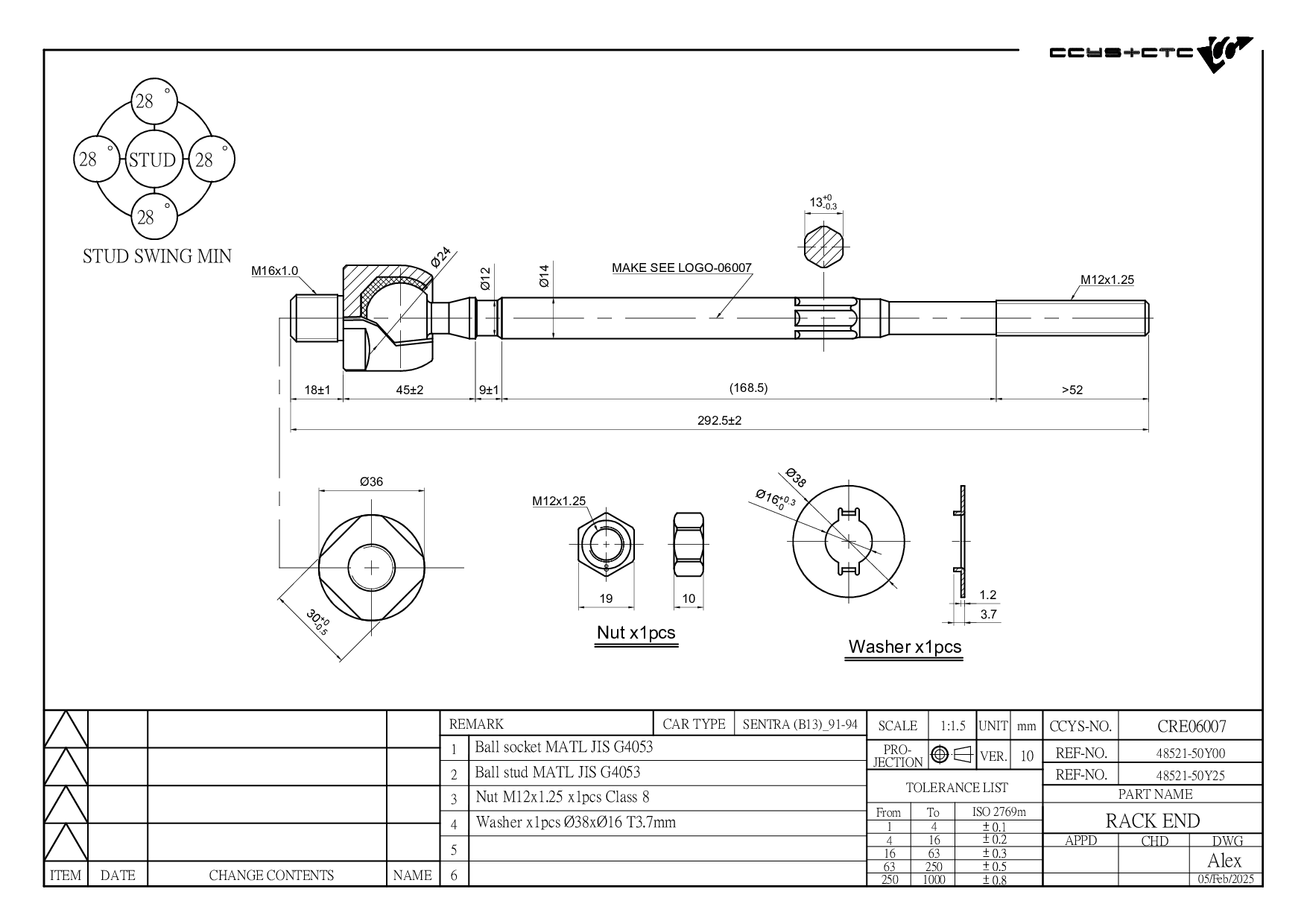

NISSAN / 100NX (B13) / Rack End / D= M12X1.25 , C= M16X1.0 / CRE06007

Name: CRE06007
Brand: CTE
SKU: CRE06007
Price: 582.00 TWD
Availability: InStock

NISSAN ALMERA I (N15) 1.4 for vehicles without power steering Year from01.1991 to 12.1992

Technical Specification Matrix

CRE06007 是 NISSAN 專用的轉向舵桿 (D= M12X1.25 , C= M16X1.0)。本產品為 OEM 規格替代零件，適配原廠料號 48521-50Y00,48521-50Y25,48521-50Y26,48521-50Y27,48521-Y02G0。

PARAMETER	METRIC / VALUE
Designation	Rack End
Position	D= M12X1.25 , C= M16X1.0
OE 替代料號 (Original Equipment Numbers)	48521-50Y00 48521-50Y25 48521-50Y26 48521-50Y27 48521-Y02G0
Length	293 mm
Width	37 mm
Height	37 mm
Net Weight	0.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH06007	FRONT LOWER ARM INNER	54560-50A00 54560-50Y10

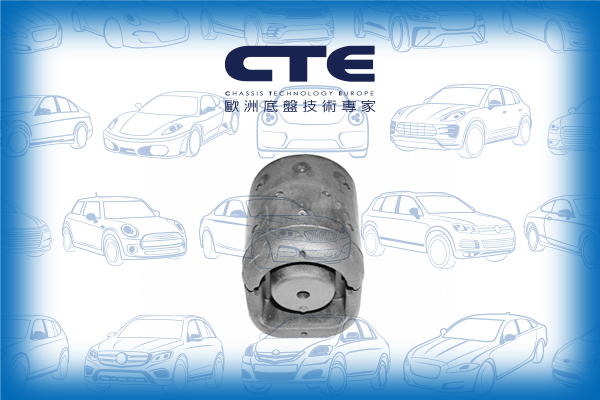

CBH06008	FRONT LOWER ARM REAR	54570-50Y11 54570-69Y10
CBJ06006	FRONT LOWER LH/ RH	1N00-99-356 40160-00001 40160-0M010 40160-0M020 40160-0M060 40160-50Y00 40160-50Y02 40160-50Y0R 40160-50Y10 40160-50Y20 40160-52Y00 40160-52Y10 40160-52Y20 40160-52Y60 40160-60Y00 40160-60Y10 40160-60Y20 40160-69Y00 40160-69Y10 40160-F4200 40160-Y02G0 401
CRE06007	D= M12X1.25 , C= M16X1.0	48521-50Y00 48521-50Y25 48521-50Y26 48521-50Y27 48521-Y02G0

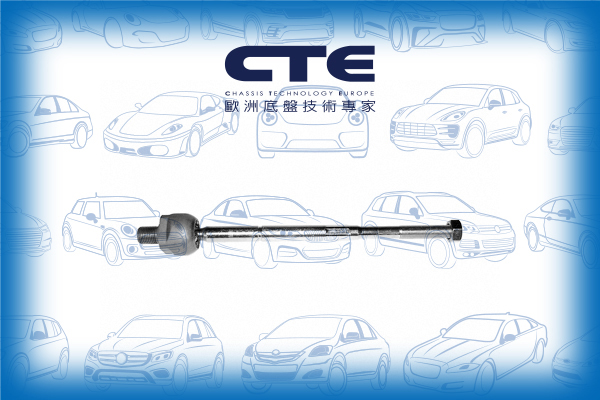

CRE06008	D= M12X1.25 , C= M16X1.5	48521-Q5601

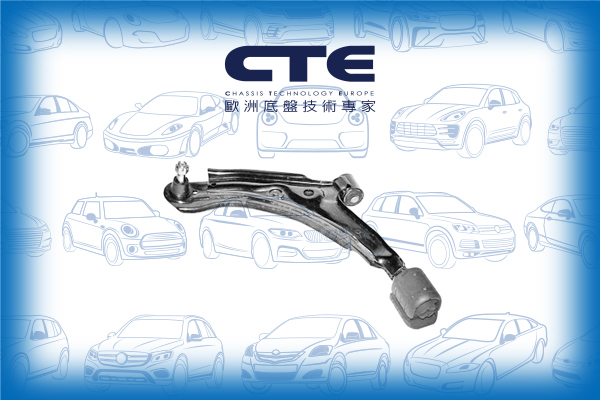

CS-621L	FRONT LOWER LH	54501-52Y70

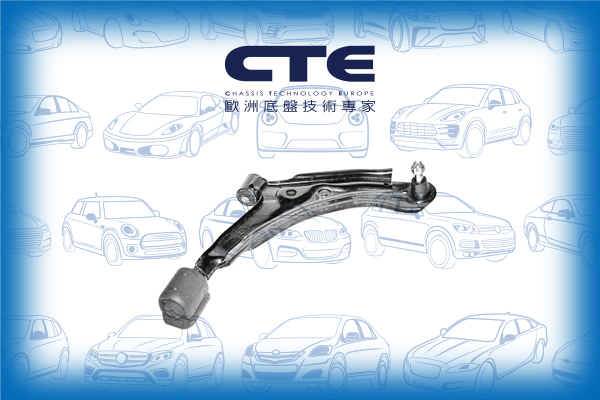

CS-621R	FRONT LOWER RH	54500-52Y70
CSL06010	FRONT (A= 84.5MM)	54618-50Y00 54618-60005 54618-60U05 54618-D5000
CSL06012	FRONT (A= 84.5MM)	54618-D5010 54618-D5015
CSL06029	REAR (A= 175MM)	54618-58Y10 54618-58Y20 54618-58Y21 54618-58Y60

Model (Year)
100NX (B13) ALMERA I (N15) \| PULSAR ALMERA I Hatchback (N15) \| PULSAR MICRA II (K11) \| MARCH \| VERITA / MARCH PRIMERA Traveller (W10) SUNNY III (N14, B13) \| SENTRA \| PULSAR SUNNY III Hatchback (N14) \| SENTRA SUNNY III Liftback (N14)
