Rack End

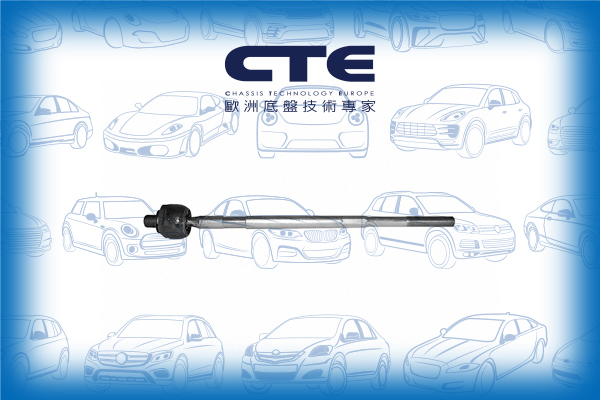

PROTON / WIRA / Rack End / D= M12X1.25 , C= M14X1.5 / CRE05015

Technical Specification Matrix

CRE05015 是 PROTON 專用的轉向舵桿 (D= M12X1.25 , C= M14X1.5)。本產品為 OEM 規格替代零件，適配原廠料號 MB 530031,PW 530031。

PARAMETER	METRIC / VALUE
Designation	Rack End
Position	D= M12X1.25 , C= M14X1.5
OE 替代料號 (Original Equipment Numbers)	MB 530031 PW 530031
Length	327 mm
Width	37 mm
Height	37 mm
Net Weight	0.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH05006L	FRONT LOWER ARM LH REAR (W/O METAL BRACKET)	30872510 MB 102653 MB 808909 MB 871429
CBH05006R	FRONT LOWER ARM RH REAR (W/O METAL BRACKET)	30872511 MB 102654 MB 808910 MB 871430
CBH05007	FRONT LOWER ARM INNER	30818467 30818467-0 30887024 MB 573524 MR 130982 MR 179479F
CBH05008	REAR LINK INNER	MR 102014
CRE05013	D= M12X1.25 , C= M16X1.5	MB 910934 MB 910961 MR 130807 MR 297969
CRE05015	D= M12X1.25 , C= M14X1.5	MB 530031 PW 530031
CS-510L	FRONT LOWER LH	MB 907115 MB 907163 MB 907165 MB 912077 MB 981787
CS-510R	FRONT LOWER RH	MB 907116 MB 907164 MB 907166 MB 912078
CS-511L	REAR AXLE LINK LH	30818091 MB 910842
CS-511R	REAR AXLE LINK RH	30818092 MB 910841
CS-512L	REAR AXLE LINK LH	30818096 MB 809220 MR 491345
CS-512R	REAR AXLE LINK RH	30818097 MB 809221 MR 491346
CS-525L	REAR LOWER LH	MB 809230 MB 809232
CS-525R	REAR LOWER RH	MB 809231 MB 809233
CSL05012	REAR (A= 114MM)	4056A037 MB 809355 MR 112394 MR 267875 MR 403771 MR 476595 PW521020
CSL05014	REAR (A= 113MM)	4056A037 MB 809355 MR 112394 MR 267875 MR 403771 MR 476595 PW521020
CTE17002	FRONT AXLE LH/ RH (C= M12X1.25)	30870695 308706951 30875012 3817 A6 4422A028 4422A054 48520-6A0A0 48520-6A0A1 510185 56820-28000 MB241982 MB489407 MB527169 MB535996 MB597605 MB598023 MB912076 MR465092 MR476457 MR485672 MR535996 MR598023 PW500414 PW510185
