Rack End

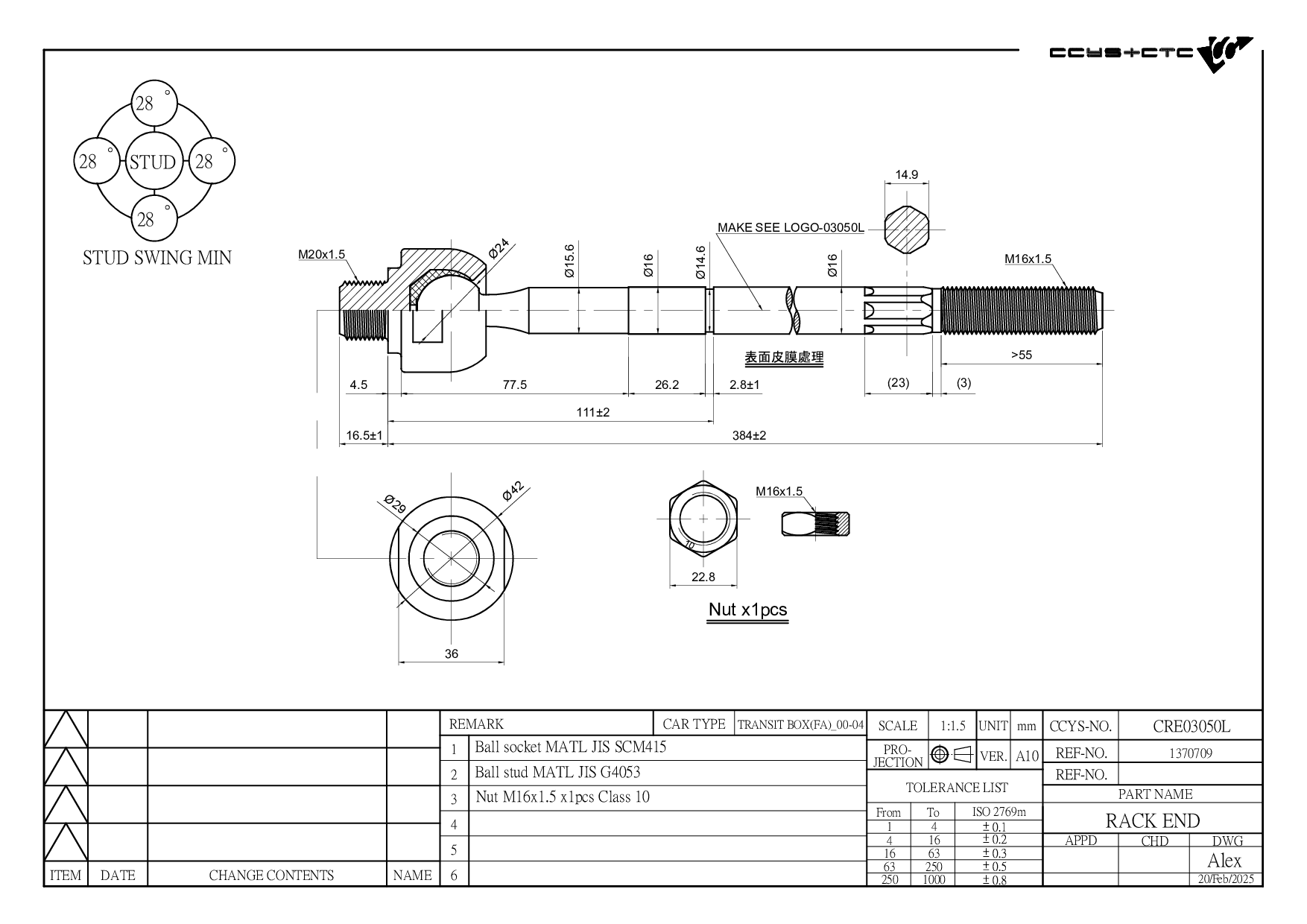

FORD / TOURNEO CONNECT | TRANSIT CONNECT / Rack End / LH D= M16X1.5 , C= M16X1.5 / CRE03050L

Technical Specification Matrix

CRE03050L 是 FORD 專用的轉向舵桿 (LH D= M16X1.5 , C= M16X1.5)。本產品為 OEM 規格替代零件，適配原廠料號 1370709,4059923,4602028,6C11-3L519-AA,YC15-3L519-AA,YC15-3L519-AB。

PARAMETER	METRIC / VALUE
Designation	Rack End
Position	LH D= M16X1.5 , C= M16X1.5
OE 替代料號 (Original Equipment Numbers)	1370709 4059923 4602028 6C11-3L519-AA YC15-3L519-AA YC15-3L519-AB
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	0.0 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03055	FRONT LOWER ARM REAR	1495717 4042024 4372132 4540787 6C16 3A262 AA YC15 3A262 AD YC15 3A262 AE YC15 3A262 AF
CRE03050L	LH D= M16X1.5 , C= M16X1.5	1370709 4059923 4602028 6C11-3L519-AA YC15-3L519-AA YC15-3L519-AB
CRE03050R	RH D= M16X1.5 , C= M20X1.5	1370710 4059924 4577976 6C11-3L519-BA YC15-3L519-BA YC15-3L519-BB
CS-345L	FRONT LOWER LH	1438318 1438350 1495667 1553251 1735890 4042023 4140394 4164521 4372131 4540775 6C113A053EA 6C113A053EB 6C113A053FA 6C113A053FB 6C113A053FC YC153A053AH YC153A053AJ YC153A053AK YC153A053AL YC153A053AM
CS-345R	FRONT LOWER RH	1438315 1438316 1495666 1553246 1735889 4042022 4140393 4164518 4372130 4540774 6C113A042EA 6C113A052EA 6C113A052EB 6C113A052FC YC153A052AH YC153A052AJ YC153A052AL YC153A052AM
CS-365L	FRONT LOWER LH (H/DUTY)	1371228 1438254 1495684 1553250 6C11 3A053 BA 6C11 3A053 BB 6C11 3A053 BC 6C11 3A053 BD
CS-365R	FRONT LOWER RH (H/DUTY)	1371231 1438253 1495683 1553239 6C11 3A052 BA 6C11 3A052 BB 6C11 3A052 BC 6C11 3A052 BD

Model (Year)
TOURNEO CONNECT \| TRANSIT CONNECT TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _) TRANSIT Platform/Chassis (FM_ _, FN_ _) TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _) TRANSIT TOURNEO Bus TRANSIT V363 Van (FCD, FDD) TRANSIT Van (FA_ _)
