Rack End

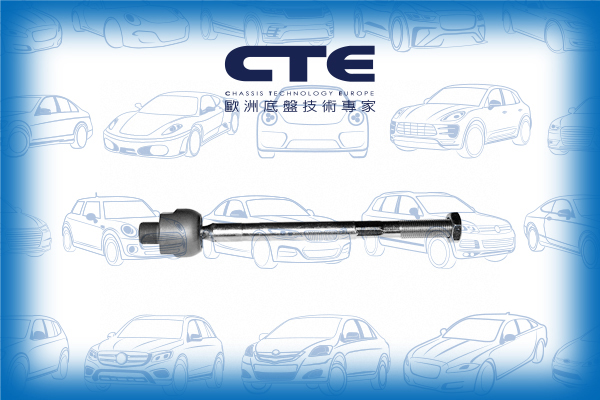

MAZDA / 929 I (LA) / Rack End / D= M14X1.5 , C= M17X1.0 / CRE03016

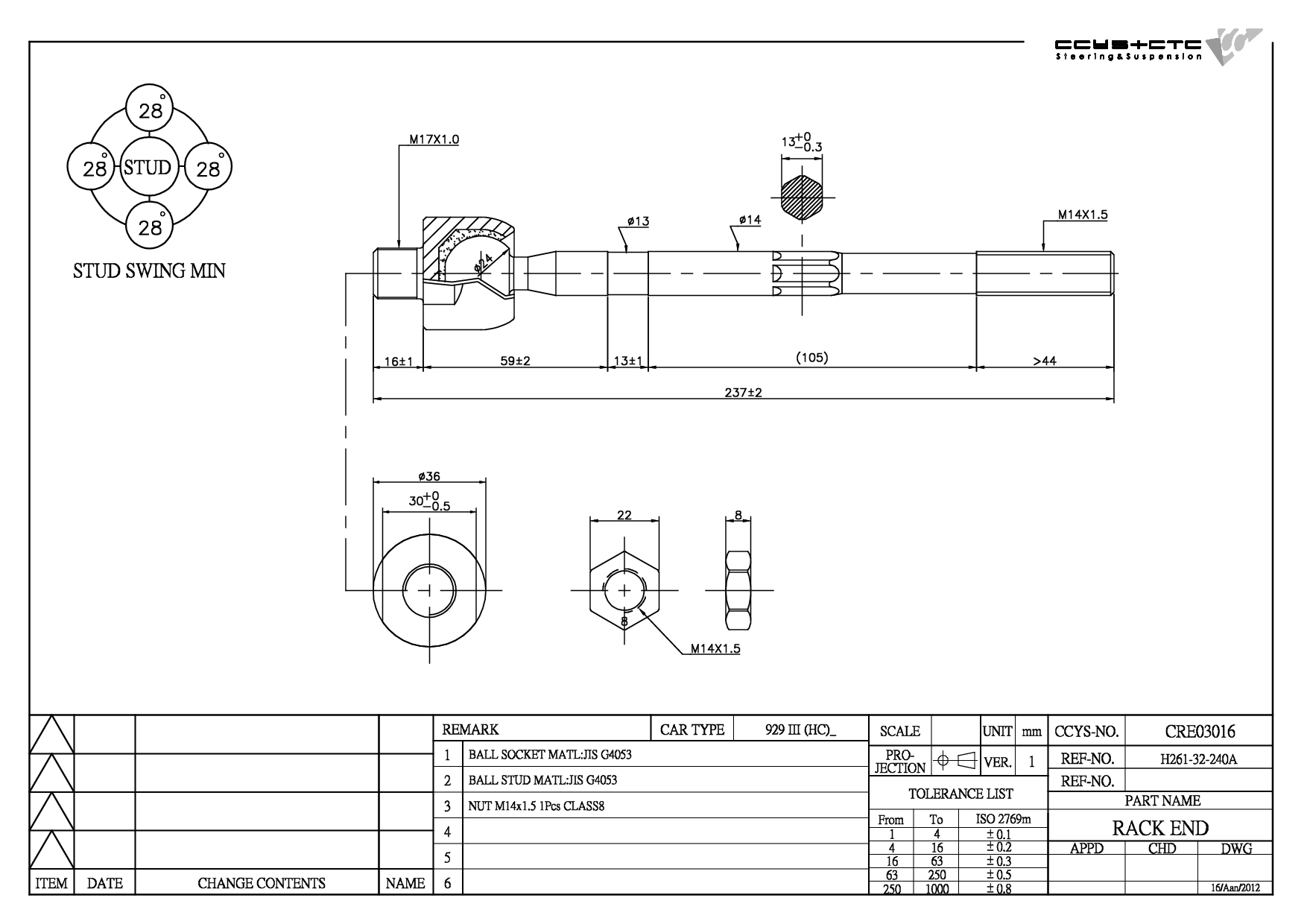

Technical Specification Matrix

CRE03016 是 MAZDA 專用的轉向舵桿 (D= M14X1.5 , C= M17X1.0)。本產品為 OEM 規格替代零件，適配原廠料號 H261-32-240A。

PARAMETER	METRIC / VALUE
Designation	Rack End
Position	D= M14X1.5 , C= M17X1.0
OE 替代料號 (Original Equipment Numbers)	H261-32-240A
Length	237 mm
Width	36 mm
Height	36 mm
Net Weight	0.4 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBJ03001	FRONT LOWER LH/ RH	0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320
CRE03016	D= M14X1.5 , C= M17X1.0	H261-32-240A

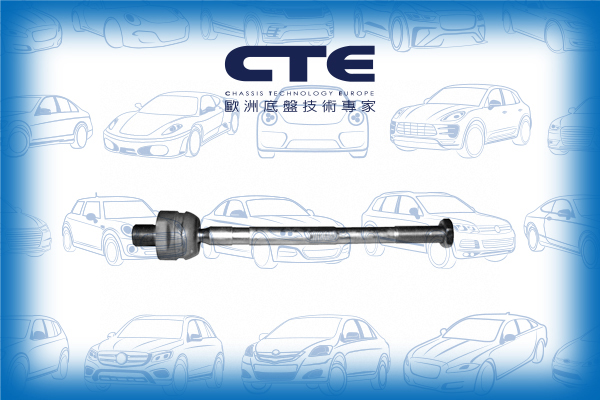

CRE03017	D= M14X1.5 , C= M17X1.0	H260-32-240A
CSL03006	FRONT	0603-34-157 0603-34-157A 0603-34-158 603-34-157 603-34-157A 603-34-158 LB82-34-153
CTE03004	FRONT AXLE LH/ RH (C= M14X1.5)	0H001-32280 0K620-32240A 1363-32510A 1391-99-322 8AH1-32-280 9922-13-020 9992-41-201 H001-99-324 H260-32-280
CTE03005	FRONT AXLE LH/ RH (C= M14X1.5)	3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ

Model (Year)
929 I (LA) 929 II (HB) 929 II Coupe (HB) 929 II Estate (HV) 929 III (HC) 929 IV (HD) \| SENTIA
