Rack End

HONDA / CITY VI Saloon (GM4, GM5, GM6, GM9, GM7) | GRACE / Rack End / FRONT AXLE LH/ RH / CRE01064

Technical Specification Matrix

CRE01064 是 HONDA 專用的轉向舵桿 (FRONT AXLE LH/ RH)。本產品為 OEM 規格替代零件，適配原廠料號 53010-T5R-003,53410-T5B-003。

PARAMETER	METRIC / VALUE
Designation	Rack End
Position	FRONT AXLE LH/ RH
OE 替代料號 (Original Equipment Numbers)	53010-T5R-003 53410-T5B-003
Length	267 mm
Width	36 mm
Height	36 mm
Net Weight	0.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH01052	FRONT LOWER REAR AXLE	51350-T5A-J01 51350-T5A-J02 51350-T5A-J11 51350-T5R-A00 51350-T5R-A01 51360-T5A-J01 51360-T5A-J02 51360-T5A-J11 51360-T5R-A00 51360-T5R-A01 51393-S0X-A01 51393-S0X-A02 51393-S3V-A01 51393-SJC-A01
CRE01064	FRONT AXLE LH/ RH	53010-T5R-003 53410-T5B-003

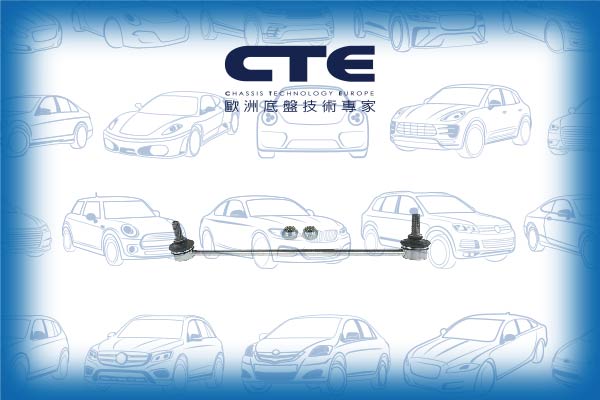

CSL01060L	FRONT AXLE LH	51325-T5A-003

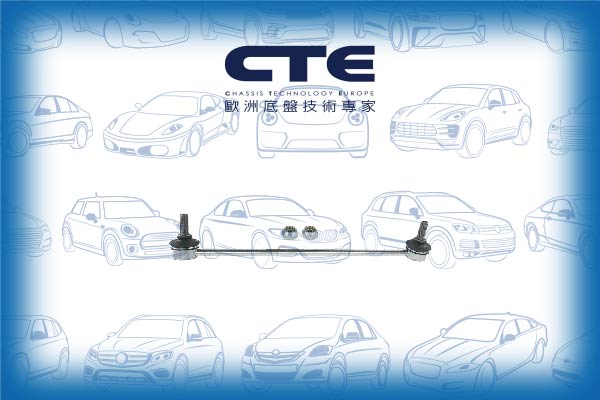

CSL01060R	FRONT AXLE RH	51320-T5A-003

Model (Year)
CITY VI Saloon (GM4, GM5, GM6, GM9, GM7) \| GRACE HR-V (RU) JAZZ IV (GK_) \| FIT JAZZ V (GR_, GS_) \| FIT
