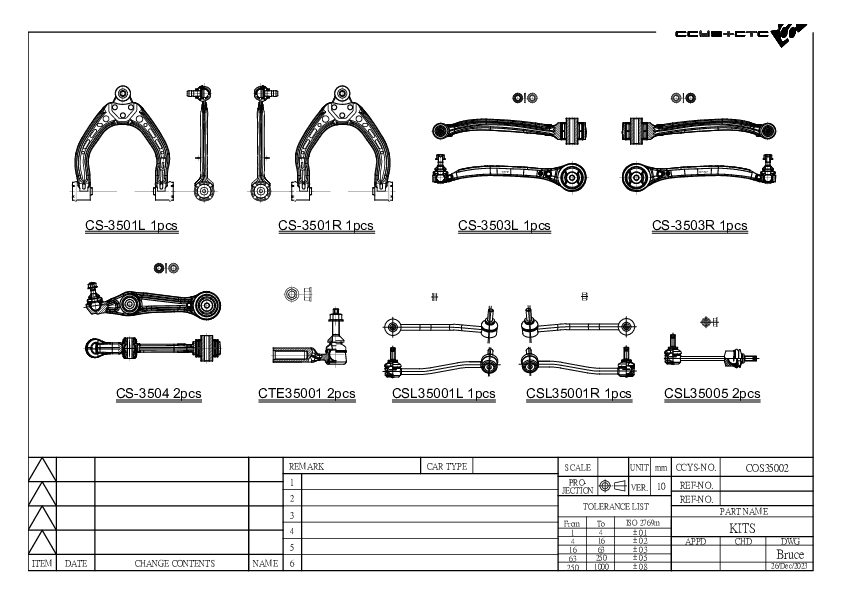

COS35002
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 17.26 kg |
REAR-WHEEL DRIVE MODEL YEAR::UNTIL 01.2021
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH35001 | FRONT UPPER ARM INNER | 1043965-00-A 1043965-00-B 1043966-00-A 1043966-00-B 6006532-00-A 6006532-00-B 6008930-00-A 6008930-00-B |
|
 |
CBH35006 | FRONT LOWER ARM INNER | 1041570-00-A 1041570-00-B 1041575-00-A 1041575-00-B 6006664-00-C 6007998-00-C |
|
 |
CBH35007 | FRONT LOWER ARM INNER | 1027351-00-C 1048951-00-A 1048951-00-B 6007997-00-D |
|
 |
CBJ35001A | FRONT UPPER LH/RH | 1043965-00-A 1043965-00-B 1043966-00-A 1043966-00-B 6006532-00-A 6006532-00-B 6008930-00-A 6008930-00-B |
|
 |
COS35002 | FRONT | ||
 |
CRE35001 | FRONT AXLE LH/RH | 1070801-00-E 1070801-00-F 1070806-00-E |
|
 |
CS-3501L | FRONT UPPER LH | 1043965-00-A 1043965-00-B 1420321-00-C 6006532-00-A 6006532-00-B |
|
 |
CS-3501R | FRONT UPPER RH | 1043966-00-A 1043966-00-B 6008930-00-A 6008930-00-B |
|
 |
CS-3503L | FRONT LOWER LH | 1041570-00-A 1041570-00-B 6007998-00-C |
|
 |
CS-3503R | FRONT LOWER RH | 1041575-00-A 1041575-00-B 6006664-00-C |
|
 |
CS-3504 | FRONT LOWER LH/RH | 1027351-00-C 1048951-00-A 1048951-00-B 6007997-00-D |
|
 |
CSL35001L | FRONT LH (A=201MM) | 6007098-00-A |
|
 |
CSL35001R | FRONT RH (A=201MM) | 6008915-00-A |
|
 |
CSL35003 | REAR | 1021422-00-B |
|
 |
CSL35004 | REAR | 6006895-00-A |
|
 |
CSL35005 | REAR(A=174MM) | 6007100-00-A |
|
 |
CSL35006 | REAR | 1041574-00-A |
|
 |
CTE35001 | FRONT AXLE LH/RH | 6007071-00-A 6007071-00-B |
|
 |
CTE35002 | FRONT LH/RH | 1027841-00-B |
| Model (Year) |
|---|
|
MODEL S (5YJS) |
