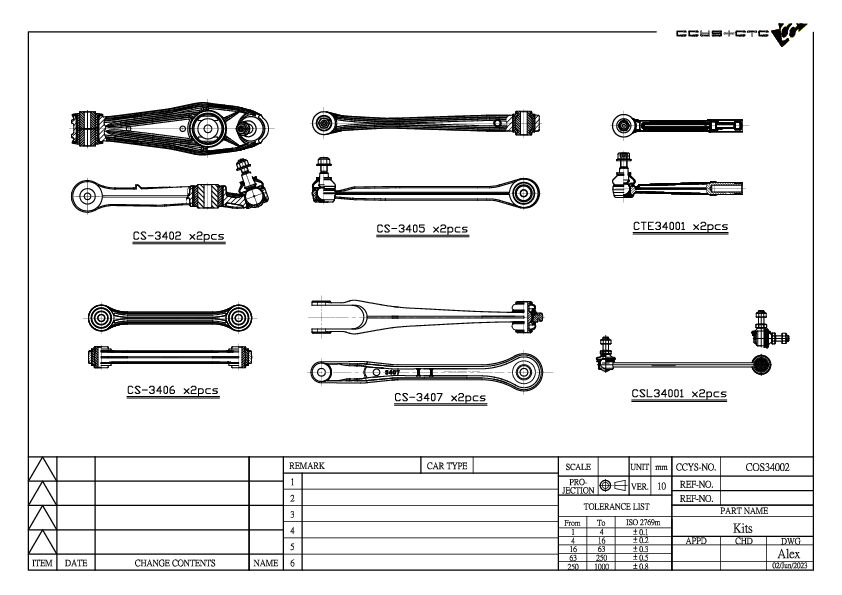

COS34002
| Designation | Repair Kit |
| Position | REAR |
| OE No. | |
| Length | 495 mm |
| Width | 270 mm |
| Height | 185 mm |
| Net Weight | 8.46 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH34002 | REAR AXLE LH/RH | 996 331 045 05 |
|
 |
CBH34005 | REAR AXLE ARM OUTER | 996 341 053 05 996 341 053 06 996 341 053 07 996 341 053 14 996 341 053 16 996 341 053 17 996 341 063 00 996 341 941 00 997 331 053 01 997 331 053 02 997 331 053 03 |
|
 |
CBH34006 | REAR AXLE ARM INNER | 996 341 053 05 996 341 053 06 996 341 053 07 996 341 053 14 996 341 053 16 996 341 053 17 996 341 063 00 996 341 941 00 997 331 053 01 997 331 053 02 997 331 053 03 |
|
 |
CBH34007 | REAR AXLE ARM | 996 331 047 02 996 331 047 03 996 331 047 05 996 331 047 06 997 331 047 00 997 331 047 01 |
|
 |
COS34002 | REAR | ||
 |
CS-3402 | REAR AXLE LH/ RH | 996 341 053 05 996 341 053 06 996 341 053 07 996 341 053 14 996 341 053 16 996 341 053 17 996 341 063 00 996 341 941 00 997 331 053 01 997 331 053 02 997 331 053 03 |
|
 |
CS-3405 | REAR AXLE LH/ RH | 996 331 045 05 996 331 045 06 996 331 045 07 996 331 045 08 996 331 045 10 996 331 045 12 997 331 045 04 |
|
 |
CS-3406 | REAR AXLE LH/ RH | 996 331 047 02 996 331 047 03 996 331 047 05 996 331 047 06 997 331 047 00 997 331 047 01 |
|
 |
CS-3407 | REAR AXLE LH/ RH | 996 341 043 03 996 341 043 06 |
|
 |
CSL34001 | FRONT AXLE LH/RH (A= 284MM) M10 X1.5 | 996 343 073 03 996 343 073 04 996 343 073 05 |
|
 |
CTE34001 | FRONT AXLE LH/ RH (C= M14X1.5) | 996 347 131 03 996 347 131 04 |
| Model (Year) |
|---|
|
911 (996) 911 Convertible (996) 911 Targa (996) |
