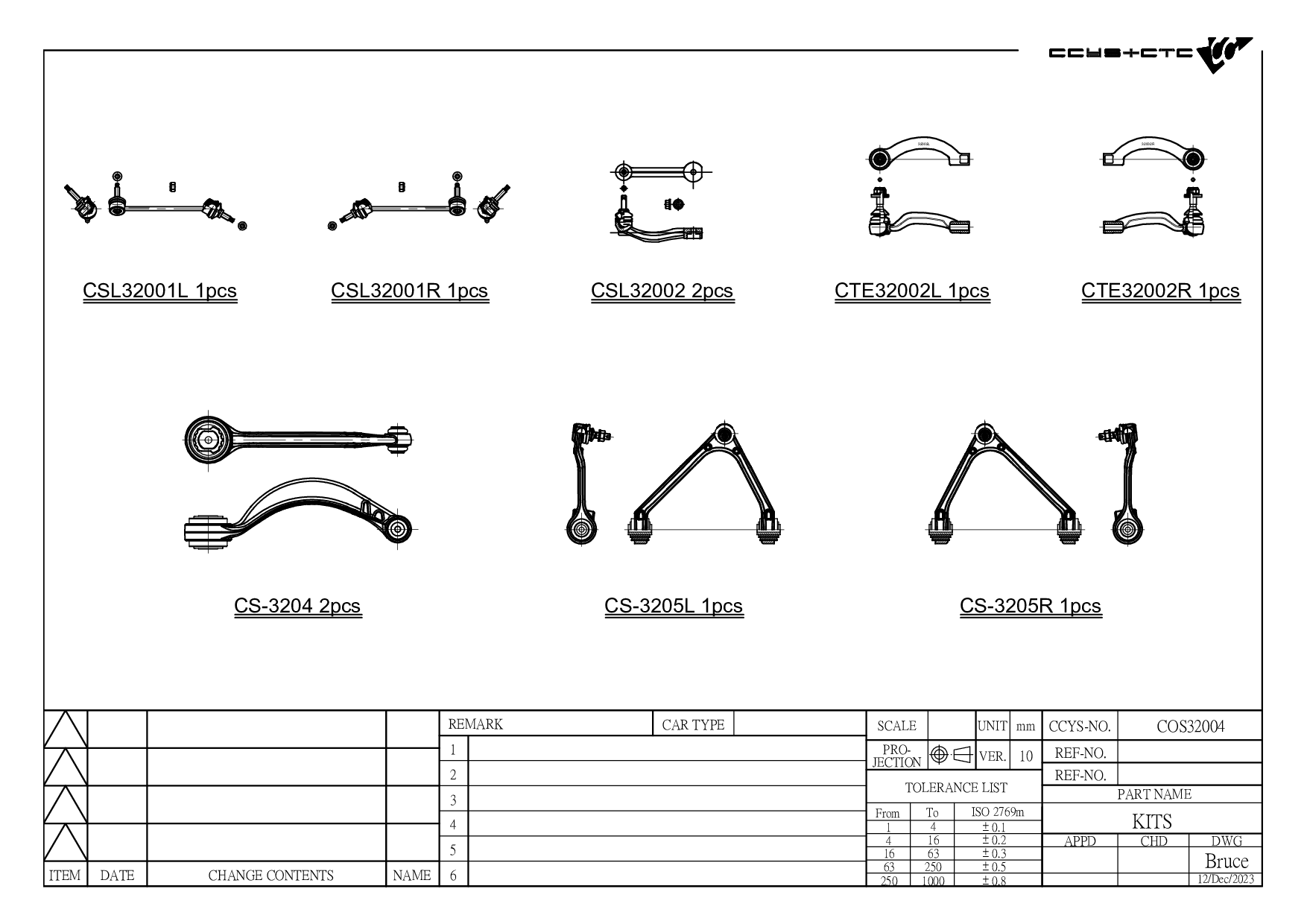

COS32004
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 450 mm |
| Width | 350 mm |
| Height | 225 mm |
| Net Weight | 10.11 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH32001 | FRONT UPPER ARM INNER | 2W933084AE 2W933084AF 2W933084AG 2W933084AH 2W933084AJ 2W933084AK 2W933084AL 2W933091AE 2W933091AF 2W933091AG 2W933091AH 2W933091AJ 2W933091AK 2W933091AL 4W433084AA 4W433091AA 4W4Z-3084-AA 4W4Z-3085-AA 6W433084AA 6W433084AC 6W433091AA 6W433091AC 6W4Z-3084 |
|
 |
CBH32004 | FRONT LOWER ARM INNER | 2W933069AE 2W933069AF 2W933069AG 2W933069AH 2W933069AJ C2C13834 C2C26267 C2C26581 C2C26851 C2C36029 C2C4471 C2Z5119 XR845722 |
|
 |
CBJ32003 | FRONT LOWER LH/ RH | C2C25788 C2C25789 |
|
 |
COS32004 | FRONT | ||
 |
CS-3204 | FRONT LOWER LH/ RH | 2W933C256AD 2W933C256AE 2W933C256AF 2W933C256BB 2W933C256BC 8X23-3C256-AC 8X23-3C256-AD C2C13829 C2C15324 C2C1801 C2C20618 C2C21984 C2C26261 C2C26835 C2C36013 C2C36868 C2C39683 C2C6500 C2Z10052 C2Z4457 T2R5102 XR845712 |
|
 |
CS-3205L | FRONT UPPER LH | C2Z2279 C2Z29117 XR822285 XR842383 XR857079 XR857653 XR857884 |
|
 |
CS-3205R | FRONT UPPER RH | C2Z2278 C2Z29115 XR822284 XR842382 XR857078 XR857652 XR857883 |
|
 |
CSL32001L | REAR LH (A= 219.3MM) | 2W935D498BB 2W935D498BD C2C18572 C2D49529 XR81693 XW435D498AB XW4Z-5C487-AB |
|
 |
CSL32001R | REAR RH (A= 219.3MM) | 2W935C486BB 2W935C486BD C2C18571 C2D49528 XR81692 XW4Z-5C486-AB |
|
 |
CSL32002 | FRONT (A= 146MM) | 2W93-5K483-AC 2W93-5K483-AD 2W93-5K483-CB C2C10793 C2C18573 C2C39468 C2D11879 C2D24220 EX53-5K483-AA GX73-3B438-AA T4N1048 XR822199 |
|
 |
CTE32002L | FRONT AXLE LH (C= M14X1.5) | 8W833C437AA 8X233290AA C2D47154 C2Z5518 |
|
 |
CTE32002R | FRONT AXLE RH (C= M14X1.5) | 8W833C367AA 8X233289AA C2D47152 C2Z5517 |
| Model (Year) |
|---|
|
XF I (X250) XF SPORTBRAKE (X250) |
