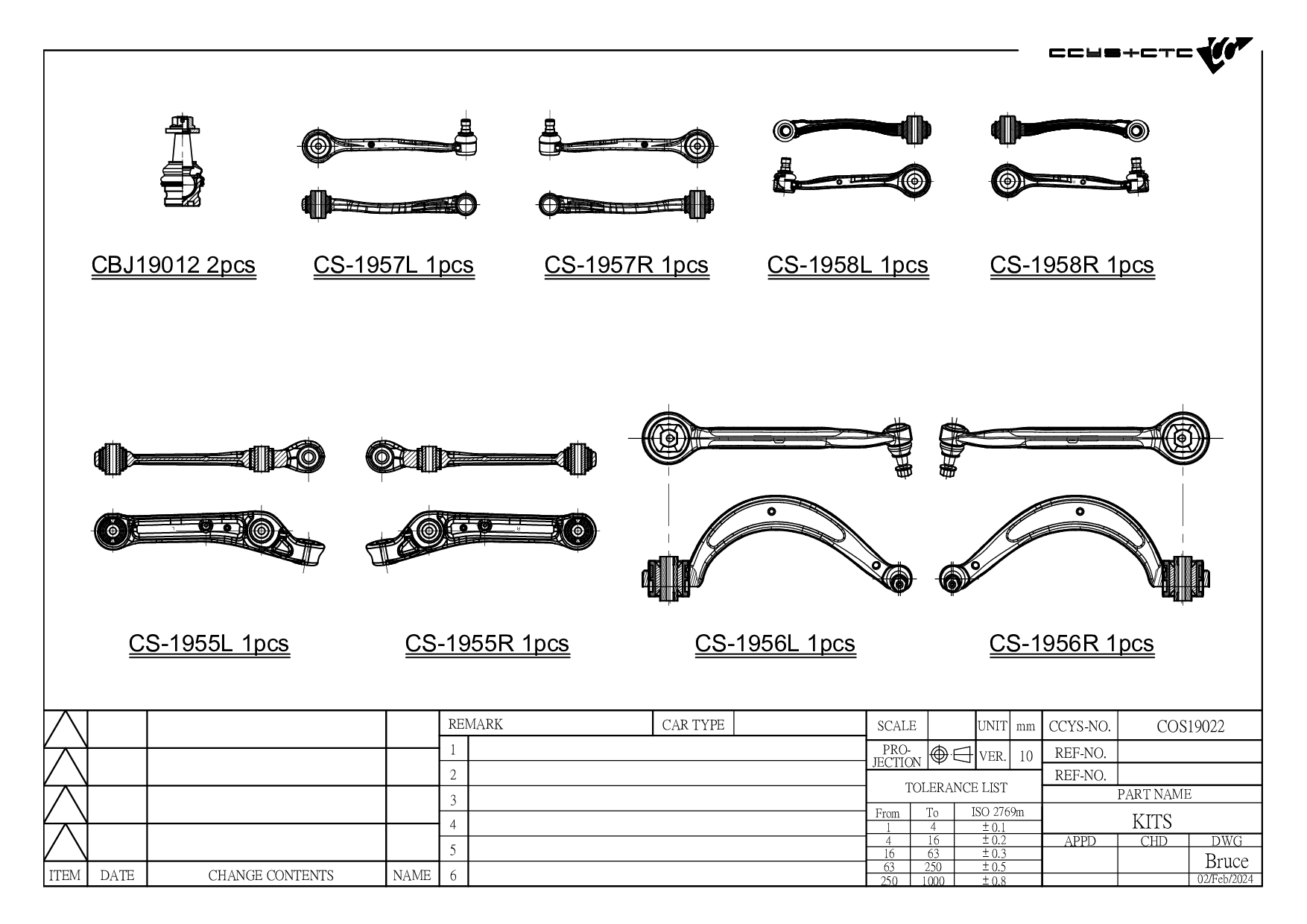

COS19022
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 11.18 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19019 | FRONT LOWER ARM INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT LOWER ARM OUTER | 80A 407 181 |
|
 |
CBH19027 | FRONT LOWER ARM REAR | 8K0 407 183 8K0 407 183D 8K0 407 183F 8K0 407 183G |
|
 |
CBH19034 | FRONT LOWER ARM | 8W0 407 693 B 8W0 407 694 B |
|
 |
CBH19035 | FRONT UPPER ARM | 4N0 407 515 8W0 407 515 |
|
 |
CBJ19012 | FRONT LOWER LH/RH | 4G0 407 689A 4G0 407 689C 8W0 407 689A 8W0 407 689B PAB 407 689 |
|
 |
COS19022 | FRONT | ||
 |
CS-1955L | FRONT LOWER LH | 8W0 407 151 A 8W0 407 151 B 8W0 407 151 C 8W0 407 151 D 8WD 407 151 |
|
 |
CS-1955R | FRONT LOWER RH | 8W0 407 152 A 8W0 407 152 B 8W0 407 152 C 8W0 407 152 D 8WD 407 152 |
|
 |
CS-1956L | FRONT LOWER LH | 8W0 407 693 A 8W0 407 693 B 8WD 407 693 |
|
 |
CS-1956R | FRONT LOWER RH | 8W0 407 694 A 8W0 407 694 B 8WD 407 694 |
|
 |
CS-1957L | FRONT UPPER LH | 8W0 407 505 A 8W0 407 505 C 8W0 407 505 E 8WD 407 505 |
|
 |
CS-1957R | FRONT UPPER RH | 8W0 407 506 A 8W0 407 506 C 8W0 407 506 E 8WD 407 506 |
|
 |
CS-1958L | FRONT UPPER LH | 8W0 407 509 A 8W0 407 509 B 8W0 407 509 E 8WD 407 509 |
|
 |
CS-1958R | FRONT UPPER RH | 8W0 407 510 A 8W0 407 510 B 8W0 407 510 E 8WD 407 510 |
|
 |
CS-1968L | FRONT LOWER LH | ||
 |
CS-1968R | FRONT LOWER RH | ||
 |
CS-1969L | FRONT LOWER LH | ||
 |
CS-1969R | FRONT LOWER RH | ||
 |
CS-1970L | FRONT UPPER LH | ||
 |
CS-1970R | FRONT UPPER RH | ||
 |
CS-1971L | FROTN UPPER LH | ||
 |
CS-1971R | FRONT UPPER RH | ||
 |
CS-1974L | FRONT UPPER LH | ||
 |
CS-1974R | FRONT UPPER RH | ||
 |
CS-1975L | FRONT UPPER LH | ||
 |
CS-1975R | FRONT UPPER RH | ||
 |
CS-1982L | FRONT LOWER LH | 8W0 407 693 A 8W0 407 693 B 8WD 407 693 |
|
 |
CS-1982R | FRONT LOWER RH | 8W0 407 694 A 8W0 407 694 B 8WD 407 694 |
| Model (Year) |
|---|
|
A4 B9 (8W2, 8WC) A4 B9 Avant (8W5, 8WD) |
