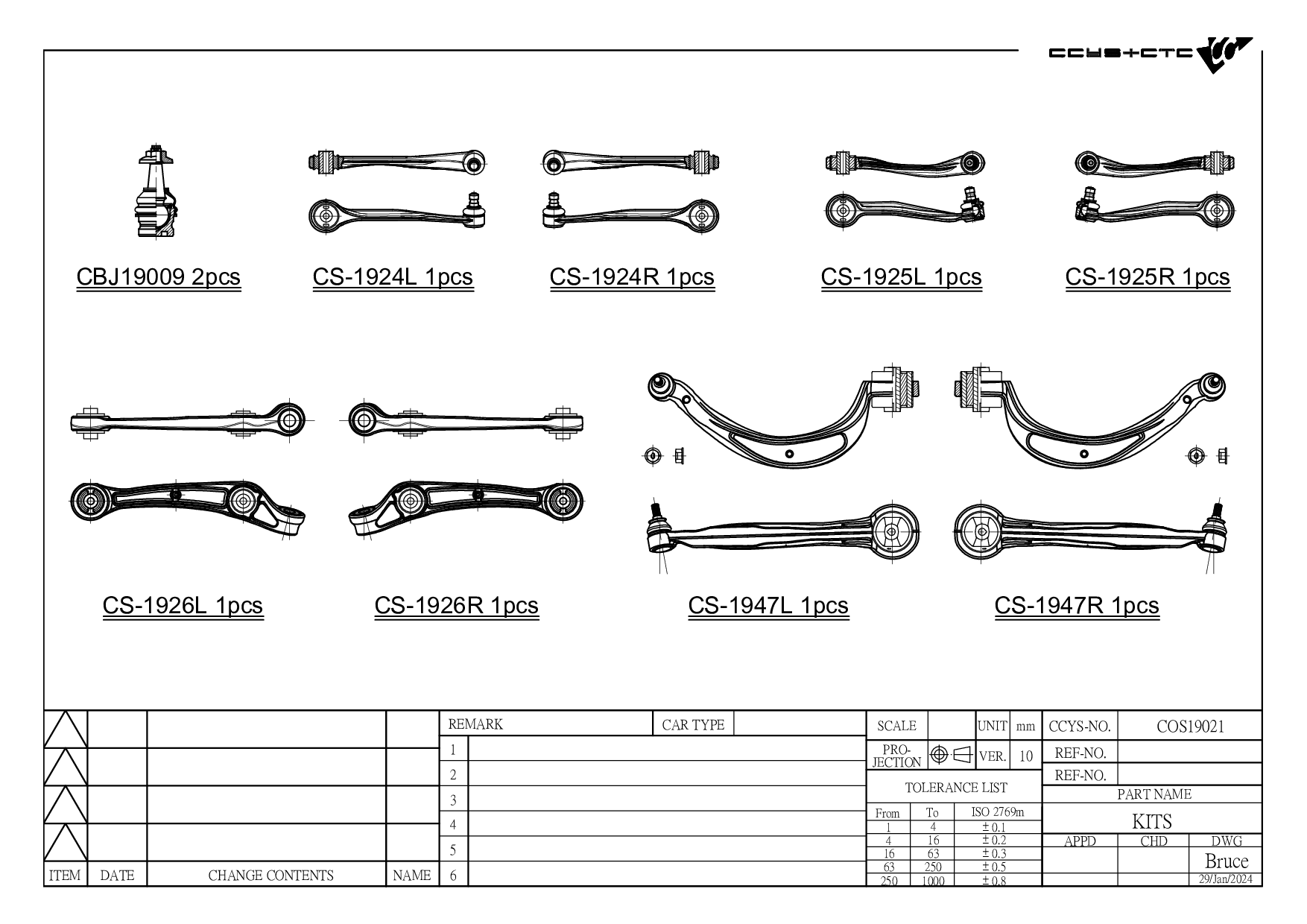

COS19021
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 10.89 kg |
Construction year to 08.2011
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19008 | FRONT LOWER ARM INNER | 4D0 407 182E 4D0 407 182G 8E0 407 182A |
|
 |
CBH19019 | FRONT LOWER ARM INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT LOWER ARM OUTER | 80A 407 181 |
|
 |
CBH19021 | FRONT LOWER ARM INNER | 8K0 407 183A 8K0 407 183B |
|
 |
CBH19027 | FRONT LOWER ARM REAR | 8K0 407 183 8K0 407 183D 8K0 407 183F 8K0 407 183G |
|
 |
CBJ19009 | FRONT LOWER LH/ RH | 4G0 407 689 8K0 407 689D 8K0 407 689E 8K0 407 689F 8K0 407 689G |
|
 |
CBJ19012 | FRONT LOWER LH/RH | 4G0 407 689A 4G0 407 689C 8W0 407 689A 8W0 407 689B PAB 407 689 |
|
 |
COS19016 | FRONT | ||
 |
COS19021 | FRONT | ||
 |
CRE19003 | D= M16X1.5 , C= M16X1.5 | 8J0 423 810 |
|
 |
CRE19004 | D= M16X1.5 , C= M16X1.5 | 4H0 422 810A |
|
 |
CS-1924L | FRONT UPPER LH | 8K0 407 505A 8K0 407 505N 8KD 407 505 |
|
 |
CS-1924R | FRONT UPPER RH | 8K0 407 506A 8K0 407 506N 8KD 407 506 |
|
 |
CS-1925L | FRONT UPPER LH | 8K0 407 509A 8K0 407 509F 8K0 407 509N 8KD 407 509 8KD 407 509A |
|
 |
CS-1925R | FRONT UPPER RH | 8K0 407 510A 8K0 407 510F 8K0 407 510N 8KD 407 510 8KD 407 510A |
|
 |
CS-1926L | FRONT LOWER LH | 8K0 407 151B 8K0 407 151C 8K0 407 151D 8K0 407 151E |
|
 |
CS-1926R | FRONT LOWER RH | 8K0 407 152B 8K0 407 152C 8K0 407 152D 8K0 407 152E |
|
 |
CS-1927L | FRONT LOWER LH(M12 X1.5) | 8K0 407 693F 8K0 407 693H 8K0 407 693K 8K0 407 693N |
|
 |
CS-1927R | FRONT LOWER RH(M12 X1.5) | 8K0 407 694F 8K0 407 694H 8K0 407 694K 8K0 407 694N |
|
 |
CS-1938L | FRONT LOWER LH(M12 X1.5) | 8K0 407 693AE 8K0 407 693R |
|
 |
CS-1938R | FRONT LOWER RH(M12 X1.5) | 8K0 407 694AE 8K0 407 694R |
|
 |
CS-1944L | FRONT LOWER LH | 8K0 407 151F 8K0 407 151G 8KD 407 151B PAC 407 151 |
|
 |
CS-1944R | FRONT LOWER RH | 8K0 407 152F 8K0 407 152G 8KD 407 152B PAC 407 152 |
|
 |
CS-1947L | FRONT LOWER LH(M14 X1.5) | 8K0 407 693 AA 8K0 407 693 AB 8K0 407 693 AC 8K0 407 693 AD 8K0 407 693 S 8K0 407 693 T 8K0 407 693Q 8R0 407 693 B |
|
 |
CS-1947R | FRONT LOWER RH(M14 X1.5) | 8K0 407 694 AA 8K0 407 694 AB 8K0 407 694 AC 8K0 407 694 AD 8K0 407 694 S 8K0 407 694 T 8K0 407 694Q 8R0 407 694 B |
|
 |
CS-1949L | REAR UPPER LH | 8K0 505 323D 8K0 505 323F 8K0 505 323H 8KD 505 323 8KD 505 323B PAB 505 323 |
|
 |
CS-1949R | REAR UPPER RH | 8K0 505 324D 8K0 505 324F 8K0 505 324H 8KD 505 324 8KD 505 324B PAB 505 324 |
|
 |
CS-1950 | REAR LOWER LH/RH | 8K0 501 529L PAB 501 529B |
|
 |
CS-1966L | FRONT LOWER LH | ||
 |
CS-1966R | FRONT LOWER RH | ||
 |
CS-1967L | FRONT LOWER LH | ||
 |
CS-1967R | FRONT LOWER RH | ||
 |
CSL19018 | FRONT (A= 170MM) | 4G0 411 317A 4H0 411 317A 4H0 411 317C 4M0 411 317 4M0 411 317D 8K0 411 317A 8K0 411 317C 8K0 411 317D 8K0 411 317D S1 8K0 411 317E 8K0 411 318E 8KD 407 317E |
|
 |
CTE19004L | FRONT AXLE LH (C= M16X1.5) | 4G0 423 811A 8K0 407 253E 8K0 407 253F 8K0 422 817A 8K0 422 817B |
|
 |
CTE19004R | FRONT AXLE RH (C= M16X1.5) | 4G0 423 812A 8K0 407 254E 8K0 407 254F 8K0 422 818A 8K0 422 818B |
| Model (Year) |
|---|
|
A4 B8 (8K2) | A4 / S4 A4 B8 Avant (8K5) |
