Repair Kit

AUDI / A6 Allroad C6 (4FH) / Repair Kit / FRONT / COS19018

Technical Specification Matrix

COS19018 是 AUDI 專用的優惠套餐 (FRONT)。本產品為 OEM 規格替代零件，適配原廠料號。

PARAMETER	METRIC / VALUE
Designation	Repair Kit
Position	FRONT
OE 替代料號 (Original Equipment Numbers)
Length	480 mm
Width	445 mm
Height	190 mm
Net Weight	12.7 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

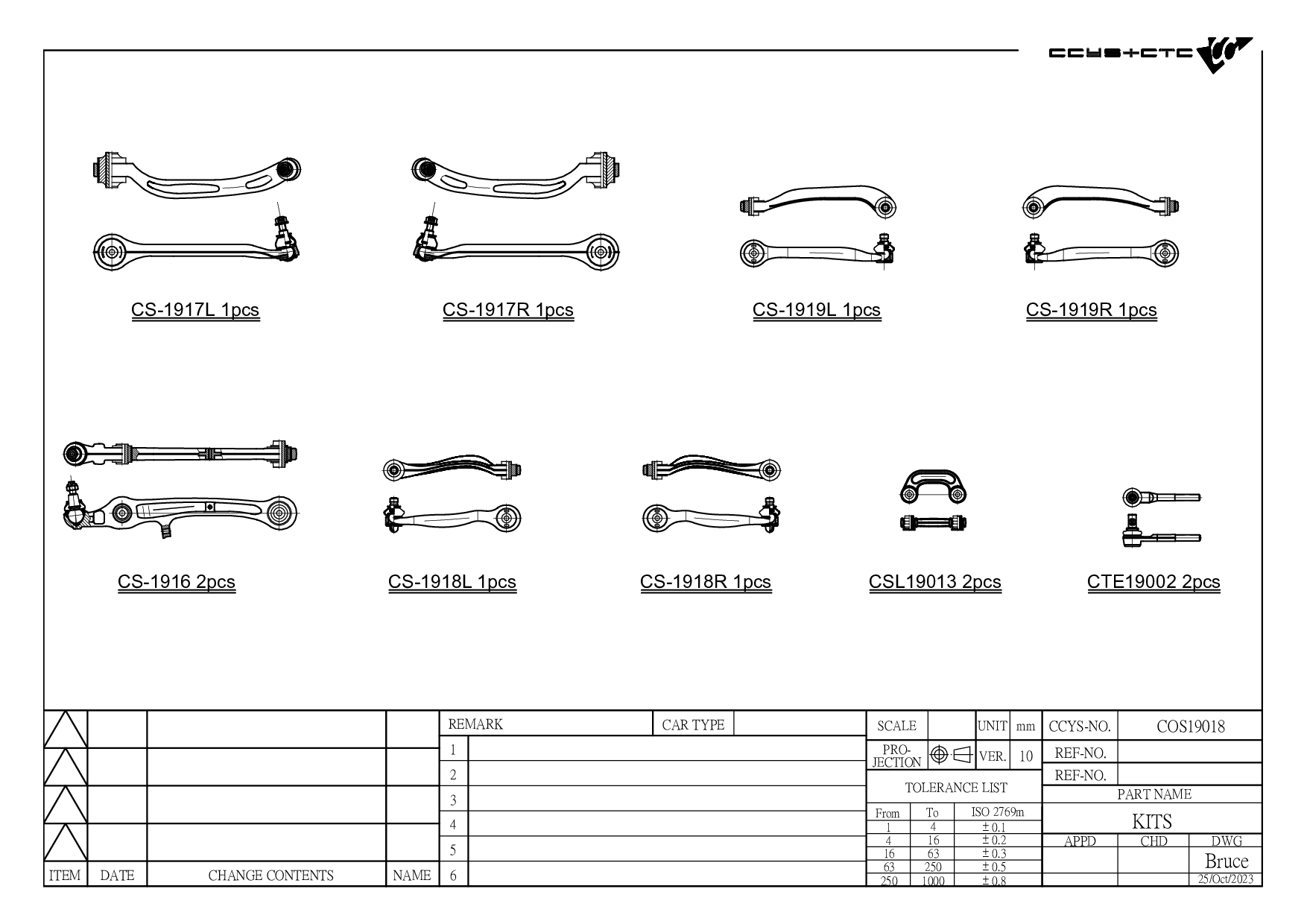

CTE No.	POSITION	OE No.
CBH19017	FRONT LOWER ARM INNER	4F0 407 183A 4F0 407 183B 4F0 407 183C 4F0 407 183E
CBH19018	FRONT UPPER ARM INNER	8D0 407 151A 8D0 407 151B 8D0 407 151C 8D0 407 515A 8D0 407 515B 8D0 407 515C
CBH19019	FRONT LOWER ARM INNER	8K0 407 182A 8K0 407 182B
CBH19020	FRONT LOWER ARM OUTER	80A 407 181
COS19018	FRONT
CS-1916	FRONT LOWER LH/ RH	4F0 407 151 4F0 407 151A 4F0 407 152 L4F0 407 151A
CS-1917L	FRONT LOWER LH	4F0 407 693 4F0 407 693B 4F0 407 693C 4F0 407 693D 4F0 407 693F 4F0 407 693G 4F0 407 693H 4F0 407 693J
CS-1917R	FRONT LOWER RH	4F0 407 694 4F0 407 694B 4F0 407 694C 4F0 407 694D 4F0 407 694F 4F0 407 694G 4F0 407 694H 4F0 407 694J
CS-1918L	FRONT UPPER LH	4E0 407 509B 4E0 407 509E 4E0 407 509G 4E0 407 509K
CS-1918R	FRONT UPPER RH	4E0 407 510B 4E0 407 510E 4E0 407 510G 4E0 407 510K
CS-1919L	FRONT UPPER LH	4E0 407 505B 4E0 407 505D 4E0 407 505E 4E0 407 505F
CS-1919R	FRONT UPPER RH	4E0 407 506B 4E0 407 506D 4E0 407 506E 4E0 407 506F
CSL19013	FRONT	4E0 411 317C 4E0 411 317D 4E0 411 317E 4E0 411 317F
CTE19002	FRONT AXLE LH/ RH (C= M14X1.5)	4B0 419 811G 4B0 419 811Q 4D0 419 811J 4F0 419 811C 4F0 419 811D 4F0 498 811 4F0 498 811A 4F0 498 811A SK 8B0 419 811G 8E0 419 811
CTE19003	FRONT AXLE LH/ RH (C= M14X1.5)	8E0 419 811B
