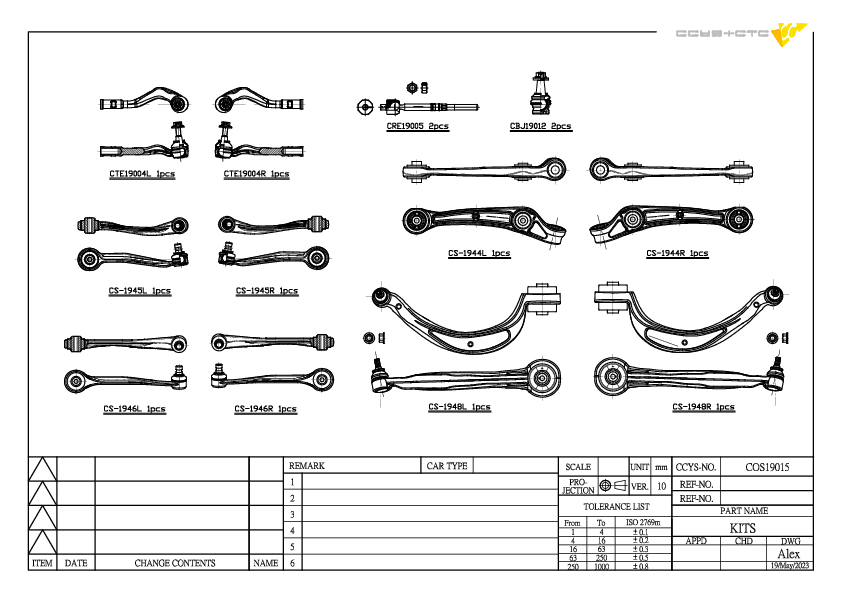

COS19015
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 480 mm |
| Width | 445 mm |
| Height | 190 mm |
| Net Weight | 13.74 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH19019 | FRONT LOWER ARM INNER | 8K0 407 182A 8K0 407 182B |
|
 |
CBH19020 | FRONT LOWER ARM OUTER | 80A 407 181 |
|
 |
CBH19032 | FRONT UPPER ARM INNER | 4GD 407 515 4H0 407 515 4H0 407 515A 4H0 407 515B |
|
 |
CBH19040 | FRONT LOWER LH/RH | 4G0 407 183 4G0 407 183A 4G0 407 183B 4H0 407 183B |
|
 |
CBJ19012 | FRONT LOWER LH/RH | 4G0 407 689A 4G0 407 689C 8W0 407 689A 8W0 407 689B PAB 407 689 |
|
 |
COS19015 | FRONT | ||
 |
CRE19005 | D= M16X1.5 , C= M16X1.5 | 4G0 423 810 4G0 423 810A |
|
 |
CS-1944L | FRONT LOWER LH | 8K0 407 151F 8K0 407 151G 8KD 407 151B PAC 407 151 |
|
 |
CS-1944R | FRONT LOWER RH | 8K0 407 152F 8K0 407 152G 8KD 407 152B PAC 407 152 |
|
 |
CS-1945L | FRONT UPPER LH | 4GD 407 509 4GD 407 509A 4GD 407 509B 8K0 407 509J 8K0 407 509M 8K0 407 509R |
|
 |
CS-1945R | FRONT UPPER RH | 4GD 407 510 4GD 407 510A 4GD 407 510B 8K0 407 510J 8K0 407 510M 8K0 407 510R |
|
 |
CS-1946L | FRONT UPPER LH | 4GD 407 505 4GD 407 505A 4GD 407 505B 8K0 407 505J 8K0 407 505M 8K0 407 505R |
|
 |
CS-1946R | FRONT UPPER RH | 4GD 407 506 4GD 407 506A 4GD 407 506B 8K0 407 506J 8K0 407 506M 8K0 407 506R |
|
 |
CS-1948L | FRONT LOWER LH | 4G0 407 693D 4G0 407 693E 4G0 407 693F 4G0 407 693G 4G0 407 693H 4G0 407 693J 4G0 407 693K 4G0 407 693L 4GD 407 693 4GD 407 693A 4GD 407 693B |
|
 |
CS-1948R | FRONT LOWER RH | 4G0 407 694D 4G0 407 694E 4G0 407 694F 4G0 407 694G 4G0 407 694H 4G0 407 694J 4G0 407 694K 4G0 407 694L 4GD 407 694 4GD 407 694A 4GD 407 694B |
|
 |
CS-1949L | REAR UPPER LH | 8K0 505 323D 8K0 505 323F 8K0 505 323H 8KD 505 323 8KD 505 323B PAB 505 323 |
|
 |
CS-1949R | REAR UPPER RH | 8K0 505 324D 8K0 505 324F 8K0 505 324H 8KD 505 324 8KD 505 324B PAB 505 324 |
|
 |
CS-1950 | REAR LOWER LH/RH | 8K0 501 529L PAB 501 529B |
|
 |
CS-1966L | FRONT LOWER LH | ||
 |
CS-1966R | FRONT LOWER RH | ||
 |
CS-1967L | FRONT LOWER LH | ||
 |
CS-1967R | FRONT LOWER RH | ||
 |
CTE19004L | FRONT AXLE LH (C= M16X1.5) | 4G0 423 811A 8K0 407 253E 8K0 407 253F 8K0 422 817A 8K0 422 817B |
|
 |
CTE19004R | FRONT AXLE RH (C= M16X1.5) | 4G0 423 812A 8K0 407 254E 8K0 407 254F 8K0 422 818A 8K0 422 818B |
| Model (Year) |
|---|
|
A6 C7 (4G2, 4GC) | A6 / S6 A6 C7 Avant (4G5, 4GD) |
