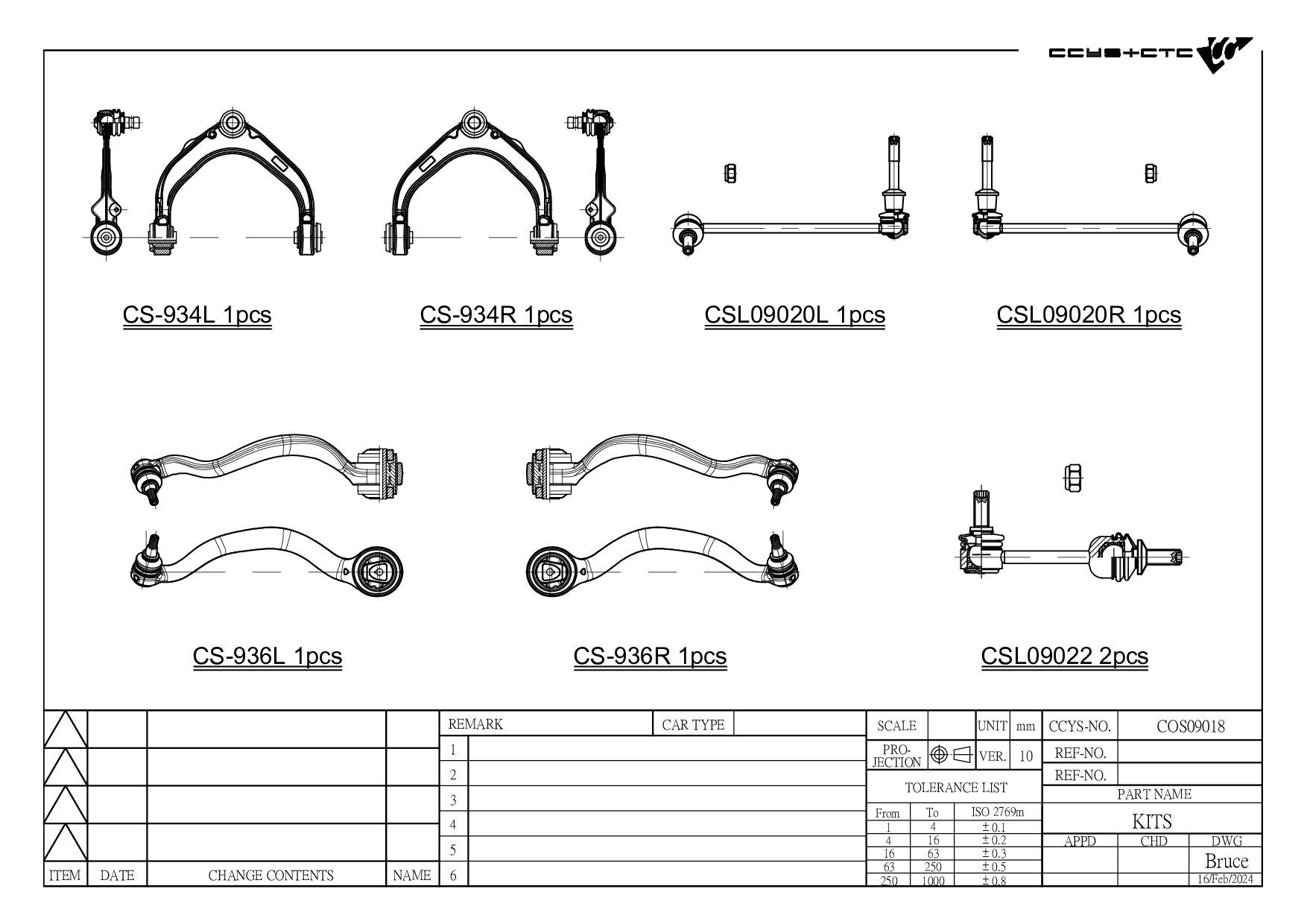

COS09018

Designation Repair Kit
Position FRONT
OE No.
Length 485 mm
Width 390 mm
Height 235 mm
Net Weight 13.72 kg
BMW X5 (F15,F85) X6 (F16,F86) For vehicles with active stabilizer control
CTE No. DESIGNATION POSITION OE NO.
CBH09024 FRONT UPPER ARM INNER
31 12 6 771 199
31 12 6 776 417
31 12 6 776 418
31 12 6 863 787
31126776417SK1
31126776418SK1
6 771 199
6 776 417
6 776 418
6 863 787
CBH09027 FRONT LOWER ARM INNER
31 10 6 778 015
31 12 6 863 171
6 778 015
6 863 171
CBH09065 FRONT LOWER ARM INNER
31 12 6 851 693
6 851 693
COS09018 FRONT
COS09019 FRONT
CS-934L FRONT UPPER LH
31 12 2 413 489
31 12 6 776 417
31 12 6 776 995
31 12 6 776 997
31 12 6 863 333
31 12 6 863 335
31 12 6 863 785
6 776 417
6 863 785
CS-934R FRONT UPPER RH
31 12 2 413 488
31 12 6 776 418
31 12 6 776 996
31 12 6 776 998
31 12 6 863 334
31 12 6 863 786
32 12 6 863 336
6 776 418
6 863 786
CS-936L FRONT LOWER LH
31 12 6 773 949
31 12 6 863 169
6 773 949
6 863 169
CS-936L-6
CS-936R FRONT LOWER RH
31 12 6 773 950
31 12 6 863 170
6 773 950
6 863 170
CS-996L FRONT LOWER LH
31 12 6 851 691
6 851 691
CS-996R FRONT LOWER RH
31 12 6 851 692
6 851 692
CSL09020L FRONT LH (A= 247MM)
37 11 6 771 929
37 11 6 857 627
37 11 6 859 653
6 771 929
6 857 627
6 859 653
CSL09020R FRONT RH (A= 247MM)
37 11 6 771 930
37 11 6 857 628
37 11 6 859 654
6 771 930
6 857 628
6 859 654
CSL09021L FRONT LH (A= 248MM)
31 35 6 773 023
31 35 6 857 623
31 35 6 859 651
6 773 023
6 857 623
6 859 651
CSL09021R FRONT RH (A= 248MM)
31 35 6 773 024
31 35 6 857 624
31 35 6 859 652
6 773 024
6 857 624
6 859 652
CSL09022 REAR (A= 160MM)
33 55 6 771 937
33 55 6 857 626
6 771 937
6 857 626
Model (Year)
X5 (F15, F85)
X6 (F16, F86)
