COS09016

數量
已無庫存。若需選購，請與客服聯繫
Designation Repair Kit
Position FRONT,REAR
OE No.
Length 495 mm
Width 490 mm
Height 240 mm
Net Weight 16.56 kg

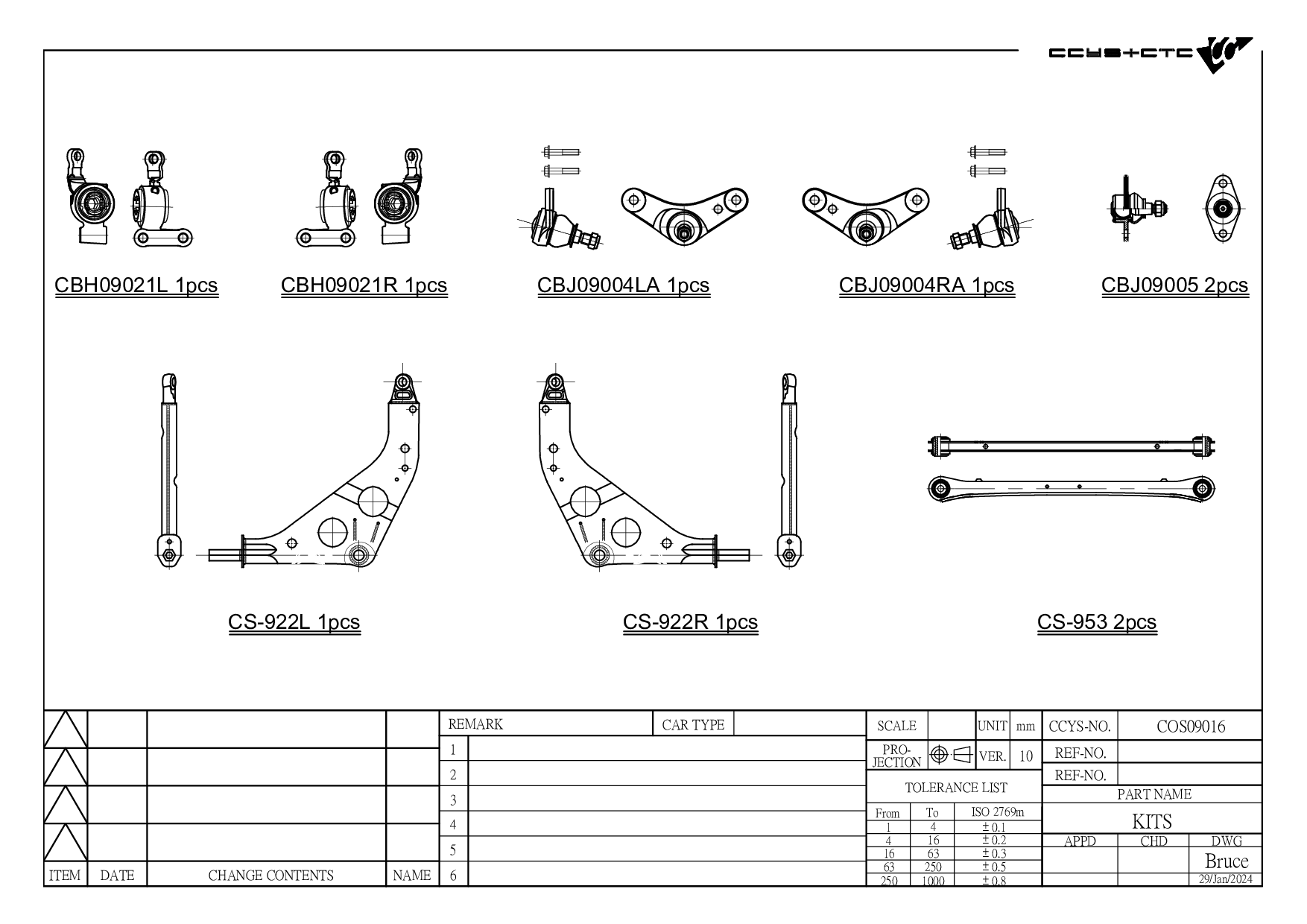

CTE No. DESIGNATION POSITION OE NO.
CBH09014 FRONT LOWER ARM REAR
31 12 6 757 551
CBH09020 FRONT LOWER ARM REAR
31 12 6 757 551
CBH09021L FRONT LOWER ARM REAR
31 12 6 757 561
6 757 561
CBH09021R FRONT LOWER ARM REAR
31 12 6 757 562
6 757 562
CBH09043 REAR AXLE
33 32 6 767 206
6 767 206
CBJ09004L FRONT LOWER LH INNER
1 489 294
31 10 6 779 437
31 12 6 753 991
31 13 1 489 294
6 753 991
6 779 437
CBJ09004LA FRONT LOWER LH INNER
1 489 294
31 10 6 779 437
31 12 6 753 991
31 13 1 489 294
6 753 991
6 779 437
CBJ09004R FRONT LOWER RH INNER
1 489 293
31 10 6 779 438
31 12 6 753 992
31 13 1 489 293
6 753 992
6 779 438
CBJ09004RA FRONT LOWER RH INNER
1 489 293
31 10 6 779 438
31 12 6 753 992
31 13 1 489 293
6 753 992
6 779 438
CBJ09005 FRONT LOWER LH/ RH OUTER
2 167 245
31 12 2 167 245
31 12 6 756 309
31 12 6 783 443
6 756 309
6 783 443
COS09016 FRONT,REAR
CRE09005 D= M14X1.5 , C= M16X1.5
32 10 6 777 522
32 11 6 761 557
32 11 6 761 558
32 11 6 777 521
6 761 557
6 761 558
6 777 521
6 777 522
CS-922L FRONT LOWER LH
1 492 144
31 12 1 492 144
31 12 4 015 707
31 12 6 753 989
31 12 6 761 409
4 015 707
6 753 989
6 761 409
CS-922R FRONT LOWER RH
1 492 143
31 12 1 492 143
31 12 4 015 708
31 12 6 753 990
31 12 6 761 410
4 015 708
6 753 990
6 761 410
CS-953 REAR AXLE LH/ RH
1 490 085
33 32 1 490 085
33 32 6 760 054
33 32 6 768 724
33 32 6 768 726
33 32 6 769 020
33 32 6 769 023
6 760 054
6 768 724
6 768 726
6 769 020
6 769 023
CSL09017 FRONT (A= 300MM)
31 35 6 759 537
31 35 6 778 831
6 759 537
6 778 831
CSL09018 REAR (A= 233MM)
33 50 6 781 133
33 55 1 507 999
CSL09019 FRONT (A= 330MM)
1 507 989
31 35 1 507 989
CSL09024 REAR (A= 233MM)
33 50 6 772 789
CSR09006L FRONT AXLE LH
32 11 6 754 563
32 11 6 777 521
32 11 6 780 785
6 754 563
6 777 521
6 780 785
CSR09006R FRONT AXLE RH
32 10 6 777 522
32 11 6 754 564
32 11 6 780 786
6 754 564
6 777 522
6 780 786
CTE09006L FRONT AXLE LH (C= M14X1.5)
32 21 6 754 565
32 21 6 761 559
6 754 565
CTE09006R FRONT AXLE RH (C= M14X1.5)
32 21 6 754 566
32 21 6 761 560
6 754 566
Model (Year)
MINI (R50, R53)
