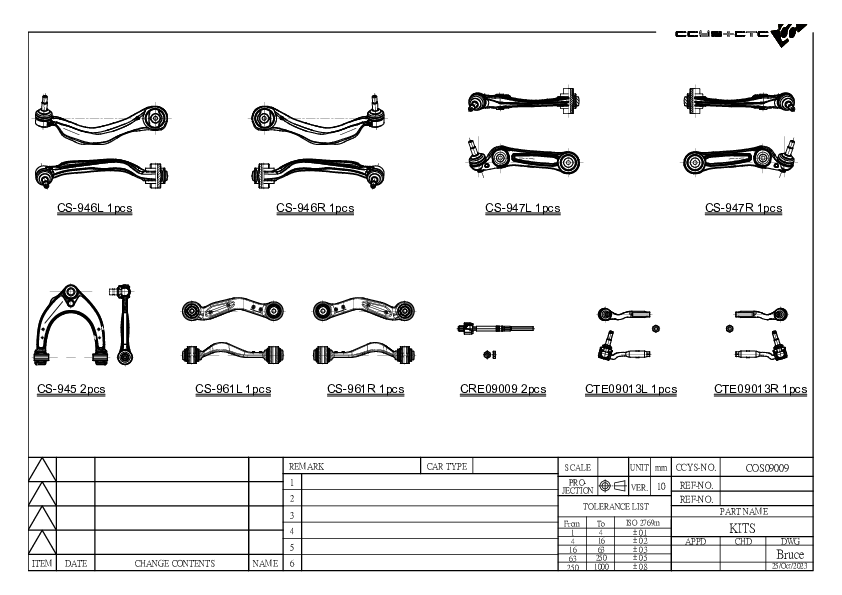

Repair Kit/BMW/5 (F10)/6 Coupe (F13)

COS09009

Designation Repair Kit
Position FRONT,REAR
OE No.
Length 495 mm
Width 490 mm
Height 240 mm
Net Weight 17.38 kg
CTE No. DESIGNATION POSITION OE NO.
CBH09034 FRONT UPPER ARM INNER
31 10 6 881 320
31 12 6 775 981
6 775 981
CBH09035 FRONT UPPER ARM INNER
31 12 6 775 979
6 775 979
CBH09036 FRONT LOWER ARM INNER
31 12 6 775 980
31 12 6 791 455
6 775 980
6 791 455
CBH09037 FRONT LOWER ARM OUTER
31 10 6 784 569
31 12 6 784 569
6 784 569
CBH09060 REAR UPPER LH/RH
33 32 6 775 902
COS09009 FRONT,REAR
CRE09009 D= M14X1.5 , C= M18X1.5
32 10 6 784 716
32 10 6 784 719
32 10 6 784 792
6 784 716
6 784 719
6 784 792
CS-945 FRONT UPPER LH/ RH
2 450 817
31 12 2 450 817
31 12 6 775 967
31 12 6 779 871
31 12 6 779 908
31 12 6 854 613
31 12 6 854 614
31 12 6 857 516
6 775 967
6 779 871
6 779 908
6 854 613
6 854 614
6 857 516
CS-946L FRONT UPPER LH
31 12 6 775 971
6 775 971
CS-946R FRONT UPPER RH
31 12 6 775 972
6 775 972
CS-947L FRONT LOWER LH
2 450 813
31 12 2 450 813
31 12 6 794 203
6 794 203
CS-947L-6 FRONT LOWER LH
2 450 813
31 12 2 450 813
31 12 6 794 203
6 794 203
CS-947R FRONT LOWER RH
2 450 814
31 12 2 450 814
31 12 6 794 204
6 794 204
CS-947R-6 FRONT LOWER RH
2 450 814
31 12 2 450 814
31 12 6 794 204
6 794 204
CS-960 REAR UPPER LH/RH
33 32 6 775 902
6 775 902
CS-978 FRONT UPPER LH/ RH
CS-979 FRONT UPPER LH/ RH
CSL09027 FRONT AXLE LH/RH
31 35 6 777 319
6 777 319
CSR09010L FRONT AXLE LH
32 10 6 784 716
6 784 716
CSR09010R FRONT AXLE RH
32 10 6 784 719
6 784 719
CTE09013L FRONT AXLE LH (C= M14X1.5)
32 10 6 784 790
6 784 790
CTE09013R FRONT AXLE RH (C= M14X1.5)
32 10 6 784 796
6 784 796
Model (Year)
5 (F10)
6 Coupe (F13)
