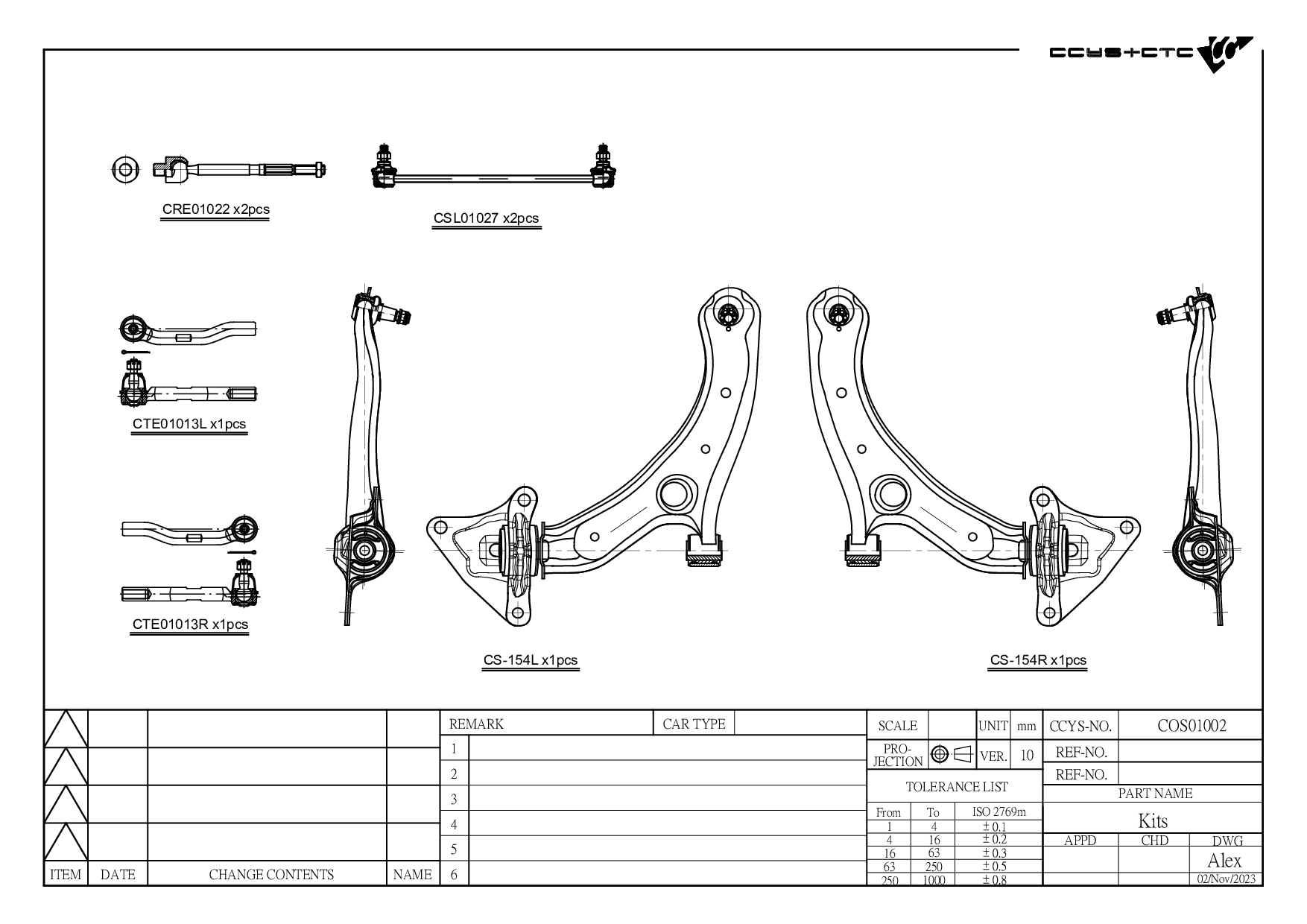

COS01002
| Designation | Repair Kit |
| Position | FRONT |
| OE No. | |
| Length | 525 mm |
| Width | 515 mm |
| Height | 223 mm |
| Net Weight | 14.97 kg |
| CTE No. | DESIGNATION | POSITION | OE NO. | |
|---|---|---|---|---|
 |
CBH01046L | FRONT LOWER ARM LH REAR | 51360-TF0-020 51360-TF0-030 51360-TG0-T02 51360-TH9-000 |
|
 |
CBH01046R | FRONT LOWER ARM RH REAR | 51350-TF0-030 51350-TG0-T02 51350-TG5-C01 51350-TH9-000 |
|
 |
CBH01047 | FRONT LOWER ARM INNER | 40170-20500 40170-20700 40170-31400 40170-31500 40170-32700 40170-32800 51350-SYY-010 51350-T5A-J00 51350-T5A-J01 51350-T5A-J02 51350-T5A-J11 51350-T5R-A01 51350-T7A-003 51350-T7A-901 51350-T7W-A00 51350-T7W-A50 51350-T8M-G00 51350-TF0-030 51350-TF0-H03 5 |
|
 |
COS01002 | FRONT | ||
 |
CRE01022 | D= M14X1.5 , C= M18X1.5 | 53010-TF0-003 |
|
 |
CS-154L | FRONT LOWER LH | 51360-SYY-010 51360-TF0-020 51360-TF0-030 51360-TG0-T02 51360-TG5-C01 51360-TH9-000 51360-TK6-A01 |
|
 |
CS-154R | FRONT LOWER RH | 51350-SYY-010 51350-TF0-020 51350-TF0-030 51350-TG0-T02 51350-TG5-C01 51350-TH9-000 51350-TK6-A01 |
|
 |
CSL01027 | FRONT (A= 325MM) | 51320-TF0-003 51320-TG0-T01 |
|
 |
CTE01013L | FRONT AXLE LH (C= M14X1.5) | 53560-TF0-003 |
|
 |
CTE01013R | FRONT AXLE RH (C= M14X1.5) | 53540-TF0-003 |
| Model (Year) |
|---|
|
INSIGHT (ZE_) JAZZ III (GE_, GG_, GP_, ZA_) JAZZ III (GE_, GG_, GP_, ZA_) | FIT |
