Ball Joint

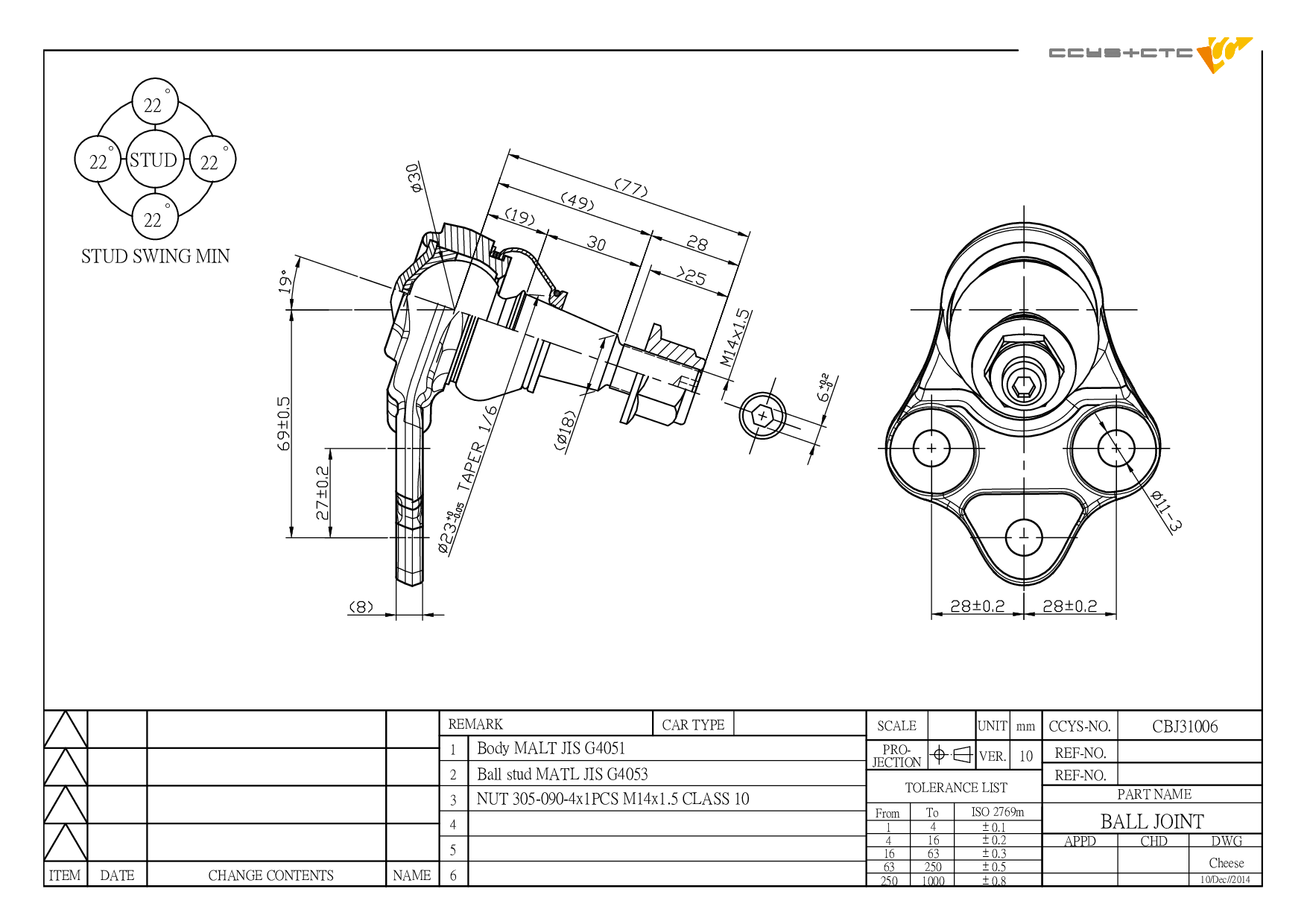

LAND ROVER / FREELANDER 2 (L359) | LR2 / Ball Joint / FRONT LOWER LH/ RH / CBJ31006

Technical Specification Matrix

CBJ31006 是 LAND ROVER 專用的球接頭 (FRONT LOWER LH/ RH)。本產品為 OEM 規格替代零件，適配原廠料號 6G9N3395BB,LR000068,LR002624,LR002625,LR007205,LR007206。

PARAMETER	METRIC / VALUE
Designation	Ball Joint
Position	FRONT LOWER LH/ RH
OE 替代料號 (Original Equipment Numbers)	6G9N3395BB LR000068 LR002624 LR002625 LR007205 LR007206
Length	83 mm
Width	110 mm
Height	96 mm
Net Weight	0.7 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03067L	FRONT LOWER ARM LH REAR	1888630 31262475 31340128 31387571 31429321 7G9J3A262AB
CBH03067R	FRONT LOWER ARM RH REAR	1883048 31262473 31340127 31387572 31429320 7G9J3A262BB
CBH17030	FRONT LOWER ARM INNER	1507181 1507182 31200775 31200776 31262473 31262475 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 31340127 31340128 31429320 31429321 7G9N 3A052 BB 7G9N 3A053 BB LR007205 LR007206
CBH31023	REAR AXLE LH/RH
CBH31028	REAR AXLE ARM
CBH31029	REAR AXLE ARM
CBJ31006	FRONT LOWER LH/ RH	6G9N3395BB LR000068 LR002624 LR002625 LR007205 LR007206
CBJ31006A	FRONT LOWER LH/ RH	6G9N3395BB LR000068 LR002624 LR002625 LR007205 LR007206
CRE03081	FRONT AXLE LH/ RH	7G913280AA
CRE17028	D= M18X1.5 , C= M16X1.5	1433271 1596574 30776250 31280002 31280658 31451035 6G913280AA 6G913280AB LR016869
CS-3112L	FRONT LOWER LH	6G9N3A053EK 6G9N3A053EL LR000068 LR002625 LR007206
CS-3112R	FRONT LOWER RH	6G9N3A052EK 6G9N3A052EL LR002624 LR007205
CS-3118	REAR AXLE LH/RH	LR002575 LR029576 LR032308
CS-3119	REAR AXLE LH/RH	LR002576 LR068326
CS-3142L	REAR LOWER LH	6H525B765AD LR001176
CS-3142R	REAR LOWER RH	6H525B764AD LR001175
CSL31014	FRONT AXLE LH/RH	6G9N3B438DC LR002626
CSL31015	REAR AXLE LH/RH	6H525C486AB LR002876
CTE17015L	FRONT AXLE LH	1433274 30776249 31280000 31302344 6G91-3290-AA LR002610
CTE17015R	FRONT AXLE RH	1433273 30776248 31280001 31302345 6G91-3289-AA LR002609
