Ball Joint

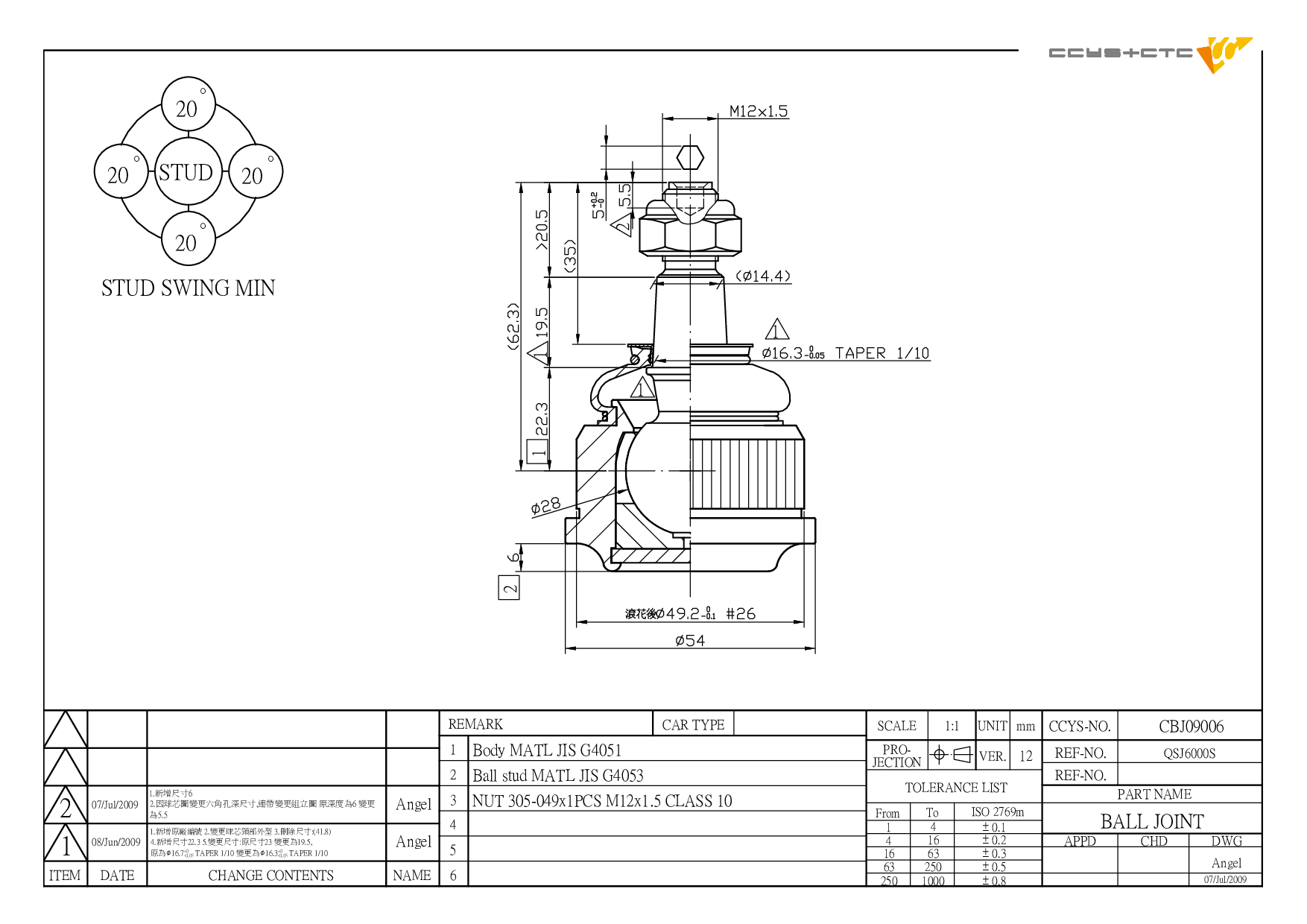

BMW / 3 (E36) / Ball Joint / FRONT LOWER LH/ RH OUTER / CBJ09006

Name: CBJ09006
Brand: CTE
SKU: CBJ09006
Price: 501.00 TWD
Availability: InStock

BMW (E36) for vehicles with heavy duty suspension

Technical Specification Matrix

CBJ09006 是 BMW 專用的球接頭 (FRONT LOWER LH/ RH OUTER)。本產品為 OEM 規格替代零件，適配原廠料號 31 12 1 096 685,31 12 1 140 398,31 12 6 758 510。

PARAMETER	METRIC / VALUE
Designation	Ball Joint
Position	FRONT LOWER LH/ RH OUTER
OE 替代料號 (Original Equipment Numbers)	31 12 1 096 685 31 12 1 140 398 31 12 6 758 510
Length	0 mm
Width	0 mm
Height	0 mm
Net Weight	0.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH09010	FRONT LOWER ARM LH REAR	31 12 4 004 359 4 004 359
CBH09011	FRONT LOWER ARM RH REAR	31 12 4 004 360 4 004 360
CBJ09001	FRONT LOWER LH/ RH INNER	1 126 253 1 126 296 1 139 131 31 12 1 126 253 31 12 1 126 296 31 12 1 139 131
CBJ09003	FRONT LOWER LH/ RH OUTER	1 096 685 1 140 398 31 12 1 096 685 31 12 1 140 398 31 12 6 758 510 6 758 510
CBJ09006	FRONT LOWER LH/ RH OUTER	31 12 1 096 685 31 12 1 140 398 31 12 6 758 510
CRE09002	D= M14X1.5 , C= M18X1.5	1 136 133 32 11 1 136 133
CS-909L	FRONT LOWER LH	1 094 275 1 136 529 1 140 399 1 140 957 2 339 997 31 12 1 094 275 31 12 1 136 529 31 12 1 140 399 31 12 1 140 957 31 12 2 339 997 31 12 6 758 513 31 12 6 758 515 6 758 513 6 758 515
CS-909R	FRONT LOWER RH	1 094 276 1 136 530 1 140 400 1 140 958 2 339 996 31 12 1 094 276 31 12 1 136 530 31 12 1 140 400 31 12 1 140 958 31 12 2 339 996 31 12 6 758 514 31 12 6 758 516 6 758 514 6 758 516
CSL09003	FRONT (A= 70MM)	1 091 764 1 127 689 1 128 737 31 35 1 091 764 31 35 1 127 689 31 35 1 128 737
CSL09005	REAR (A= 60MM)	1 131 131 1 135 307 33 55 1 131 131 33 55 1 135 307
CSR09002L	FRONT AXLE LH	1 139 315 1 139 317 32 11 1 139 315 32 11 1 139 317
CSR09002R	FRONT AXLE RH	1 139 316 32 11 1 139 316
CTE09002L	FRONT AXLE LH (C= M14X1.5)	1 139 313 32 11 1 139 313
CTE09002R	FRONT AXLE RH (C= M14X1.5)	1 139 314 32 11 1 139 314
