Ball Joint

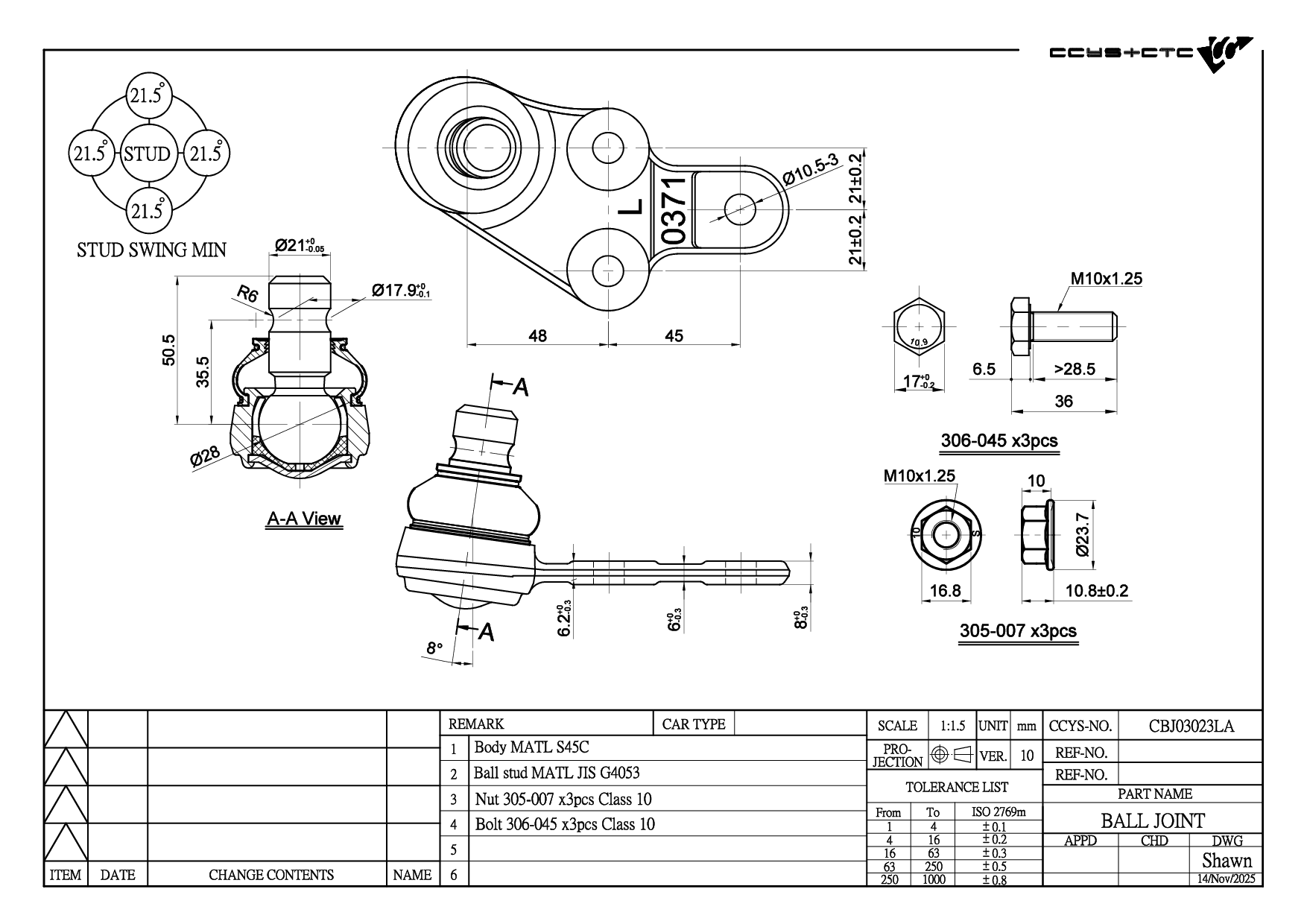

FORD / KUGA II (DM2) | ESCAPE / KUGA | ESCAPE / Ball Joint / FRONT LOWER LH / CBJ03023LA

Technical Specification Matrix

CBJ03023LA 是 FORD 專用的球接頭 (FRONT LOWER LH)。本產品為 OEM 規格替代零件，適配原廠料號 1 781 660,1793237,CV61 3A424 AAC,CV61-6A424-AAB。

PARAMETER	METRIC / VALUE
Designation	Ball Joint
Position	FRONT LOWER LH
OE 替代料號 (Original Equipment Numbers)	1 781 660 1793237 CV61 3A424 AAC CV61-6A424-AAB
Length	138 mm
Width	81 mm
Height	70 mm
Net Weight	0.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03069	FRONT LOWER ARM INNER	1781658 1781660 1793236 1793237 B32H-34-300 B32H-34-300A B32H-34-300B B32H-34-300C B32H-34-300D B32H-34-300E B32H-34-350 B32H-34-350A B32H-34-350B B32H-34-350C B32H-34-350D B32H-34-350E BP4K-34-300A BP4K-34-300B BP4K-34-300C BP4K-34-300D BP4K-34-300E BP4K
CBH03083	FRONT LOWER ARM REAR	1 781 658 1 781 660 1793236 1793237 1809551 B39D-34-300 B39D-34-350 BBM2-34-300 BBM2-34-300A BBM2-34-350 BBM2-34-350A CV61 3A423 AAC CV61 3A424 AAC CV61-3A262-AAA CV61-3A423-AAB CV61-3A424-AAB
CBJ03023LA	FRONT LOWER LH	1 781 660 1793237 CV61 3A424 AAC CV61-6A424-AAB
CBJ03023RA	FRONT LOWER RH	1 781 658 1793236 CV61 3A423 AAC CV61-3A423-AAB
CRE03074	FRONT AXLE LH/ RH	AV6Z3280E
CS-371L	FRONT LOWER LH	1 781 660 1793237 CV61 3A424 AAC CV61-3A424-AAB
CS-371R	FRONT LOWER RH	1 781 658 1793236 CV61 3A423 AAC CV61-3A423-AAB
CSL03038	FRONT (A= 306MM)	1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D
