Ball Joint

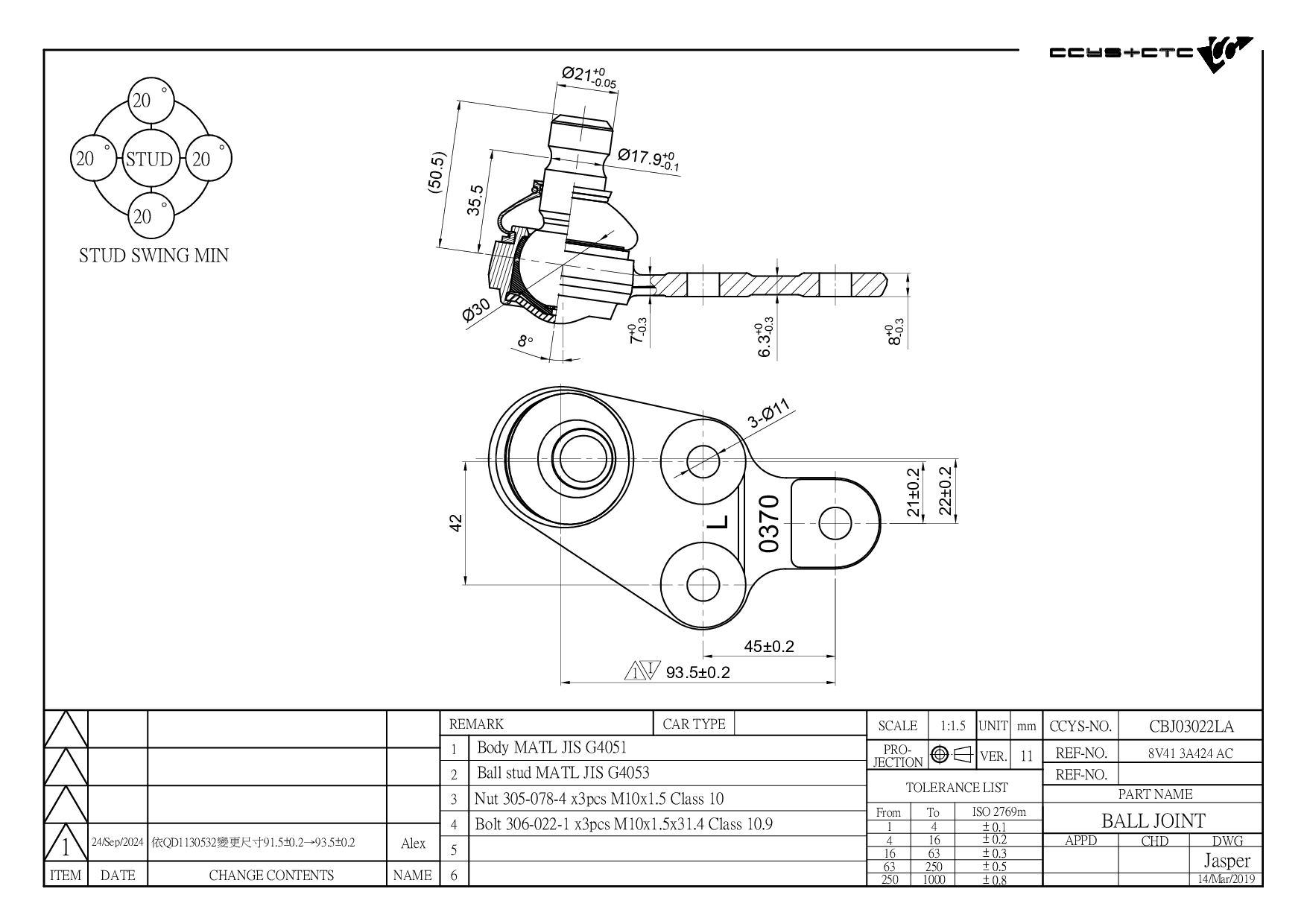

FORD / KUGA I / Ball Joint / FRONT LOWER LH / CBJ03022LA

Technical Specification Matrix

CBJ03022LA 是 FORD 專用的球接頭 (FRONT LOWER LH)。本產品為 OEM 規格替代零件，適配原廠料號 1502087,1723324,8V41 3A424 AB,8V41 3A424 AC。

PARAMETER	METRIC / VALUE
Designation	Ball Joint
Position	FRONT LOWER LH
OE 替代料號 (Original Equipment Numbers)	1502087 1723324 8V41 3A424 AB 8V41 3A424 AC
Length	136 mm
Width	82 mm
Height	98 mm
Net Weight	0.7 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03061	FRONT LOWER ARM INNER	4M51-3063-AA
CBH17035	FRONT LOWER ARM REAR
CBJ03022LA	FRONT LOWER LH	1502087 1723324 8V41 3A424 AB 8V41 3A424 AC
CBJ03022RA	FRONT LOWER RH	1502086 1723323 8V41 3A423 AB 8V41 3A423 AC
CS-370L	FRONT LOWER LH	1502087 1723324 8V41 3A424 AB 8V41 3A424 AC
CS-370R	FRONT LOWER RH	1502086 1723323 8V41 3A423 AB 8V41 3A423 AC
CSL03038	FRONT (A= 306MM)	1223792 1230909 1686594 1762149 1851900 31277652 31340273 3M513B438AA 3M513B438AB 8623576 AV61-3B438-AA AV61-3B438-BA B37F-34-170A BP4K-34-170 BP4K-34-170A BP4K-34-170B BP4K-34-170C BP4K-34-170D
CSL03048	REAR (A= 179MM)	1377349 1377398 1377416 1425853 1502681 1783320 30736875 30736947 30736948 30760678 31429561 31451817 31476579 6G915C486XAA 6G915C486XAB 8V41-5C486-AA 8V4Z-5C486-A CV615C486AAB CV6Z-5C486-B
