Rubber Bushing

LAND ROVER / DISCOVERY V (L462) / Rubber Bushing / FRONT LOWER ARM INNER / CBH31021

Name: CBH31021
Brand: CTE
SKU: CBH31021
Price: 501.00 TWD
Availability: InStock

Land Rover Range Rover IV (L405) Production no. from EA000001, Model Year from 2013, (L494) Model Year from 2014

Rubber Bushing/LAND ROVER/RANGE ROVER IV (L405)/RANGE ROVER SPORT II (L494)

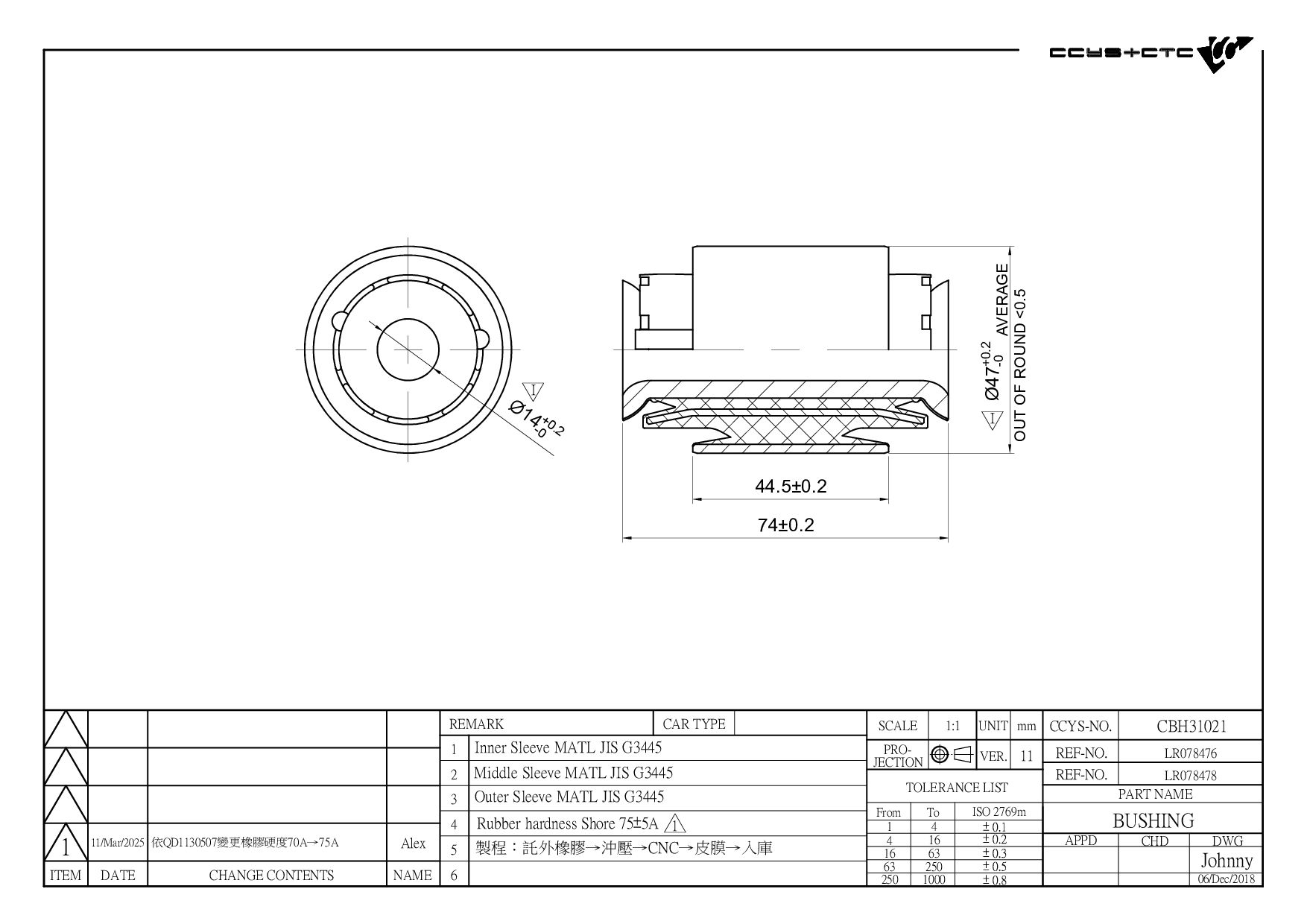

Technical Specification Matrix

CBH31021 是 LAND ROVER 專用的橡膠襯套 (FRONT LOWER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 0984-BX6BK-16,CPLA-3C297-AB,DPLA-3C297-AA,LR078476,LR078477,LR078478,LR078479。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)	0984-BX6BK-16 CPLA-3C297-AB DPLA-3C297-AA LR078476 LR078477 LR078478 LR078479
Length	47 mm
Width	47 mm
Height	74 mm
Net Weight	0.4 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH31020	FRONT LOWER ARM OUTER	CPLA-34460-AA CPLA-34460-AB LPLA3C254AA LPLA3C254AB LPLA3C254AC LPLA3C254AD LPLA3C255AA LPLA3C255AB LPLA3C255AC LPLA3C255AD LR078476 LR078477 LR078478 LR078479 LR123627 LR123628 LR137874 LR137876 LR175395 LR175396 LR175796 LR175797
CBH31021	FRONT LOWER ARM INNER	0984-BX6BK-16 CPLA-3C297-AB DPLA-3C297-AA LR078476 LR078477 LR078478 LR078479
CBH31022	FRONT LOWER ARM INNER	CPLA3069AH CPLA3069AI LPLA3069AB LPLA3C256AC LPLA3C256AD LPLA3C257AC LPLA3C257AD LR072469 LR072471 LR084108 LR100072 LR133896 LR133899 LR133900 LR144505 LR144506 LR148836
CBH31027	FRONT UPPER ARM INNER
CBH31035	REAR LOWER ARM INNER	CPLA5K896AB LR037700 LR037702 LR048090 LR048091
COS31006	FRONT
CRE31005	FRONT AXLE LH/ RH	FPLA3L519AA LR059264
CRE31006	FRONT AXLE LH/ RH	CPLA3L519AA LR033529
CS-3122L	FRONT LOWER LH	CPLA3C255AD CPLA3C255AE DPLA3C255AC DPLA3C255AD HPLA3C255BA LR034218 LR045243 LR078478 LR078479 LR084097
CS-3122R	FRONT LOWER RH	CPLA3C254AD CPLA3C254AE DPLA3C254AC DPLA3C254AD HPLA3C254BA LR034217 LR045242 LR078476 LR078477 LR084095
CS-3123L	FRONT LOWER LH	CPLA3C257AE CPLA3C257AF CPLA3C257AG JPLA3C257AA JPLA3C257BB JPLA3C257BC JPLA3C257BD LR034220 LR045245 LR072468 LR072469 LR109039 LR113307 LR126102 LR148060
CS-3123R	FRONT LOWER RH	CPLA3C256AE CPLA3C256AG JPLA3C256BB JPLA3C256BC JPLA3C256BD LR034219 LR045244 LR072470 LR072471 LR109038 LR113306 LR126101 LR148059
CS-3124L	FRONT UPPER LH	CPLA3091AE JPLA3091DA JPLA3091DB JPLA3091DC JPLA3091DD LR034214 LR044844 LR108766 LR113265 LR139240 LR148193
CS-3124R	FRONT UPPER RH	CPLA3084AE JPLA3084DA JPLA3084DB JPLA3084DC JPLA3084DD LR034211 LR044841 LR108765 LR113259 LR139239 LR148192
CS-3136L	FRONT LOWER LH	JPLA3C255EA JPLA3C255EB JPLA3C255EC JPLA3C255ED JPLA3C255EE JPLA3C255EF LR113305 LR126100 LR148058 LR161227 LR171073
CS-3136R	FRONT LOWERＲＨ	JPLA3C254EA JPLA3C254EB JPLA3C254EC JPLA3C254ED JPLA3C254EE JPLA3C254EF LR113282 LR126088 LR148056 LR161226 LR171072
CS-3139L	REAR LOWER LH	LR037700 LR048091 LR118365 LR128795 LR128797 LR163134 LR163135
CS-3139R	REAR LOWER RH	LR037702 LR048090 LR118364 LR128794 LR128796 LR163128 LR163130
CS-3149	REAR UPPER LH/ RH	CPLA5500BA CPLA5500BB LPLA5500AA LPLA5500AB LPLA5500AC LPLA5500AD LR037690 LR121053 LR132632 LR139241 LR139391 LR161274
CS-3153L	FRONT UPPER LH	LR034216
CS-3153R	FRONT UPPER RH	LR034213
CS-3154L	FRONT UPPER LH	LR034215
CS-3154R	FRONT UPPER RH	LR034212
CSL31013L	REAR AXLE LH	LR042976
CSL31013R	REAR AXLE RH	LR042975
CSL31016L	REAR LH( A= 184MM)	LR033243 LR048093
CSL31016R	REAR RH( A= 184MM)	LR033242 LR048092
CSL31019	FRONT AXLE LH/ RH	LR035489
CTE31012	FRONT AXLE LH/ RH	CPLA3C437AA LR033534
