Rubber Bushing

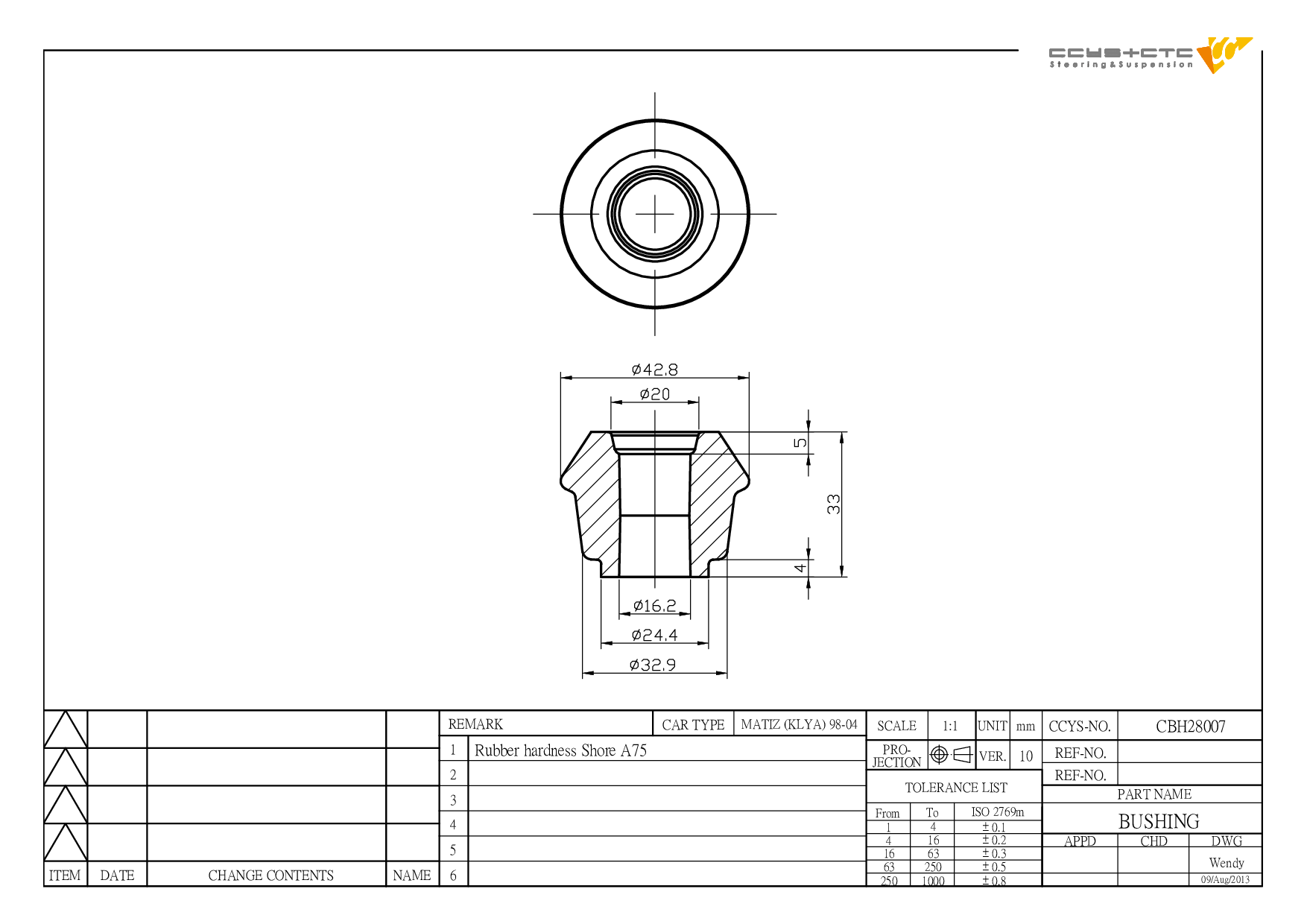

SUZUKI / ALTO I (0S) / Rubber Bushing / FRONT LOWER ARM OUTER / CBH28007

Technical Specification Matrix

CBH28007 是 SUZUKI 專用的橡膠襯套 (FRONT LOWER ARM OUTER)。本產品為 OEM 規格替代零件，適配原廠料號 96380586,963805860。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM OUTER
OE 替代料號 (Original Equipment Numbers)	96380586 963805860
Length	43 mm
Width	43 mm
Height	33 mm
Net Weight	0.0 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH07001	FRONT LOWER ARM INNER	009208989 009212533 09208989 09212533 09319-10030 09319-10030-000 09319M10002 09319M10030 09319M10030000 09319M10030-000 45261-77A00 45261-77A00-000 45261-77A10 45261-77A10-000 45261-84E00 4526184E00000 45261A-78B00 47 03 866 47 06 664 9208989 9212533 963
CBH28007	FRONT LOWER ARM OUTER	96380586 963805860
CRE12023	FRONT AXLE LH/ RH	93741092
CS-2803	FRONT LOWER LH/ RH	96611265
CS-701	FRONT LOWER LH/ RH	1AY0-34-300 1YA1-34-300 45200-50500 45200-50E00 45200-69D00 45200-69DV0 45200-69DV1 45200-76G10 45200-76G20 45200-76G21 45200-78000 45200-78002 45200-84000 45200-84001 45200-M50E00 45200-M50E20 45200-M50E30 45200-M50E40 45200-M50E41 45200-M79F00 45200-M79
CTE03009	FRONT AXLE LH/ RH (C= M12X1.25)	009204751 009210168 009210351 09204751 09210168 09210351 47 01 744 47 05 655 47 05 716 47 09 195 485204A00B 48810-60810 48810-60J00 48810-63J00 48810-83E00 48810-83E00-000 48810-83E01 48810-83E01-000 48810-83E02 48810-83E02-000 48810-84M00 48810-84M00-000
