Technical Specification Matrix

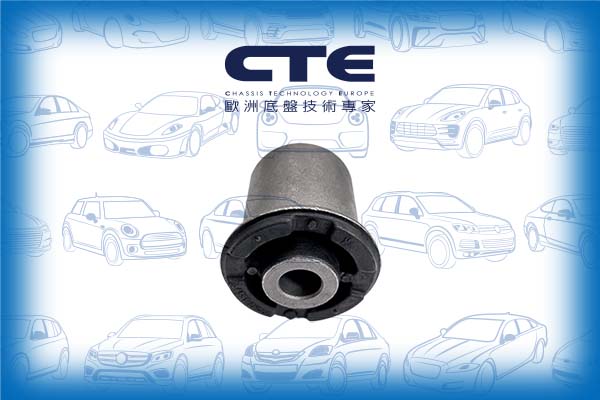

CBH26016 是 KIA 專用的 橡膠襯套 (FRONT LOWER ARM INNER)。
本產品為 OEM 規格替代零件，適配原廠料號 54500-1D000,54500-1D100,54500-1D300,54500-2G501,54500-2G600,54500-2G601,54500-2H000,54500-2H100,54501-1D000,54501-1D100,54501-1D300,54501-2G501,54501-2G600,54501-2G601,54501-2H000,54501-2H100,54551-2E000,54551-2H000,54551-3R000,54551-A4000。

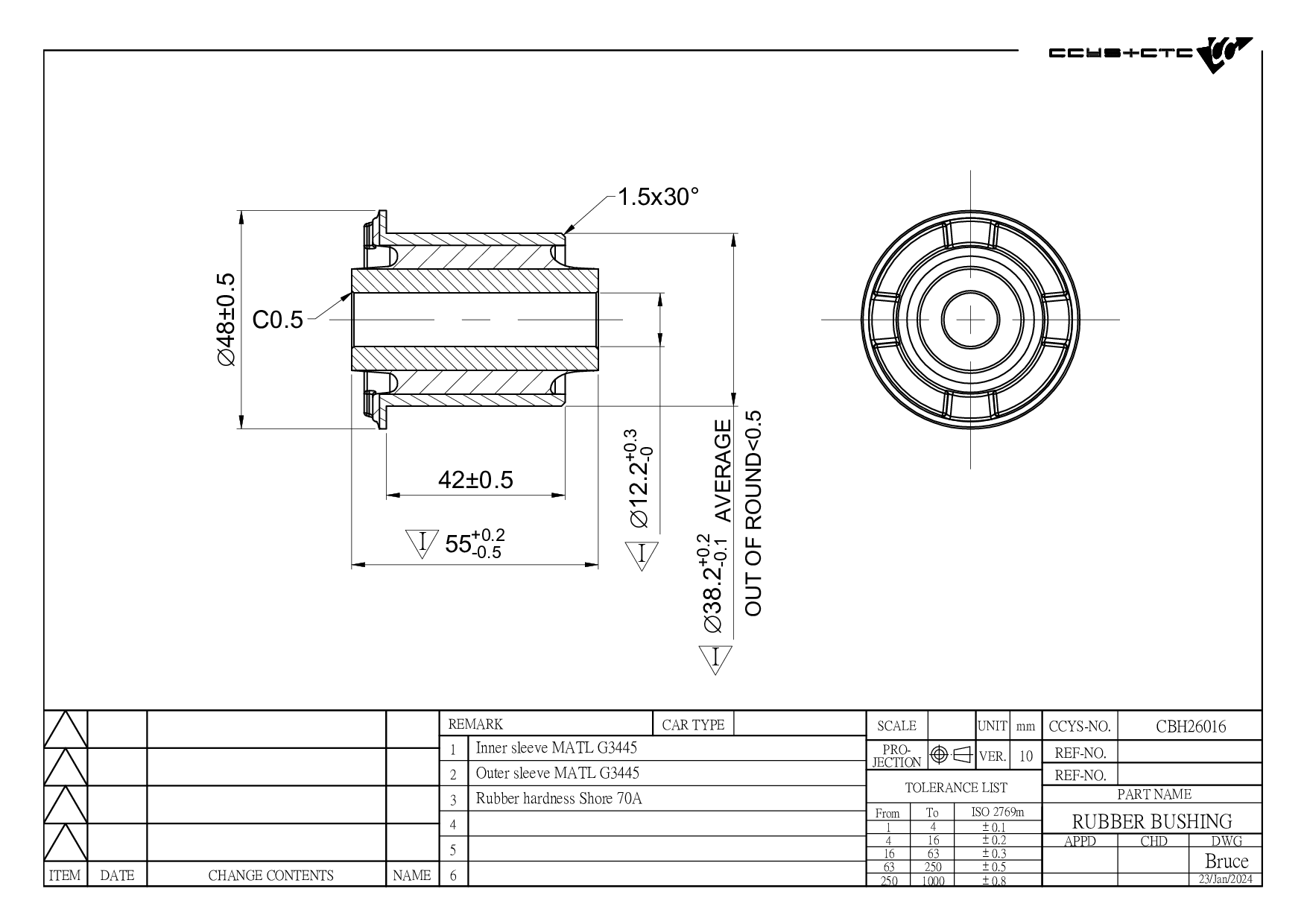

| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 48 mm |
| Width | 48 mm |
| Height | 55 mm |
| Net Weight | 0.3 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |

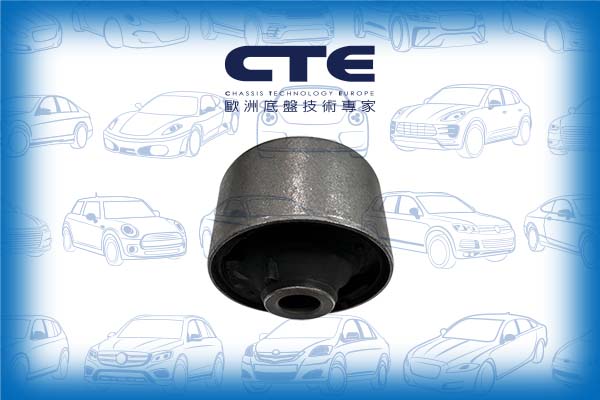

CBH26015 | FRONT LOWER ARM REAR |
|
|
 |
CBH26016 | FRONT LOWER ARM INNER |
|
|
 |
CRE26029 | FRONT AXLE LH/ RH |
|
|
 |

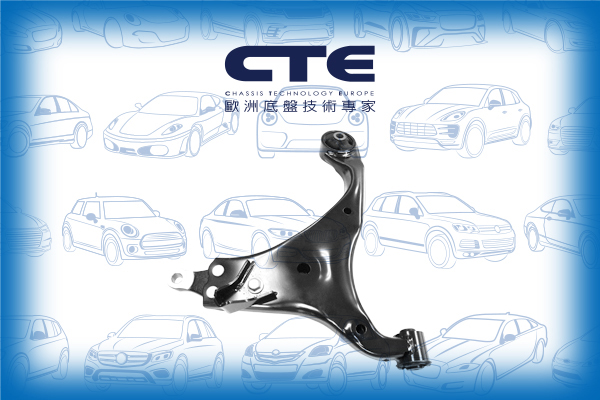

CS-2620L | FRONT LOWER LH |
|
|
 |
CS-2620R | FRONT LOWER RH |
|
|
 |
CS-2644L | FRONT LOWER LH |
|
|
 |
CS-2644R | FRONT LOWER RH |
|
|
 |
CSL02056 | FRONT (A= 285MM) |
|
|
 |
CSL26035 | REAR AXLE LH/ RH |
|
|
 |
CSL29009 | FRONT (A= 243.5MM) |
|
|
 |
CSL29013 | REAR AXLE LH/ＲＨ |
|
| Model (Year) |
|---|
|
CARENS I MPV (FC, FJ) CARENS III MPV (UN) | RONDO CEE'D Hatchback (ED) CEE'D SW (ED) PRO CEE'D (ED) |
| Model (Year) |
|---|
|
ELANTRA IV Saloon (HD) | AVANTE i30 (FD) | ELANTRA | AVANTE i30 Estate (FD) |
