Rubber Bushing

PEUGEOT / 1007 (KM_) / Rubber Bushing / FRONT LOWER ARM INNER / CBH25003

Name: CBH25003
Brand: CTE
SKU: CBH25003
Price: 481.00 TWD
Availability: InStock

Citroen C3 I (FC_,FN_) construction year from 09.2005 to 09.2006 , for pro number up to 10912, vehicles with standard
heavy duty suspension

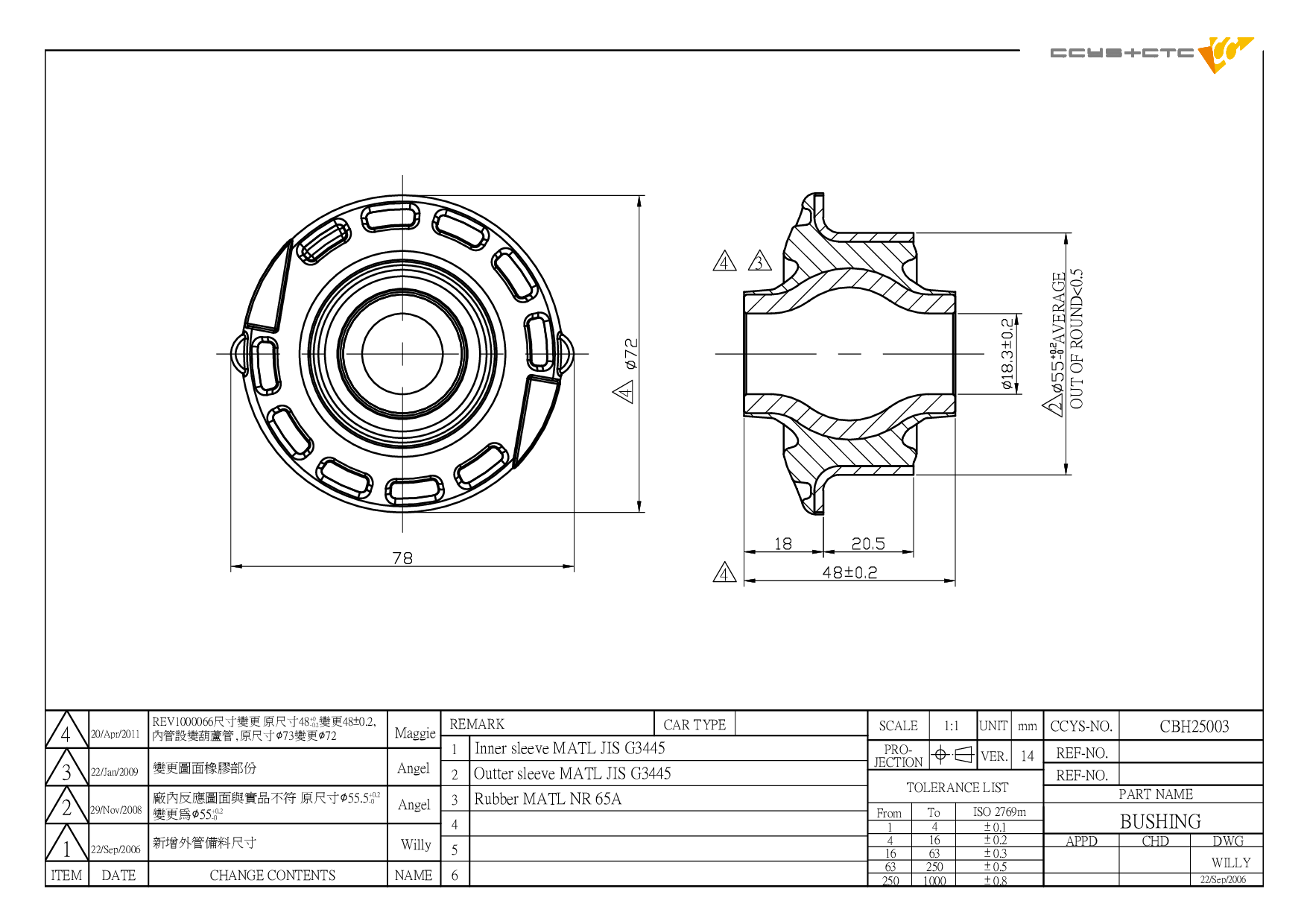

Technical Specification Matrix

CBH25003 是 PEUGEOT 專用的橡膠襯套 (FRONT LOWER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 3523.98,96 361 910 80。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)	3523.98 96 361 910 80
Length	72 mm
Width	72 mm
Height	48 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH25002	FRONT LOWER ARM REAR	3523.99 3523.AA 3523.AT 96 408 770 80
CBH25003	FRONT LOWER ARM INNER	3523.98 96 361 910 80
CBJ16011A	FRONT LOWER LH/ RH	16 072 984 80 16 072 985 80 3640.56 3640.59 3640.62 3640.66
CBJ25001A	FRONT LOWER LH/ RH	16 072 984 80 16 072 985 80 3640.56 3640.59 3640.62 3640.66
CRE05024	FRONT AXLE LH/ RH	4422A048 4422A058 4422A076
CRE25003	D= M14X1.5 , C= M12X1.0	3812.E1

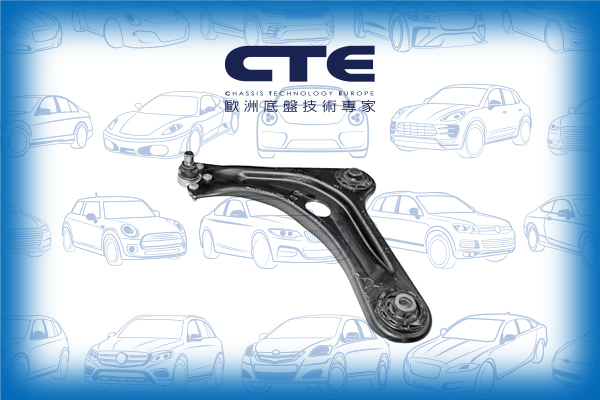

CS-2502L	FRONT LOWER LH	3520.L3 3520.L4 3520.Q0 3520.R0 3520.R1 3520.R5 3520.V1

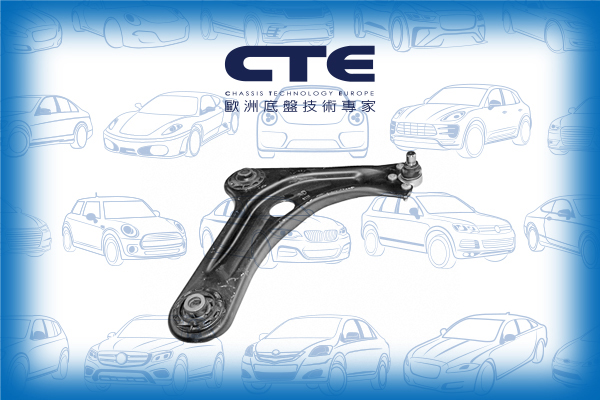

CS-2502R	FRONT LOWER RH	3521.H5 3521.H6 3521.L1 3521.N1 3521.N2 3521.N6 3521.R2
CS47012L	FRONT LOWER LH	1014013005
CS47012R	FRONT LOWER RH	1014013007
CSL16011	FRONT (A= 335MM)	16 073 234 80 16 466 219 80 5087.45 5087.59 5087.66 5087.71 5087.74 96288787 98 000 861 80 98 088 682 80 E459713
