Rubber Bushing

FIAT / DOBLO Box Body/MPV (223_) / Rubber Bushing / FRONT LOWER ARM REAR / CBH22017L

Technical Specification Matrix

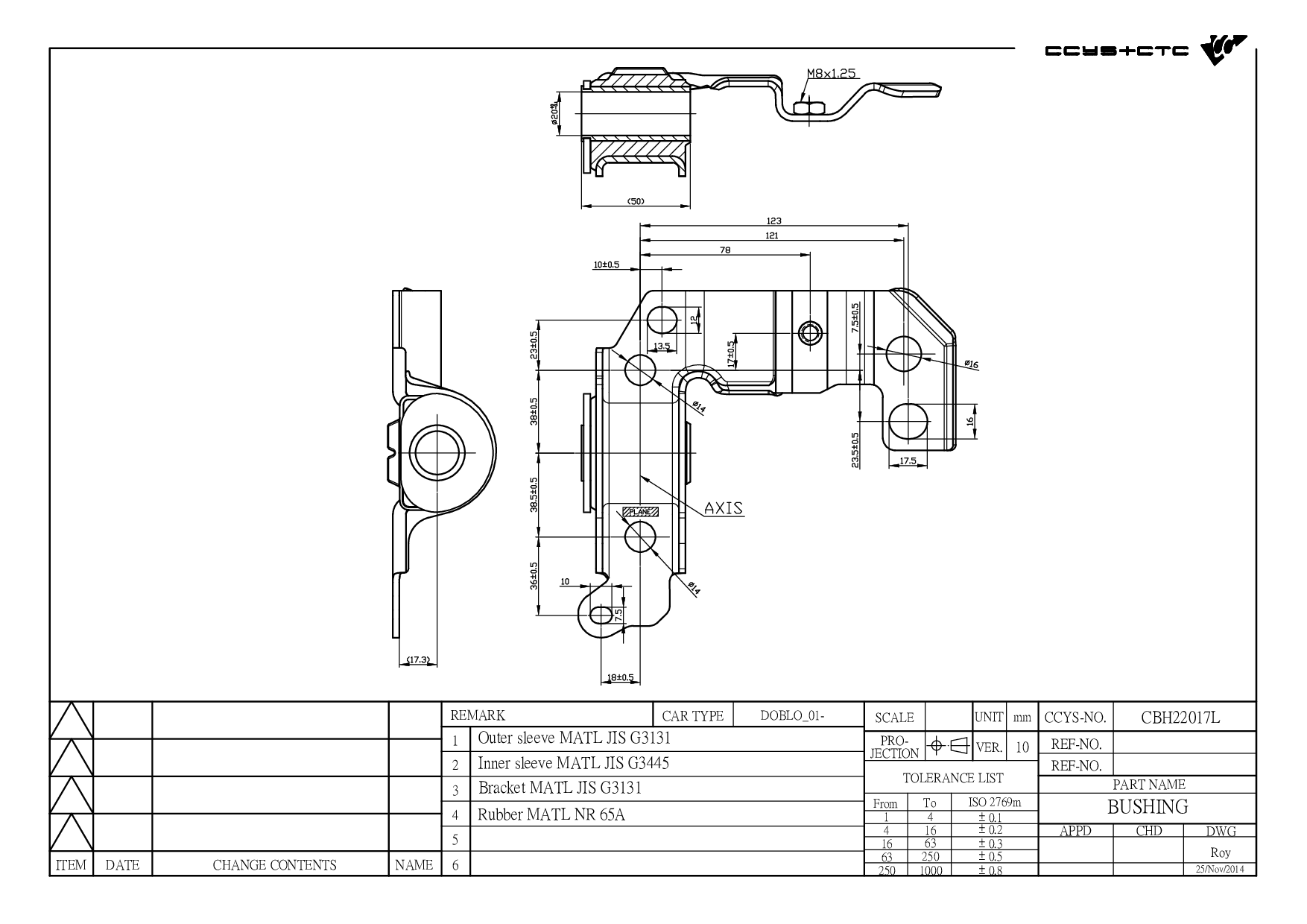

CBH22017L 是 FIAT 專用的橡膠襯套 (FRONT LOWER ARM REAR)。本產品為 OEM 規格替代零件，適配原廠料號 467 48 578,467 94 066,517 69 074。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM REAR
OE 替代料號 (Original Equipment Numbers)	467 48 578 467 94 066 517 69 074
Length	172 mm
Width	50 mm
Height	161 mm
Net Weight	0.5 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH22017L	FRONT LOWER ARM REAR	467 48 578 467 94 066 517 69 074
CBH22017R	FRONT LOWER ARM REAR	467 48 579 467 94 065 517 12 407
CBH22018	FRONT LOWER ARM INNER	467 94 065 467 94 066 517 12 407 517 12 408 517 69 073 517 69 074 517 74 009
CS-2214L	FRONT LOWER LH	46539001 46777742 46779303 46794066 46813842 51712408 51747324 51764471 51769074 51866701
CS-2214R	FRONT LOWER RH	46539000 46777741 46779302 46794065 46813841 51712407 51747323 51764470 51769073 51866700
CSL22005	REAR AXLE LH/RH	46767267 46799278 51717000

Model (Year)
DOBLO Box Body/MPV (223_) DOBLO MPV (119_, 223_)
