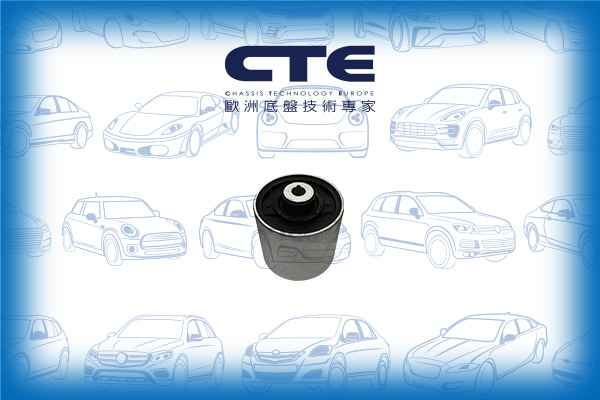

Rubber Bushing

AUDI / A8 D5 (4N2, 4N8, 4NC, 4NL, 4NX) | A8L / Rubber Bushing / FRONT LOWER ARM INNER / CBH19044

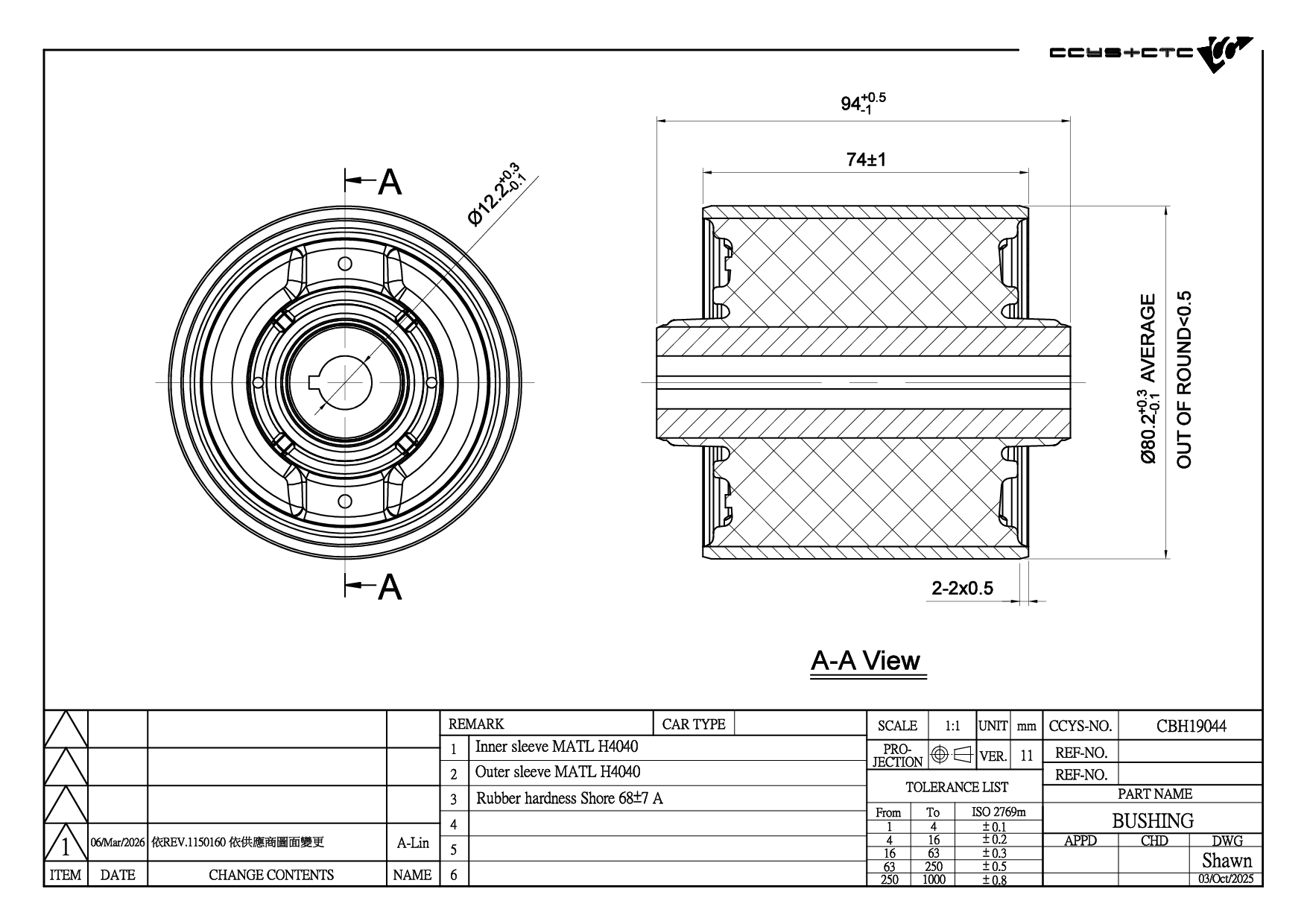

Technical Specification Matrix

CBH19044 是 AUDI 專用的橡膠襯套 (FRONT LOWER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 4M0 407 183A,4M0 407 183B。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)	4M0 407 183A 4M0 407 183B
Length	80 mm
Width	80 mm
Height	94 mm
Net Weight	0.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH19044	FRONT LOWER ARM INNER	4M0 407 183A 4M0 407 183B
CRE19007	FRONT AXLE LH/ RH	4M0 423 810C
CS-1983L	FRONT LOWER LH	4M0 407 693C 4M0 407 693D 4M0 407 693E 958 407 693 00 PAB 407 693
CS-1983R	FRONT LOWER RH	4M0 407 694C 4M0 407 694D 4M0 407 694E 958 407 694 00 PAB 407 694
CSL19018	FRONT (A= 170MM)	4G0 411 317A 4H0 411 317A 4H0 411 317C 4M0 411 317 4M0 411 317D 4M0 411 317J 4M0 411 317L 8K0 411 317A 8K0 411 317C 8K0 411 317D 8K0 411 317D S1 8K0 411 317E 8K0 411 318E 8KD 407 317E
CSL19018D1	FRONT (A= 170MM)	4G0 411 317 4G0 411 317A 4H0 411 317 4H0 411 317A 4H0 411 317C 4M0 411 317 4M0 411 317D 4M0 411 317J 4M0 411 317L

Model (Year)
A8 D5 (4N2, 4N8, 4NC, 4NL, 4NX) \| A8L E-TRON (GEN) E-TRON Sportback (GEA) Q7 (4MB, 4MG) Q7 (4MB, 4MG, 4MQ) Q7 Van (4MB, 4MG) Q8 (4MN, 4MT)

Model (Year)
CAYENNE (9YA) CAYENNE Coupe (9YB)

Model (Year)
TOUAREG (CR7, RC8)
