Technical Specification Matrix

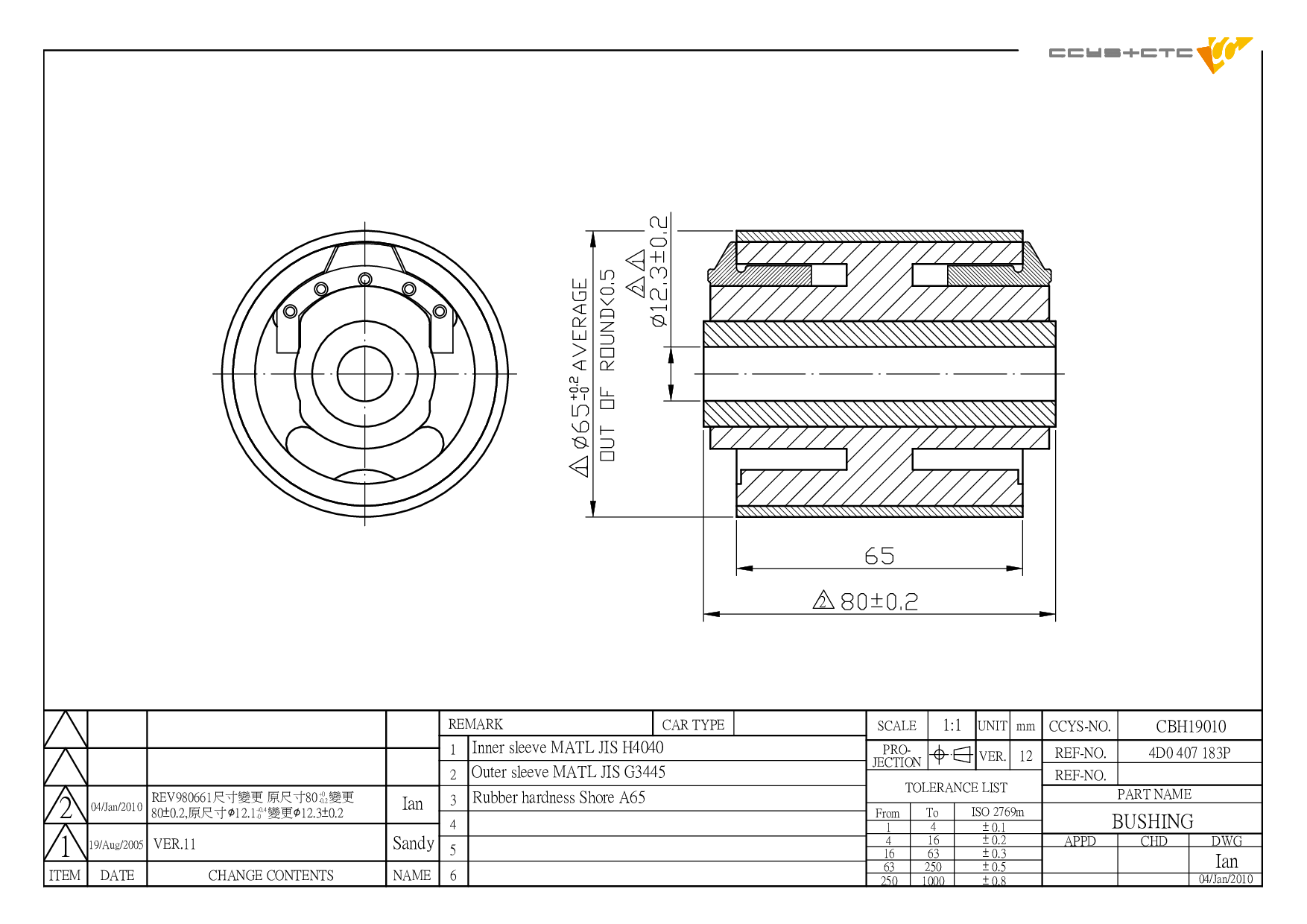

CBH19010 是 AUDI 專用的 橡膠襯套 (FRONT LOWER ARM INNER)。
本產品為 OEM 規格替代零件，適配原廠料號 4D0 407 183AA,4D0 407 183AB,4D0 407 183AC,4D0 407 183M,4D0 407 183N,4D0 407 183P,4D0 407 183Q,4E0 407 183A,4E0 407 183H,4F0 407 183C。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 80 mm |
| Width | 65 mm |
| Height | 65 mm |
| Net Weight | 0.5 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH19006 | FRONT UPPER ARM INNER |
|
|
 |
CBH19008 | FRONT LOWER ARM INNER |
|
|
 |
CBH19009 | FRONT LOWER ARM OUTER |
|
|
 |
CBH19010 | FRONT LOWER ARM INNER |
|
|
 |
CBH19018 | FRONT UPPER ARM INNER |
|
|
 |
CRE19001 | D= M14X1.5 , C= M16X1.5 |
|
|
 |
CS-1904 | FRONT LOWER LH/ RH |
|
|
 |
CS-1906L | FRONT UPPER GUIDE LH |
|
|
 |
CS-1906R | FRONT UPPER GUIDE RH |
|
|
 |
CS-1907L | FRONT UPPER ROD LH |
|
|
 |
CS-1907R | FRONT UPPER ROD RH |
|
|
 |
CS-1912L | FRONT LOWER LH |
|
|
 |
CS-1912R | FRONT LOWER RH |
|
|
 |
CS-1922L | FRONT UPPER LH |
|
|
 |
CS-1922R | FRONT UPPER RH |
|
|
 |
CS-1923L | FRONT UPPER LH |
|
|
 |
CS-1923R | FRONT UPPER RH |
|
|
 |
CSL19006 | FRONT (A= 87MM) |
|
|
 |
CSL19011L | FRONT LH (A= 90MM) |
|
|
 |
CSL19011LA | FRONT LH (A= 90MM) |
|
|
 |
CSL19011R | FRONT RH (A= 90MM) |
|
|
 |
CSL19011RA | FRONT RH (A= 90MM) |
|
|
 |
CSR19001 | FRONT AXLE LH/ RH |
|
|
 |
CTE19002 | FRONT AXLE LH/ RH (C= M14X1.5) |
|
|
 |
CTE19003 | FRONT AXLE LH/ RH (C= M14X1.5) |
|
| Model (Year) |
|---|
|
A4 B5 (8D2) | A4 / S4 A4 B5 Avant (8D5) A4 B6 (8E2) | A4 / S4 A4 B6 Avant (8E5) | A4 / S4 A6 C5 (4B2, 4B4) | A6 / S6 A6 C5 Avant (4B5, 4B6) | A6 / S6 A8 D2 (4D2, 4D8) | A8 / S8 ALLROAD C5 (4BH) |
| Model (Year) |
|---|
|
PASSAT B5 (3B2) PASSAT B5.5 (3B3) |
