Technical Specification Matrix

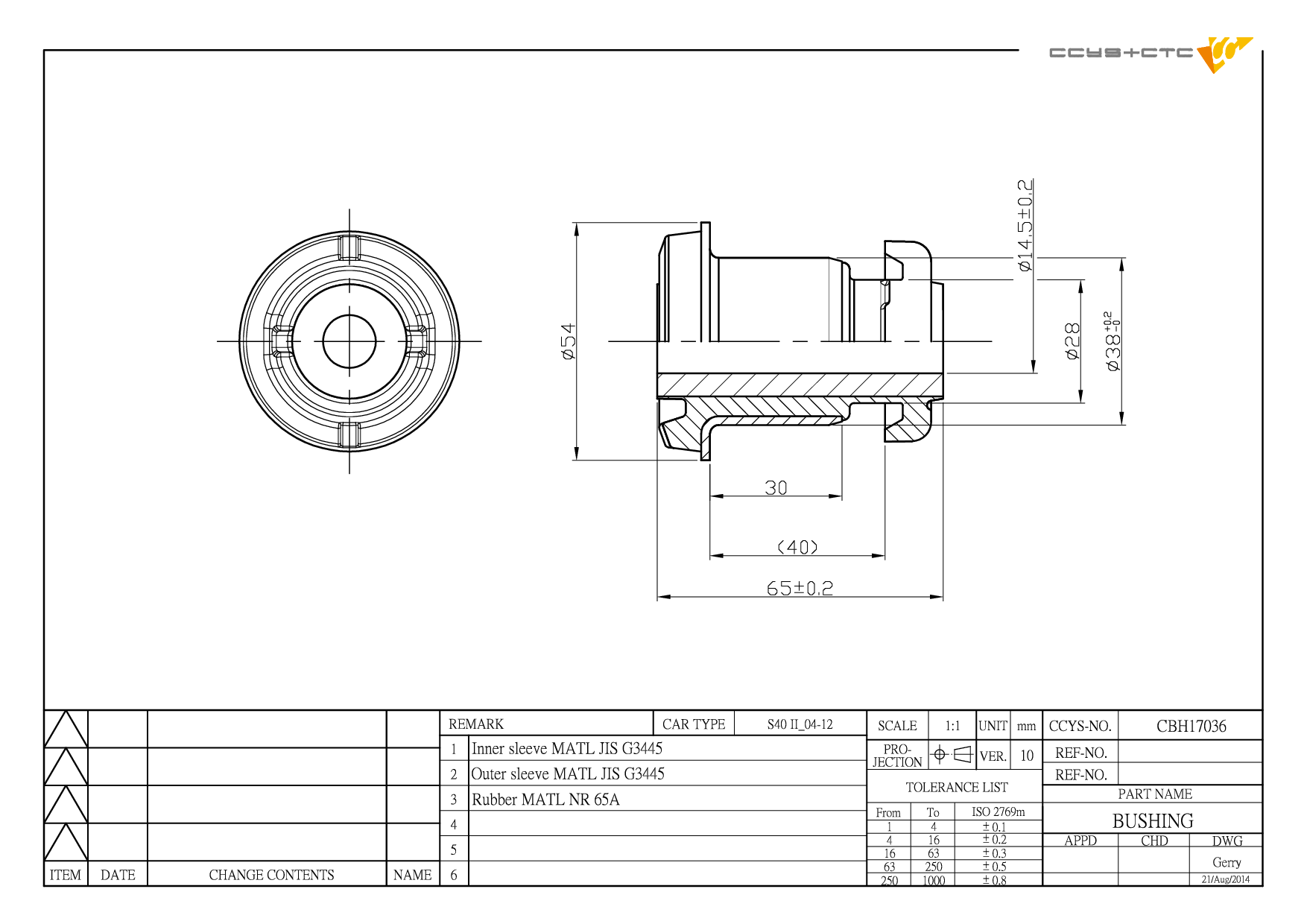

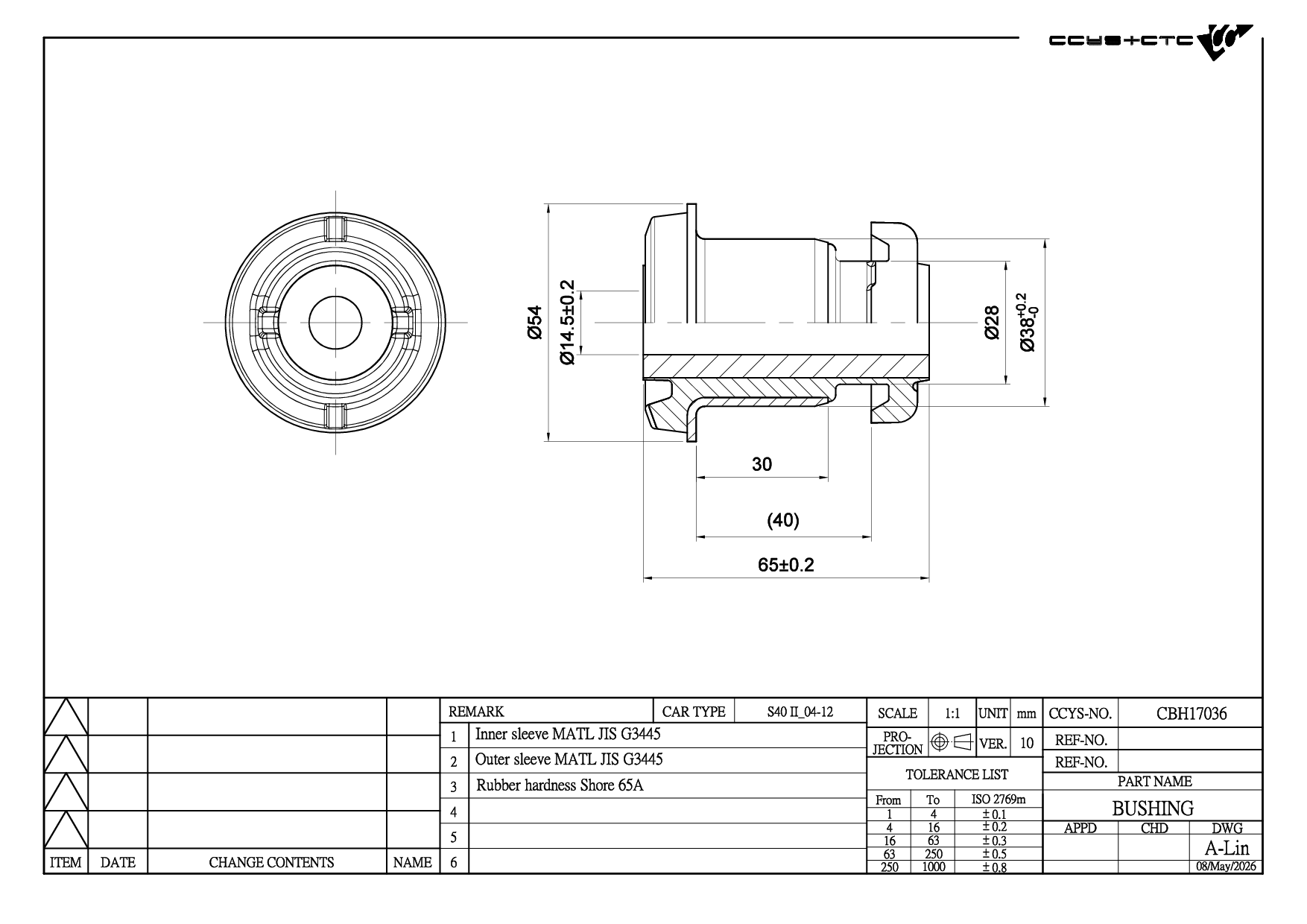

CBH17036 是 VOLVO 專用的 橡膠襯套 (FRONT LOWER ARM INNER)。
本產品為 OEM 規格替代零件，適配原廠料號 31277462,31277463。
| PARAMETER | METRIC / VALUE |
|---|---|
| Designation | Rubber Bushing |
| Position | FRONT LOWER ARM INNER |
| OE 替代料號 (Original Equipment Numbers) |
|
| Length | 54 mm |
| Width | 54 mm |
| Height | 65 mm |
| Net Weight | 0.3 kg |
Find More Auto Parts
快速找到適配您需要的專業零件
輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。
Compatible Models
| CTE No. | DESIGNATION | POSITION | OE No. | |
|---|---|---|---|---|
 |
CBH03020 | REAR LINK INNER/ OUTER |
|
|
 |
CBH03048 | REAR LINK |
|
|
 |
CBH03060 | FRONT LOWER ARM REAR |
|
|
 |
CBH03061 | FRONT LOWER ARM INNER |
|
|
 |
CBH17035 | FRONT LOWER ARM REAR |
|
|
 |
CBH17036 | FRONT LOWER ARM INNER |
|
|
 |
CBH17042 | FRONT LOWER ARM REAR |
|
|
 |
CBJ03015A | FRONT LOWER LH/ RH (B= 18 MM) |
|
|
 |
CBJ03017A | FRONT LOWER LH/ RH (B= 21 MM) |
|
|
 |
CRE17023 | D= M16X1.5 , C= M14X1.5 |
|
|
 |
CS-1722L | FRONT LOWER LH (D= 18MM) |
|
|
 |
CS-1722R | FRONT LOWER RH (D= 18MM) |
|
|
 |
CS-341 | REAR AXLE LH/ RH |
|
|
 |
CS-347 | REAR UPPER LH/ RH |
|
|
 |
CS-349L | FRONT LOWER LH (D= 15MM) |
|
|
 |
CS-349R | FRONT LOWER RH (D= 15MM) |
|
|
 |
CSL03038 | FRONT (A= 306MM) |
|
|
 |
CSL17021 | REAR (A= 89MM) |
|
| Model (Year) |
|---|
|
C30 (533) C70 I Convertible (873) C70 II Convertible (542) S40 II (544) V50 (545) |
| Model (Year) |
|---|
|
FOCUS C-MAX (DM2) FOCUS II (DA_, HCP, DP) FOCUS II Estate Van FOCUS II Saloon (DB_, FCH, DH) FOCUS II Turnier (DA_, FFS, DS) |
