Rubber Bushing

VOLVO / S60 I (384) / Rubber Bushing / FRONT AXLE / CBH17004

Name: CBH17004
Brand: CTE
SKU: CBH17004
Price: 722.00 TWD
Availability: InStock

Rubber Bushing/VOLVO/S60 I (384)/S60 II (134)/S80 I (184)/V70 I (875, 876)

Technical Specification Matrix

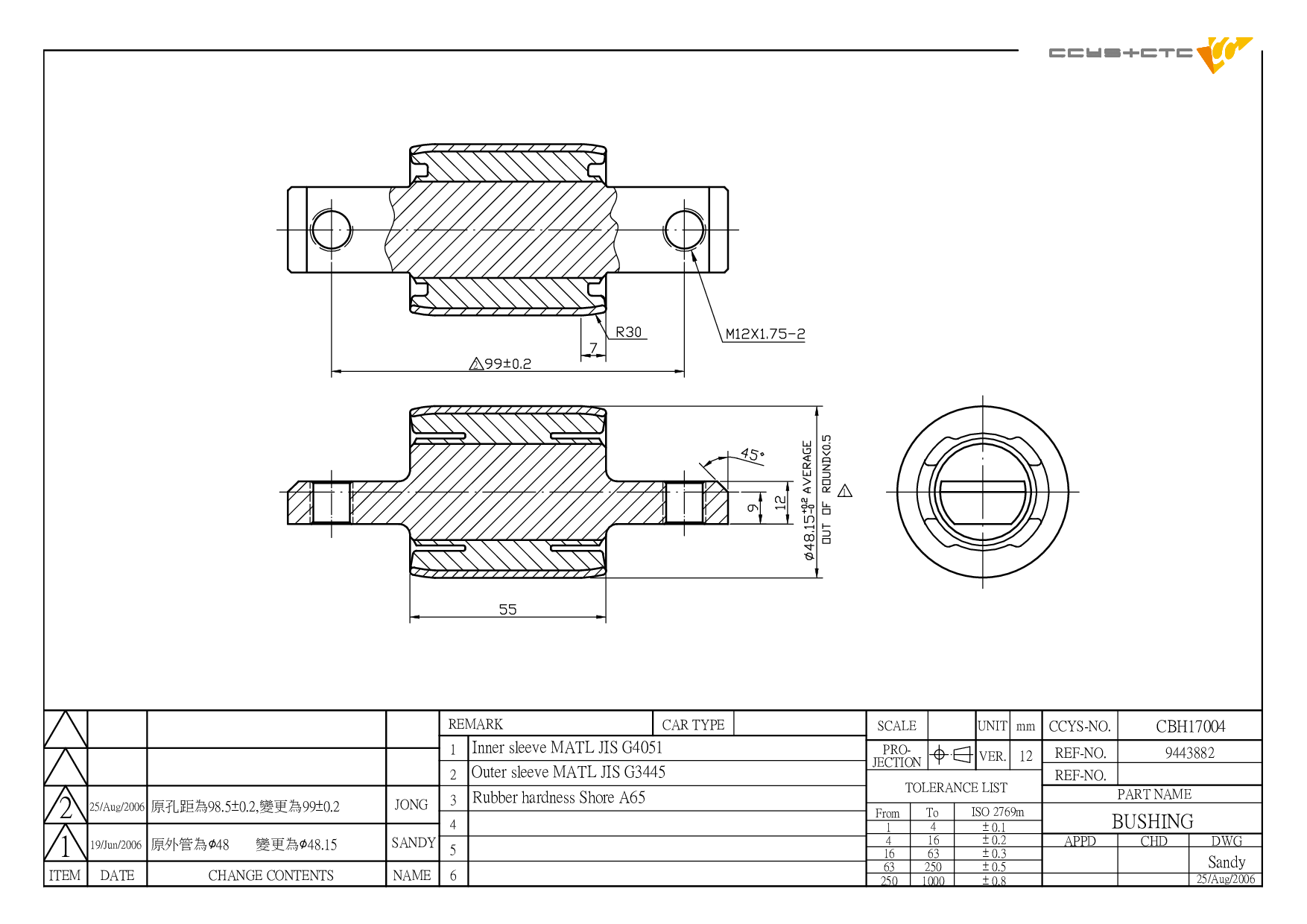

CBH17004 是 VOLVO 專用的橡膠襯套 (FRONT AXLE)。本產品為 OEM 規格替代零件，適配原廠料號 9173618,9443882,9465971。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT AXLE
OE 替代料號 (Original Equipment Numbers)	9173618 9443882 9465971
Length	48 mm
Width	48 mm
Height	124 mm
Net Weight	0.6 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH03067L	FRONT LOWER ARM LH REAR	1888630 31262475 31340128 31387571 31429321 7G9J3A262AB
CBH03067R	FRONT LOWER ARM RH REAR	1883048 31262473 31340127 31387572 31429320 7G9J3A262BB
CBH03071	REAR ARM	6G91-5K743-VA 6G91-5K743-XA
CBH17004	FRONT AXLE	9173618 9443882 9465971
CBH17006	REAR AXLE UPPER	30748890 8667020 8672220 9173761
CBH17009	REAR AXLE INNER	30645401 31277952 9157579
CBH17017	REAR AXLE INNER	9492181
CBH17030	FRONT LOWER ARM INNER	1507181 1507182 31200775 31200776 31262473 31262475 31277345 31277346 31277525 31277526 31317663 31317664 31317665 31317666 31340127 31340128 31429320 31429321 7G9N 3A052 BB 7G9N 3A053 BB LR007205 LR007206
CBH17041L	REAR AXEL LH	1566837 1566838 1865033 2040702 31387280 31406337 31476221 6G91-5A969-FCJ 6G91-5K896-AA 6G91-5K896-AB TKA181351
CBH17041R	REAR AXEL RH	1566810 1566829 1566836 1566841 1865034 2040703 31277755 31277756 31387281 31406350 31476222 6G91-5A968-FCJ 6G91-5A968-FNJ 6G91-5A969-FNJ 6G91-5K896-BA 6G91-5K896-BB TKA181352
CRE03081	FRONT AXLE LH/ RH	7G913280AA
CRE17026	D= M18X1.5 , C= M16X1.5	30776255 30776425 31406474
CRE17028	D= M18X1.5 , C= M16X1.5	1433271 1596574 30776250 31280002 31280658 31451035 6G913280AA 6G913280AB LR016869
CS-1726L	FRONT LOWER LH	31262475 31340128 31429321
CS-1726R	FRONT LOWER RH	31262473 31340127 31429320
CS-353L	FRONT LOWER LH	1377848 1385594 1403410 1419815 1426876 1435747 1460693 1466188 1469026 1507182 30671636 31200448 31200563 31212782 31277343 31317661 6G9N-3A053-DA 6G9N-3A053-DB 6G9N-3A053-DC 6G9N-3A053-DD 6G9N-3A053-DE 6G9N-3A053-DF 6G9N-3A053-DG 6G9N-3A053-DH 7G9N 3A05
CS-353R	FRONT LOWER RH	1377846 1385593 1403408 1419814 1426875 1435745 1458773 1466186 1469024 1507181 30671637 31200449 31200564 31212781 31277344 31317662 6G9N-3A052-DA 6G9N-3A052-DB 6G9N-3A052-DC 6G9N-3A052-DD 6G9N-3A052-DE 6G9N-3A052-DF 6G9N-3A052-DG 6G9N-3A052-DH 7G9N 3A05
CS-356	REAR LOWER LH/ RH	1377449 1381443 1381843 1387628 1426770 1426770 S1 30666558 30666559 30676099 30676100 30736864 30736864 S1 30760069 31262127 31262127 S1 31262128 31262439 31262930 31262930 S1 31262931 31340354 6G91-5K743-VA 6G91-5K743-XA 6G91-5K743-XAA 6G91-5K743-XAB 6G
CSL03048	REAR (A= 179MM)	1377349 1377398 1377416 1425853 1502681 1783320 30736875 30736947 30736948 30760678 31429561 31451817 31476579 6G915C486XAA 6G915C486XAB 8V41-5C486-AA 8V4Z-5C486-A CV615C486AAB CV6Z-5C486-B
CSL17006	FRONT (A= 244.5MM)	272991 6819253 9492837
CSL17019	FRONT (A= 300MM)	1377849 1433294 30648461 31658608 6G9N-3B438-BA
CTE17015L	FRONT AXLE LH	1433274 30776249 31280000 31302344 6G91-3290-AA LR002610
CTE17015R	FRONT AXLE RH	1433273 30776248 31280001 31302345 6G91-3289-AA LR002609
