Rubber Bushing

PEUGEOT / 104 / Rubber Bushing / FRONT LOWER ARM OUTER / CBH16019

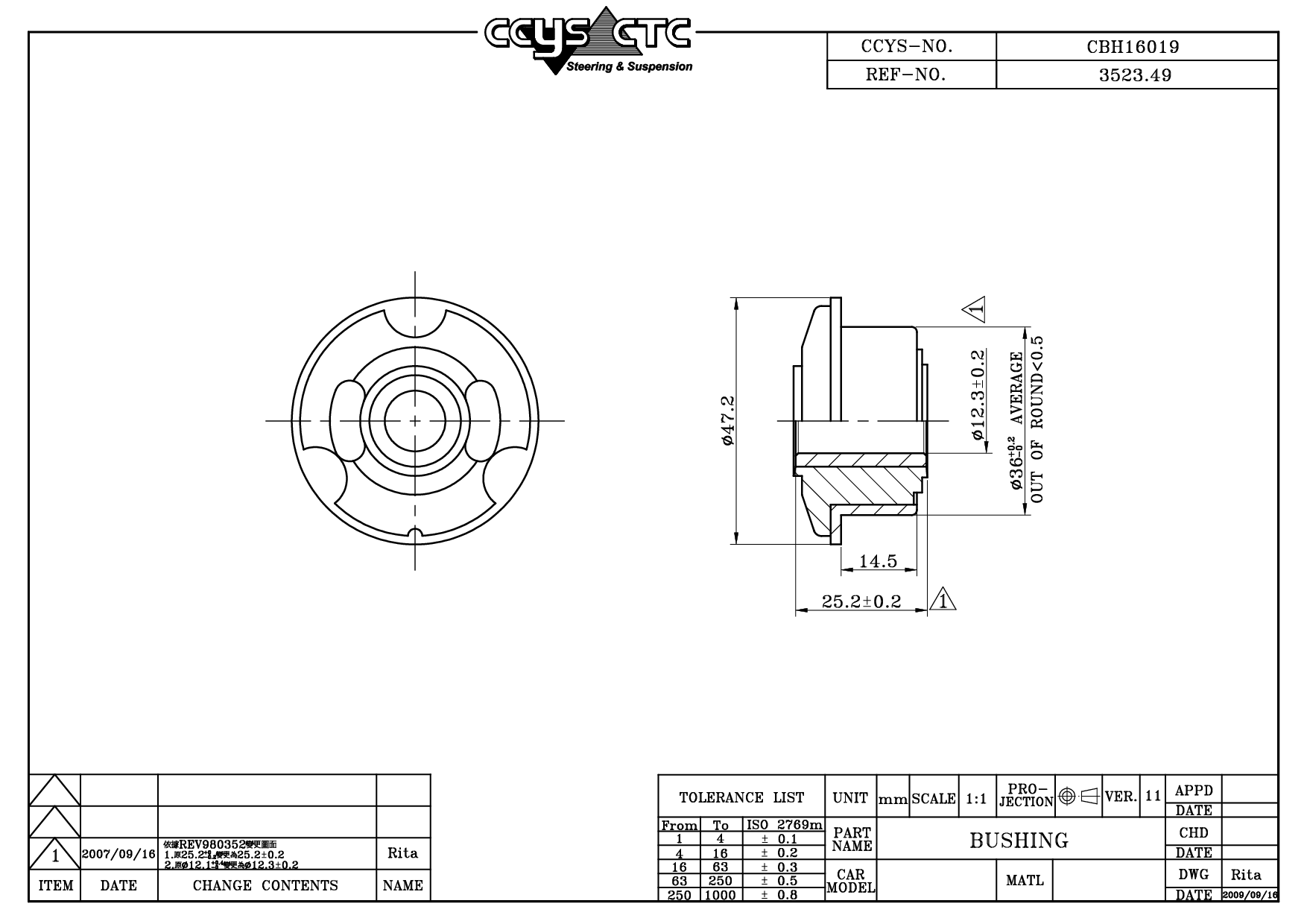

Technical Specification Matrix

CBH16019 是 PEUGEOT 專用的橡膠襯套 (FRONT LOWER ARM OUTER)。本產品為 OEM 規格替代零件，適配原廠料號 3523.25,3523.27,3523.29,3523.35,3523.49,3523.58,91 515 653。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM OUTER
OE 替代料號 (Original Equipment Numbers)	3523.25 3523.27 3523.29 3523.35 3523.49 3523.58 91 515 653
Length	47 mm
Width	47 mm
Height	25 mm
Net Weight	0.1 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH16019	FRONT LOWER ARM OUTER	3523.25 3523.27 3523.29 3523.35 3523.49 3523.58 91 515 653
CBH16020	FRONT LOWER ARM INNER	3523.20 3523.73
CRE16001	D= M14X1.5 , C= M12X1.0	3812.95 381232
CS-1618L	FRONT LOWER LH	1607307180 3520.48 3520.49 3520.50 3520.51 91 516 336 91516334 9455305059
CS-1618R	FRONT LOWER RH	1607307280 3521.31 3521.33 3521.34 91 516 337 91516335 9455305060

Model (Year)
104 104 Coupe 205 Hatchback Van 205 I (741A/C) 205 I Convertible (741B, 20D) 205 II (20A/C)

Model (Year)
14 (121_)

Model (Year)
C15 Box Body/MPV (VD_) C15 Estate C15 Platform/Chassis (VDPD) LNA VISA VISA Convertible

Model (Year)
SAMBA SAMBA Convertible
