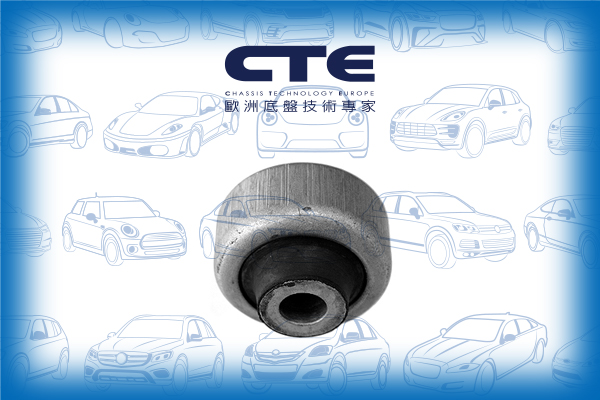

Rubber Bushing

PEUGEOT / 206 CC (2D) / Rubber Bushing / FRONT LOWER ARM REAR / CBH16013

Technical Specification Matrix

CBH16013 是 PEUGEOT 專用的橡膠襯套 (FRONT LOWER ARM REAR)。本產品為 OEM 規格替代零件，適配原廠料號 3523.80。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM REAR
OE 替代料號 (Original Equipment Numbers)	3523.80

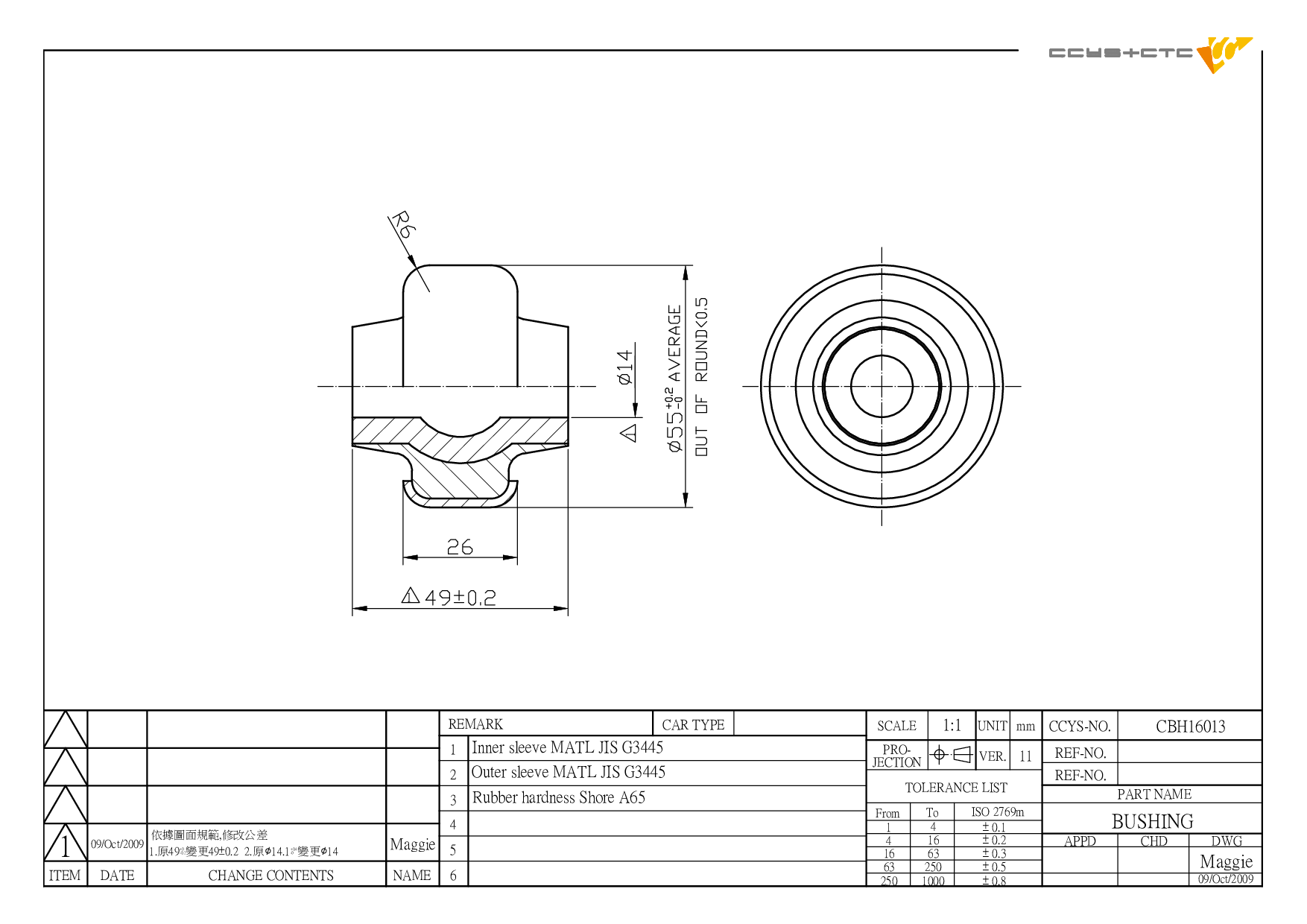

Length	55 mm
Width	55 mm
Height	49 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH16009	FRONT LOWER ARM REAR	3523.77 3523.92
CBH16011	FRONT LOWER ARM INNER	3523.91 3523.AJ 3523.CW 96 719 188 80
CBH16013	FRONT LOWER ARM REAR	3523.80
CRE25002	D= M14X1.5 , C= M14X1.5	3812.E0
CS-1623L	FRONT LOWER LH	16 431 887 80 3520.V2
CS-1623R	FRONT LOWER RH	16 431 891 80 3521.R3
CSL16013	FRONT (A= 334MM)	16 073 250 80 1610930280 1614281180 5087.50 5087.57 5087.62 5087.64 5087.77 5087.78 9804947480 E459715

Model (Year)
206 CC (2D) 206 Hatchback (2A/C) 206 SW (2E/K)

Model (Year)
C4 II (NC_) DS4 (NX_) DS5

Model (Year)
CORSA D Hatchback Van (S07)

Model (Year)
DS 5 (KF_) \| DS5
