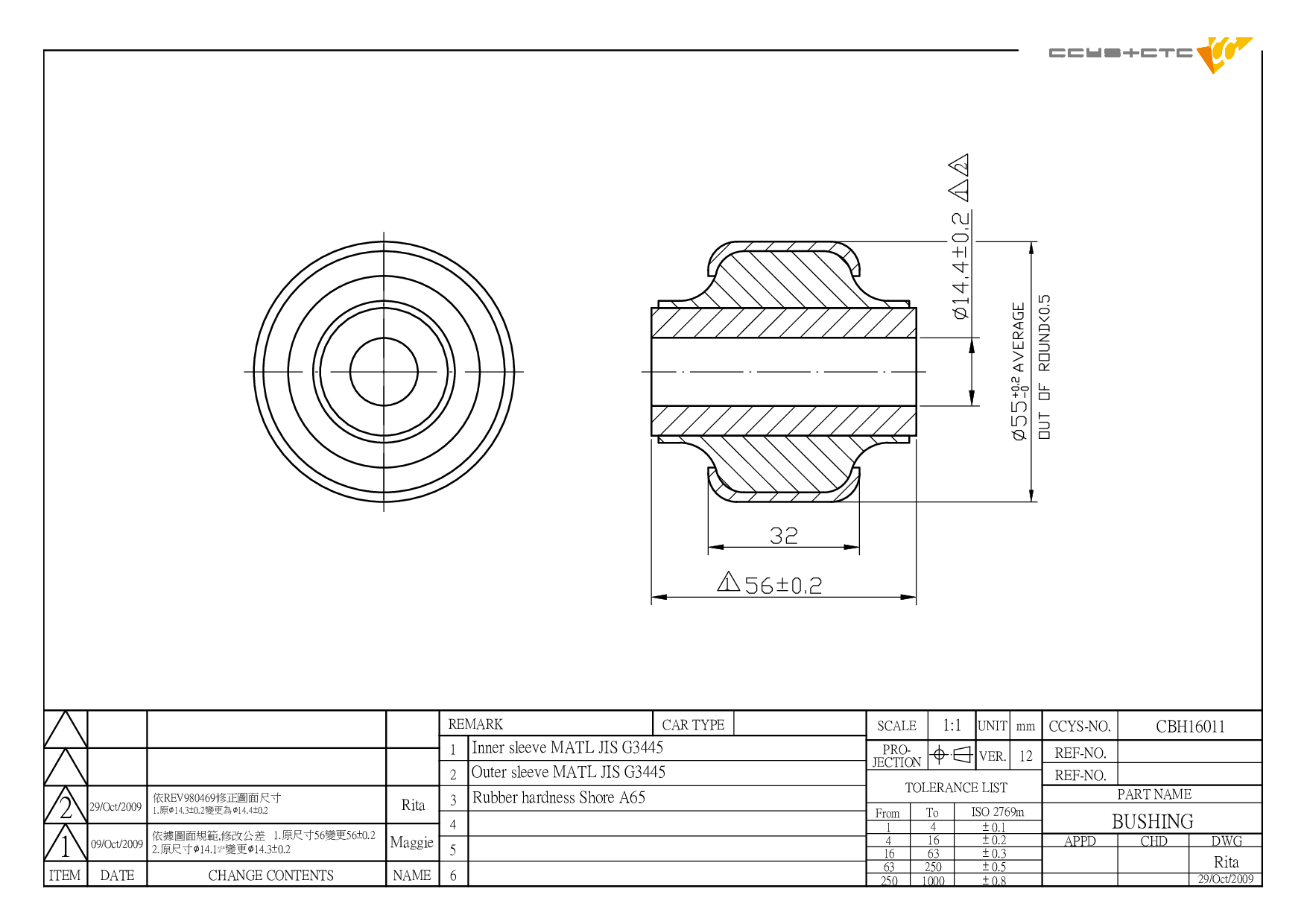

Rubber Bushing

PEUGEOT / 3008 I MPV (0U_) / Rubber Bushing / FRONT LOWER ARM INNER / CBH16011

Technical Specification Matrix

CBH16011 是 PEUGEOT 專用的橡膠襯套 (FRONT LOWER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 3523.91,3523.AJ,3523.CW,96 719 188 80。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)	3523.91 3523.AJ 3523.CW 96 719 188 80
Length	55 mm
Width	55 mm
Height	56 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH16009	FRONT LOWER ARM REAR	3523.77 3523.92
CBH16011	FRONT LOWER ARM INNER	3523.91 3523.AJ 3523.CW 96 719 188 80
CRE25002	D= M14X1.5 , C= M14X1.5	3812.E0
CS-1604L	FRONT LOWER LH	16 073 145 80 16 431 885 80 3520.K8 3520.N5 3520.P3 3520.S2 3520.T0 E 455 005
CS-1604R	FRONT LOWER RH	16 073 146 80 16 431 889 80 3521.G8 3521.J5 3521.K3 3521.P3 3521.Q1 E 455 006
CSL16013	FRONT (A= 334MM)	16 073 250 80 1610930280 1614281180 5087.50 5087.57 5087.62 5087.64 5087.77 5087.78 9804947480 E459715

Model (Year)
3008 I MPV (0U_) 3008 Van (0U_) 307 (3A/C) 307 Break (3E) 307 CC (3B) 307 SW (3H) 308 CC (4B_) 308 I (4A_, 4C_) 308 SW I (4E_, 4H_) 5008 (0U_, 0E_) 5008 I Van (0U_) PARTNER Box Body/MPV PARTNER Box Body/MPV (5_, G_) \| RANCH PARTNER MPV (5_, G_) \| RANCH PARTNER Platform/Chassis PARTNER TEPEE \| GRAND RAID

Model (Year)
BERLINGO / BERLINGO FIRST Box Body/MPV (M_) BERLINGO Box Body/MPV (B9) BERLINGO MULTISPACE (B9) BERLINGO Platform/Chassis (B9) C3 II (SC_) C4 CACTUS C4 Coupe (LA_) C4 GRAND PICASSO I (UA_) C4 I (LC_) C4 I Hatchback Van (LR_) C4 I Saloon C4 II (NC_) C4 II Hatchback Van (NC_) C4 PICASSO I MPV (UD_) DS4 (NX_) DS5

Model (Year)
DS 4 / DS 4 CROSSBACK (NX_)
