Rubber Bushing

RENAULT / MASTER I Bus (T__) / Rubber Bushing / FRONT LOWER ARM REAR / CBH15020

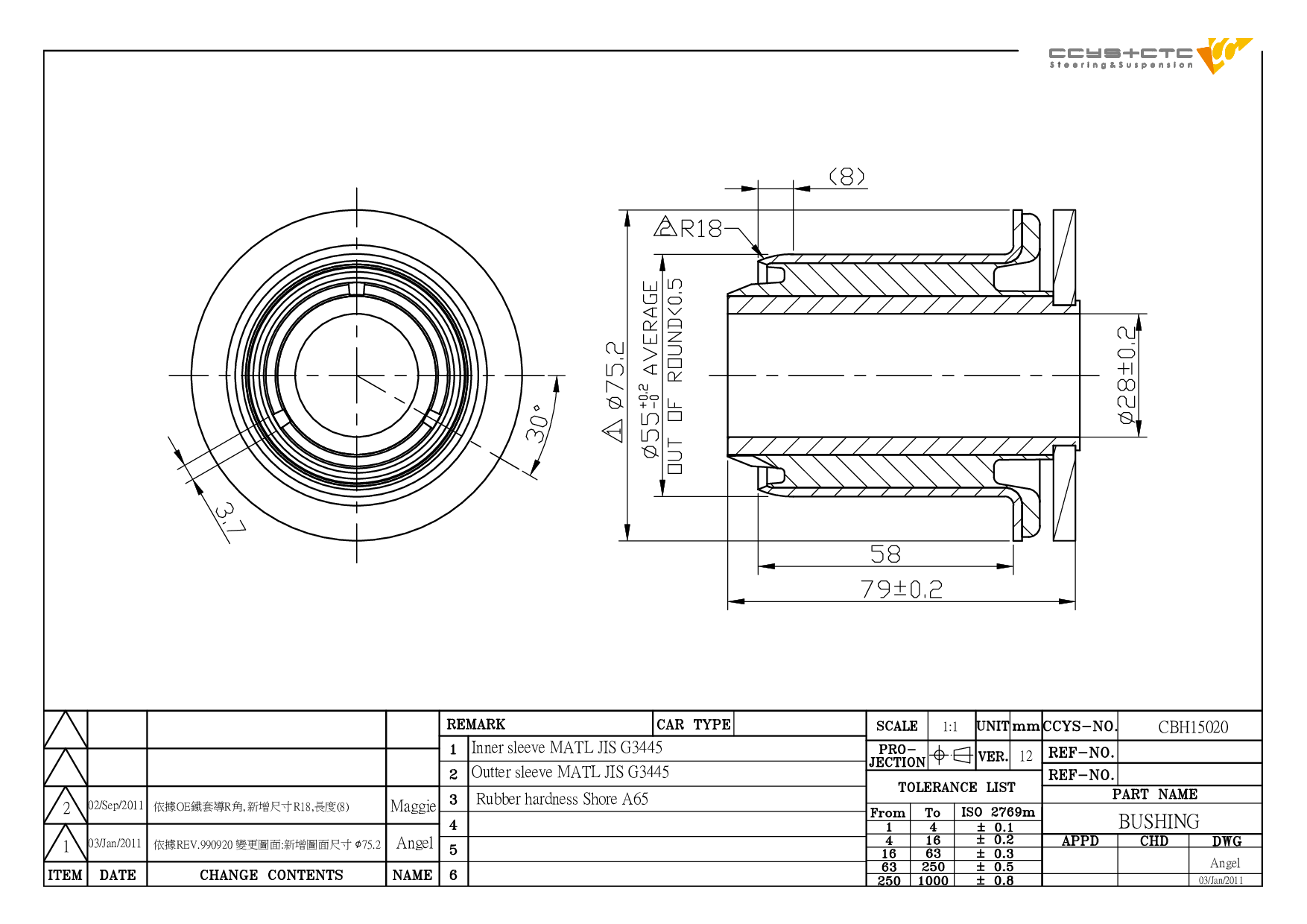

Technical Specification Matrix

CBH15020 是 RENAULT 專用的橡膠襯套 (FRONT LOWER ARM REAR)。本產品為 OEM 規格替代零件，適配原廠料號 4500095,54423-00QAA,77 00 302 123,77 00 302 440,9160395。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM REAR
OE 替代料號 (Original Equipment Numbers)	4500095 54423-00QAA 77 00 302 123 77 00 302 440 9160395
Length	75 mm
Width	75 mm
Height	79 mm
Net Weight	0.6 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH15020	FRONT LOWER ARM REAR	4500095 54423-00QAA 77 00 302 123 77 00 302 440 9160395
CBH15021	FRONT LOWER ARM INNER	4500094 54570-00QAA 77 00 302 122 77 00 302 439 9160394
CBJ15009	FRONT LOWER LH/ RH	40160-000AC 40160-000AD 40160-00QAC 40160-00QAD 44 01 909 4401909 45 00 255 4500255 77 00 312 852 77 01 056 969 9109909 9160555
CS-1512L	FRONT LOWER LH	4401852 4401940 4404047 4418212 4500092 5450100Q0C 5450100QAC 5450100QAD 5450100QAE 6006003102 7700302118 7700309189 7700625732 7700705254 7700712988 82 00 767 822 8200256944 8200270055 9109852 9109940 9112047 9160392 93192689
CS-1512R	FRONT LOWER RH	4401853 4401941 4404048 4418213 4500093 5450000Q0C 5450000QAC 5450000QAD 5450000QAE 6006003103 7700302119 7700309190 7700625733 7700705255 7700712989 82 00 767 825 8200256945 8200270058 9109853 9109941 9112048 9160393 93192690
CSL06078L	FRONT AXLE LH	009160498 09160498 093192673 4418192 45 00 198 54616-00Q0C 54616-00QAB 77 00 302 165 77 00 309 070 82 00 713 522 9160498 93192673
CSL06078R	FRONT AXLE RH	009160499 09160499 093192674 44 18 193 45 00 199 51618-00Q0A 54618-00QAA 77 00 307 343 77 00 309 071 82 00 713 523 9160499 93192674

Model (Year)
MASTER I Bus (T__) MASTER I Platform/Chassis (P__) MASTER I Van (T__) MASTER II Bus (JD) MASTER II Platform/Chassis (ED/HD/UD) MASTER II Van (FD) MASTER III Bus (JV) MASTER III Platform/Chassis (EV, HV, UV) MASTER III Van (FV)

Model (Year)
MOVANO A Bus (X70) MOVANO A Platform/Chassis (X70) MOVANO A Van (X70)
