Rubber Bushing

RENAULT / LAGUNA II (BG0/1_) / Rubber Bushing / REAR SUBFRAME LH / CBH10005

Name: CBH10005
Brand: CTE
SKU: CBH10005
Price: 802.00 TWD
Availability: InStock

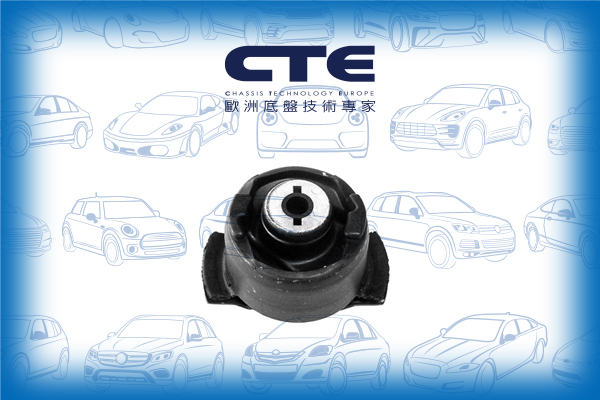

Rubber Bushing/RENAULT/LAGUNA II (BG0/1_)/LAGUNA II Grandtour (KG0/1_)/LAGUNA III (BT0/1)

Technical Specification Matrix

CBH10005 是 RENAULT 專用的橡膠襯套 (REAR SUBFRAME LH)。本產品為 OEM 規格替代零件，適配原廠料號 77 00 415 488,77 00 416 271,82 00 051 812,82 00 400 000,82 00 427 868,82 00 597 259,82 00 714 955。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	REAR SUBFRAME LH
OE 替代料號 (Original Equipment Numbers)	77 00 415 488 77 00 416 271 82 00 051 812 82 00 400 000 82 00 427 868 82 00 597 259 82 00 714 955
Length	106 mm
Width	106 mm
Height	73 mm
Net Weight	0.6 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH10005	REAR SUBFRAME LH	77 00 415 488 77 00 416 271 82 00 051 812 82 00 400 000 82 00 427 868 82 00 597 259 82 00 714 955

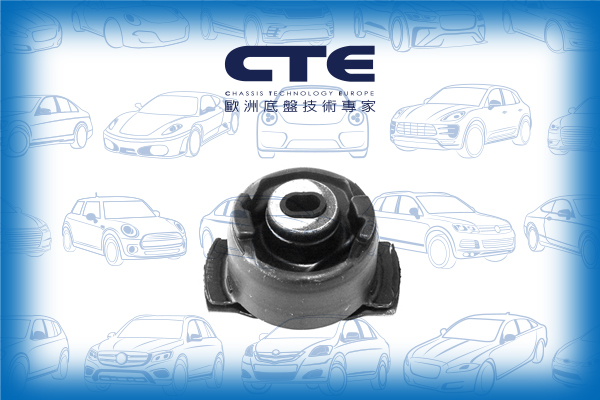

CBH10006	REAR SUBFRAME RH	82 00 051 813 82 00 427 869 82 00 597 258 82 00 714 956

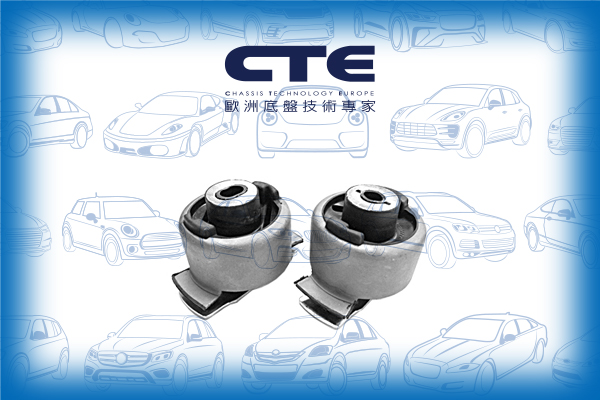

CBH10007	REAR SUBFRAME LH/ RH (2 PCS KIT)	77 00 415 488 77 00 416 271 77 01 209 534 82 00 051 812 82 00 051 813 82 00 400 000 82 00 427 868 82 00 427 869 82 00 597 258 82 00 597 259 82 00 714 955 82 00 714 956
CBH10008	FRONT LOWER ARM REAR	54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 82 00 002 869 82 00 049 626 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 82 00 458 813 82 00 458 814 82 00 484 810 82 00 484 811 82 00 602 616 82
CBH10009	FRONT LOWER ARM INNER	54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 82 00 002 868 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 82 00 458 813 82 00 458 814 82 00 484 810 82 00 484 811 82 00 602 616 82 00 602 617 82
CBJ15005A	FRONT LOWER LH/ RH	40 16 066 76R 40160-00Q0C 40160-00Q0G 44 19 075 44 22 183 54 50 184 33R 54 50 481 01R 54 50 508 04R 54 50 510 51R 60 40 002 105 77 01 476 576 77 01 478 029 82 00 204 837 82 00 204 838 82 00 266 038 82 00 266 041 82 00 423 380 82 00 423 381 82 00 423 382 8
CRE10003	D= M14X1.5 , C= M12X1.0	77 01 472 766 77 01 478 551
CS-1005L	FRONT LOWER LH	54 50 168 05R 82 00 026 654 82 00 232 030 82 00 273 728 82 00 389 134 82 00 452 715 82 00 602 612
CS-1005R	FRONT LOWER RH	54 50 020 29R 82 00 026 655 82 00 232 032 82 00 273 729 82 00 389 135 82 00 452 716 82 00 602 613
CSL15013	FRONT (A= 279MM)	44 07 573 44 08 904 44 17 973 54616-00Q0A 54616-00Q0J 54616-00Q1C 54616-00Q1F 54616-00QAC 546180393R 546181944R 6000640472 7711160426 82 00 002 870 8200661217 8660005547 91167000 93450030 93858917
