Rubber Bushing

SUZUKI / SWIFT II Hatchback (EA, MA) | CULTUS / Rubber Bushing / REAR LINK / CBH07007

Name: CBH07007
Brand: CTE
SKU: CBH07007
Price: 124.00 TWD
Availability: InStock

Rubber Bushing/SUZUKI/BALENO (EG)/BALENO Estate (EG)/BALENO Hatchback (EG)/SWIFT II Saloon (AH, AJ)

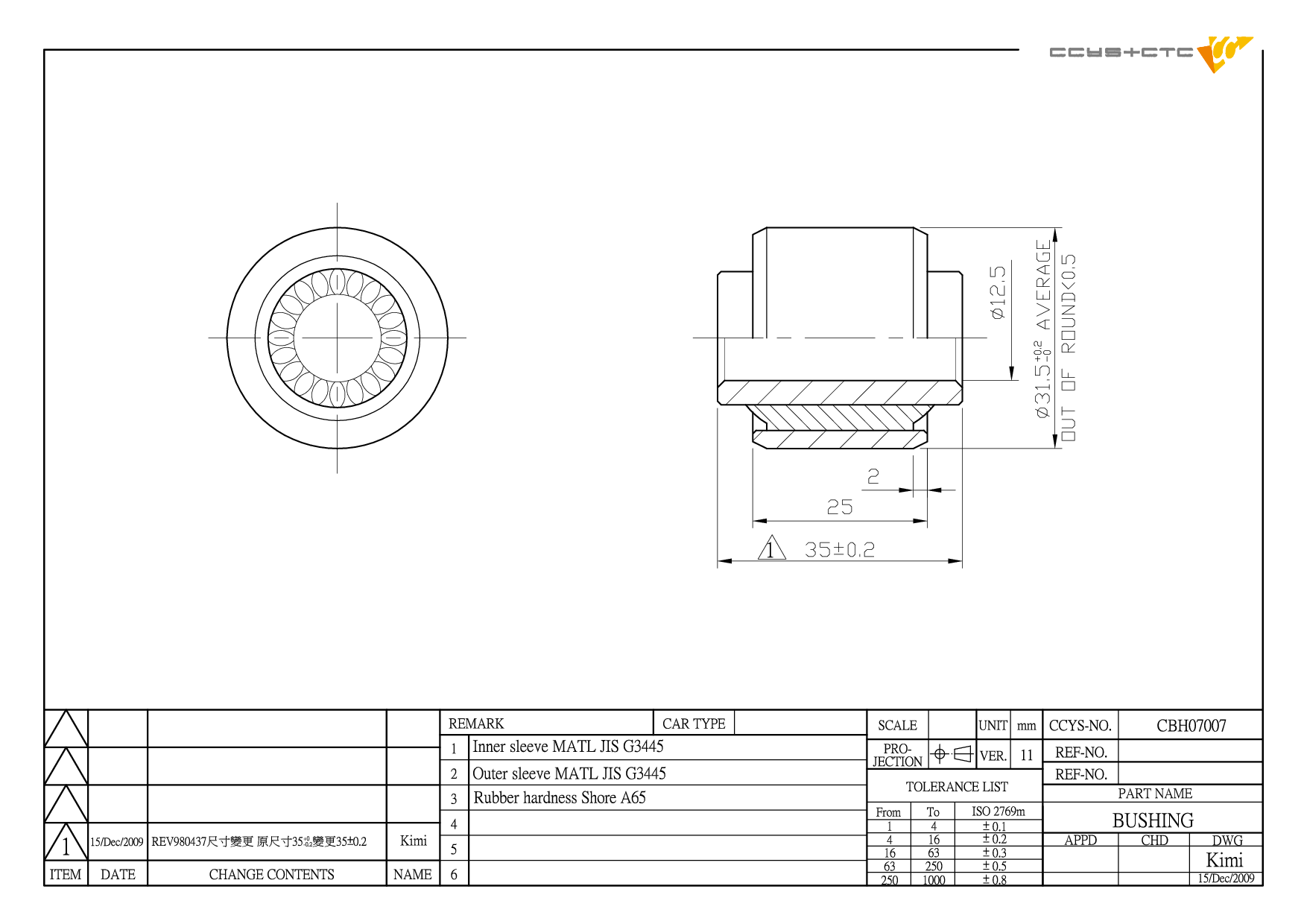

Technical Specification Matrix

CBH07007 是 SUZUKI 專用的橡膠襯套 (REAR LINK)。本產品為 OEM 規格替代零件，適配原廠料號 46300-60B00,46300-60B00-000,46300-60B01,46300-60B01-000,46300-60B10,46300-60B10-000,46300-70C00,46300-70C00-000,46300-70C01,46300-70C01-000,46300-70C02,46300-70C02-000。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	REAR LINK
OE 替代料號 (Original Equipment Numbers)	46300-60B00 46300-60B00-000 46300-60B01 46300-60B01-000 46300-60B10 46300-60B10-000 46300-70C00 46300-70C00-000 46300-70C01 46300-70C01-000 46300-70C02 46300-70C02-000
Length	32 mm
Width	32 mm
Height	35 mm
Net Weight	0.1 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.
CBH07003	FRONT LOWER ARM REAR	45540-60B01 45540-60B01-000 45540-60B02 45540-60B02-000 45540-60E00 45540-60E00-000
CBH07004	FRONT LOWER ARM INNER	45530-50G00 45530-50G00-000 45530-60B00 45530-70C00
CBH07007	REAR LINK	46300-60B00 46300-60B00-000 46300-60B01 46300-60B01-000 46300-60B10 46300-60B10-000 46300-70C00 46300-70C00-000 46300-70C01 46300-70C01-000 46300-70C02 46300-70C02-000
CRE07004	D= M12X1.25 , C= M14X1.5	48830-20B00 48830-60B00 48830-60B00-000 48830-60B20 96060605
CRE07005	D= M12X1.25 , C= M17X1.0	48830-50G10 48830-60B10
CRE07006	D= M12X1.25 , C= M14X1.5	48830-63B00 48830-63B00-000 48830-82000 48830-82000-000 96052292
CRE07008	D= M12X1.25 , C= M14X1.5	48830-60G00 48830-60G00A
CS-705L	FRONT LOWER LH	45200-60820 45200-60820-000 45200-60821 45200-60821-000 45200-60822 45200-60822-000 45202-50G10 45202-60B00 45202-60B01 45202-60B01-000 45202-60E00 45202-60E00-000 45202-60E01 45202-60E01-000 45202-70C00 45202-70C00-000
CS-705R	FRONT LOWER RH	45200-60810 45200-60810-000 45200-60811 45200-60811-000 45200-60812 45200-60812-000 45201-50G10 45201-60B00 45201-60B01 45201-60B01-000 45201-60E00 45201-60E00-000 45201-60E01 45201-60E01-000 45201-70C00 45201-70C00-000
CS-710	REAR AXLE LINK LH/ RH	46300-60B00 46300-60B00-000 46300-60B01 46300-60B01-000 46300-60B10 46300-60B10-000 46300-70C00 46300-70C00-000 46300-70C01 46300-70C01-000 46300-70C02 46300-70C02-000
CSL07003	FRONT (A= 86MM)	46630-60B00 46630-60B00-000 46630-60B01 46630-60B01-000 46630-60B10 46630-60G00 54618-50A00
CTE07001	FRONT AXLE LH/RH (C= M12X1.25)	1A01-32-280 48520-4A0A0 48810-50G10 48810-50G20 48810-60B00 48810-76G00 48810-82000 91175475 96052290
