Rubber Bushing

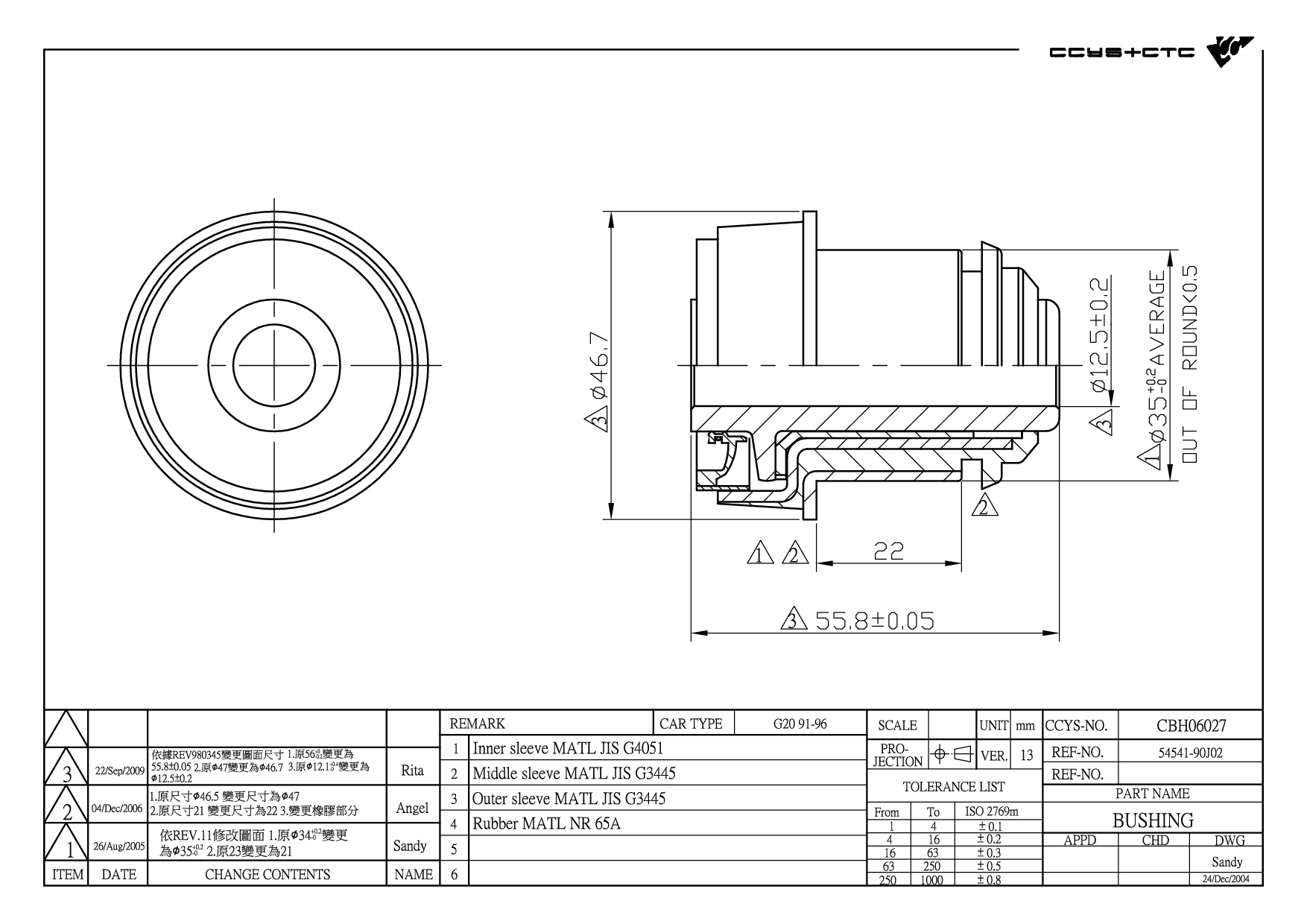

NISSAN / PRIMERA (P10) / Rubber Bushing / FRONT UPPER ARM OUTER (ROTATING SLEEVE) / CBH06027

Technical Specification Matrix

CBH06027 是 NISSAN 專用的橡膠襯套 (FRONT UPPER ARM OUTER (ROTATING SLEEVE))。本產品為 OEM 規格替代零件，適配原廠料號 54541-90J02。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT UPPER ARM OUTER (ROTATING SLEEVE)
OE 替代料號 (Original Equipment Numbers)	54541-90J02
Length	47 mm
Width	47 mm
Height	56 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH06027	FRONT UPPER ARM OUTER (ROTATING SLEEVE)	54541-90J02
CBJ06005	FRONT LOWER LH/ RH	1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600
CRE06032	FRONT AXLE LH/ RH	15869898 48521-4B000 48521-4Z001
CRE06056	FRONT AXLE LH/ RH	48521-AG000 48521-AG185 48521-CB025 48521-CB026 48521-CB027
CRE06083	FRONT AXLE LH/ RH	48521-4B000 48521-4Z001
CS-626L	FRONT LOWER LH	54501-2F500 54501-9F500
CS-626R	FRONT LOWER RH	54500-2F500 54500-9F500
CS-630L	FRONT UPPER LH	54525-2F000 54525-2F010 54525-2J001 54525-3F010 54525-3J201 54525-50J00 54525-65J00 54525-86J01 54525-86J02 54525-86J10 54525-90J00 54525-90J10 54525-90J20 54525-90J21
CS-630R	FRONT UPPER RH	54524-2F000 54524-2F010 54524-2J001 54524-3F010 54524-3J201 54524-50J00 54524-65J00 54524-86J01 54524-86J02 54524-86J10 54524-90J00 54524-90J10 54524-90J20 54524-90J21
