Rubber Bushing

NISSAN / ALTIMA (L30) / Rubber Bushing / FRONT LOWER ARM INNER / CBH06017

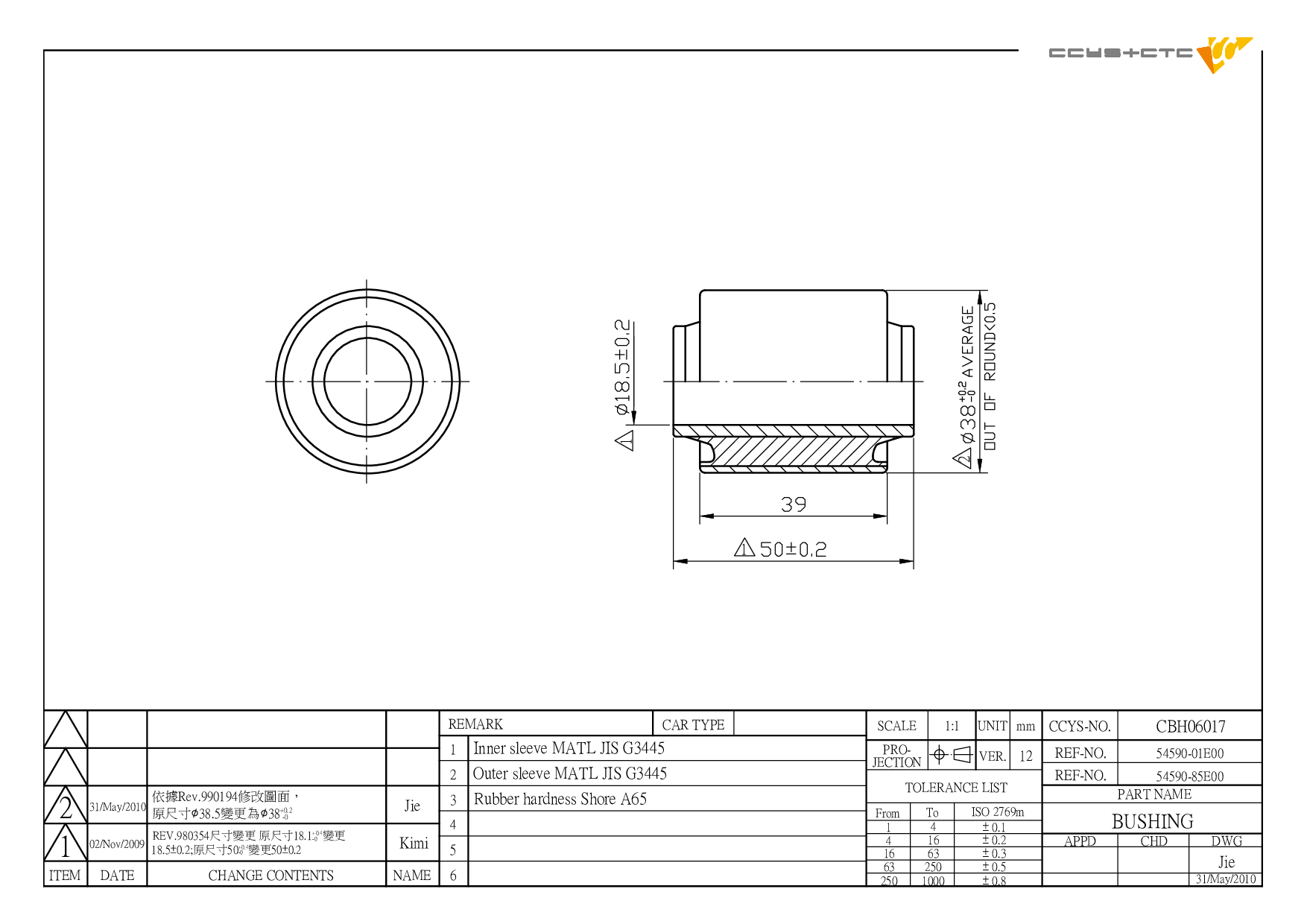

Technical Specification Matrix

CBH06017 是 NISSAN 專用的橡膠襯套 (FRONT LOWER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 54590-01E00,54590-85E00。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM INNER
OE 替代料號 (Original Equipment Numbers)	54590-01E00 54590-85E00
Length	38 mm
Width	38 mm
Height	50 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH06017	FRONT LOWER ARM INNER	54590-01E00 54590-85E00
CBH06027	FRONT UPPER ARM OUTER (ROTATING SLEEVE)	54541-90J02
CBJ06005	FRONT LOWER LH/ RH	1N11-34-300 1N11-34-350 40160-4M400 40160-4M410 40160-4M411 40160-4M700 40160-4Z011 40160-50A00 40160-50J25 40160-60Y60 40160-69C00 40160-6M000 40160-70J00 40160-86M00 40160-F4600 40160-J7500 54500-WA600 54501-WA600
CRE06032	FRONT AXLE LH/ RH	15869898 48521-4B000 48521-4Z001
CS-630L	FRONT UPPER LH	54525-2F000 54525-2F010 54525-2J001 54525-3F010 54525-3J201 54525-50J00 54525-65J00 54525-86J01 54525-86J02 54525-86J10 54525-90J00 54525-90J10 54525-90J20 54525-90J21
CS-630R	FRONT UPPER RH	54524-2F000 54524-2F010 54524-2J001 54524-3F010 54524-3J201 54524-50J00 54524-65J00 54524-86J01 54524-86J02 54524-86J10 54524-90J00 54524-90J10 54524-90J20 54524-90J21
CSL06008	REAR (A= 116MM)	15196366 56261-50J00 56261-86J00 56261-86J25 56261-90J01 56262-50J00 8-97214-822-0 8-97214-822-1 8-97944-575-0 97944575
CSL06027	REAR (A= 165MM)	54618-50J10 54618-50J11 54618-50J20 54618-50J21 54618-50J60 56260-01J10

Model (Year)
ALTIMA (L30) ALTIMA (L31) ALTIMA (L32) BLUEBIRD (T72 , T12, U12) BLUEBIRD (U11) BLUEBIRD Hatchback (T72, T12) BLUEBIRD Station Wagon (WU11) MAXIMA III (J30) PRIMERA (P10) PRIMERA (P11) PRIMERA Hatchback (P10) PRIMERA Traveller (W10)

Model (Year)
G20
