Rubber Bushing

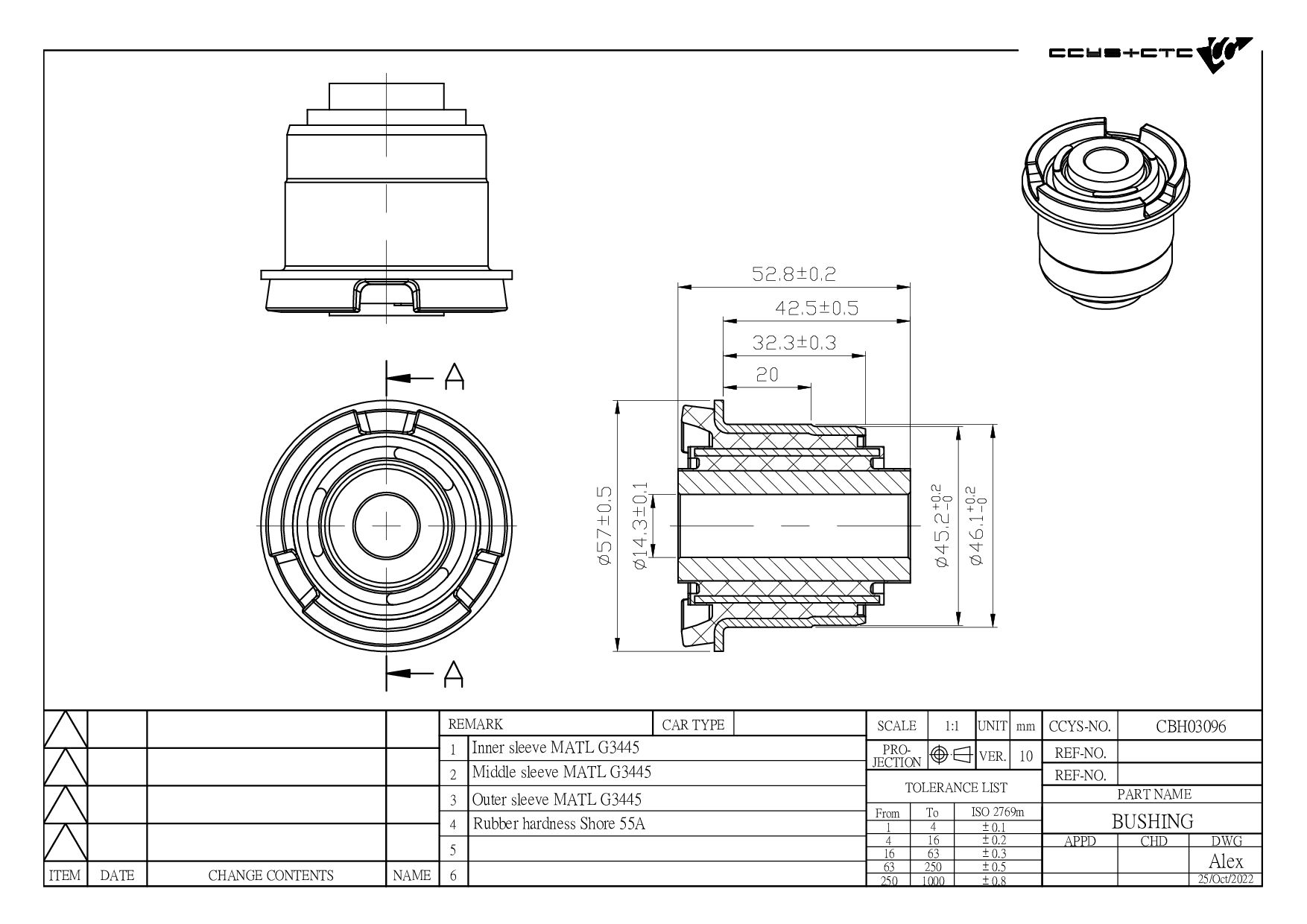

MAZDA / BT-50 II Pickup (B22, B32, UP, UR) / Rubber Bushing / FRONT UPPER ARM INNER / CBH03096

Technical Specification Matrix

CBH03096 是 MAZDA 專用的橡膠襯套 (FRONT UPPER ARM INNER)。本產品為 OEM 規格替代零件，適配原廠料號 1727222,AB313068BB,UC3C34470A。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT UPPER ARM INNER
OE 替代料號 (Original Equipment Numbers)	1727222 AB313068BB UC3C34470A
Length	57 mm
Width	57 mm
Height	53 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03096	FRONT UPPER ARM INNER	1727222 AB313068BB UC3C34470A
CBH03100	FRONT LOWER ARM INNER	1723680 1727929 1728877 1731076 1733522 1813944 1813948 1921743 1921744 1921748 1921750 1D0134300A 1D0134350A 2008323 2008324 2008331 2008333 5349275 5349276 AB313078AF AB313078AG AB313078AH AB313079AF AB313079AG AB313079AH EB3C 3078 B1B EB3C 3079 B1B EB3
CRE03083	FRONT AXLE LH/ RH	1732879 1775547 UC2M-32-24X UC2M-32-24XA
CS-373L	FRONT UPPER LH	1731006 1921758 1944898 2008535 2278487 5232167 AB313091BD DB393091BA EB3C 3091 B1B EB3C3091B1A UC3C 34 250D UL0R 34 250
CS-373R	FRONT UPPER RH	1723681 1725696 1921755 1944902 2008532 2278485 5232166 AB313084BA AB313084BD DB393084BA EB3C 3084 B1B UC3C 34 200D UL0R 34 200
CS-374L	FRONT LOWER LH	1723680 1727929 1728877 1731076 1813948 1921748 1921750 1D0134350A 2008324 2008333 5349276 AB313079AF AB313079AG AB313079AH EB3C 3079 B1B EB3C3079C1B UC2R34350E UC2R34350F
CS-374R	FRONT LOWER RH	1733522 1813944 1921743 1921744 1D0134300A 2008323 2008331 5349275 AB313078AF AB313078AG AB313078AH EB3C 3078 B1B EB3C3078C1B UC2R34300E UC2R34300F
CSL03070L	FRONT AXLE LH	1732874 2 113 322 AB313053CA EB3C-3053-BA UC7C-34-170
CSL03070R	FRONT AXLE RH	1732872 2 113 320 AB313052CA EB3C-3052-BA UC7C-34-150

Model (Year)
BT-50 II Pickup (B22, B32, UP, UR) BT-50 Platform/Chassis (B22, B32, UP, UR)

Model (Year)
RANGER (TKE)

Model (Year)
RANGER Crew Cab Pickup
