Rubber Bushing

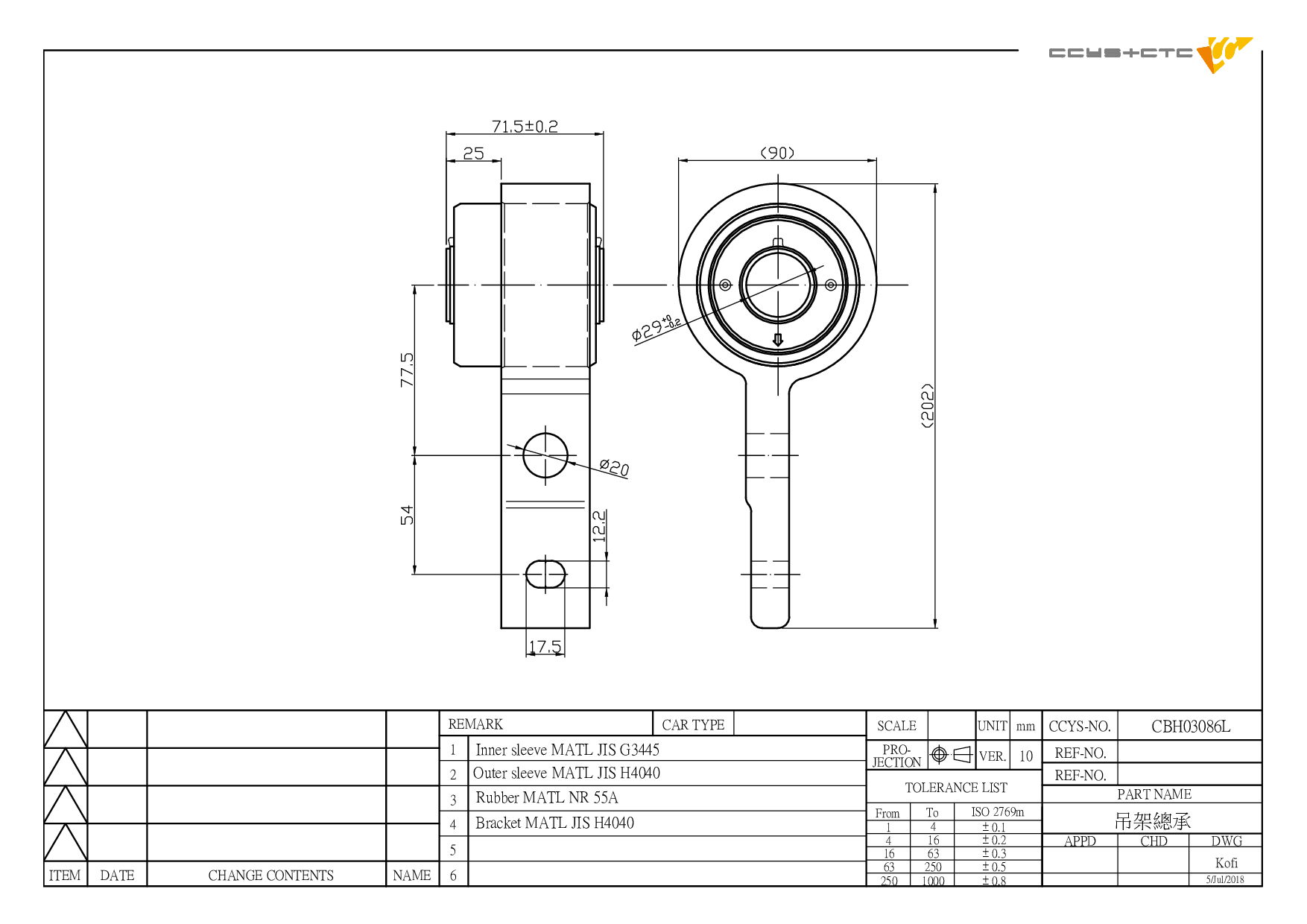

MAZDA / 6 Estate (GH) | ATENZA / Rubber Bushing / FRONT LOWER ARM LH / CBH03086L

Technical Specification Matrix

CBH03086L 是 MAZDA 專用的橡膠襯套 (FRONT LOWER ARM LH)。本產品為 OEM 規格替代零件，適配原廠料號。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM LH
OE 替代料號 (Original Equipment Numbers)
Length	195 mm
Width	83 mm
Height	33 mm
Net Weight	0.9 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03051	FRONT UPPER ARM INNER	GEA1-34-200 GEA1-34-250 GJ6A-34-200A GJ6A-34-200B GJ6A-34-250A GJ6A-34-250B GP9A-34-200 GP9A-34-200A GP9A-34-200B GP9A-34-200C GP9A-34-250 GP9A-34-250A GP9A-34-250B GP9A-34-250C GS1D-34-200A GS1D-34-200B GS1D-34-200C GS1D-34-250A GS1D-34-250B GS1D-34-250C
CBH03086L	FRONT LOWER ARM LH
CBH03086R	FRONT LOWER ARM RH
CBH03099	REAR LOWER ARM INNER	GS1D-28-300B GS1D-28-300C GS1D-28-350B GS1D-28-350C GSY1-28-300 GSY1-28-350
CBJ03019	FRONT UPPER LH/RH	G39A-34-200 G39A-34-250 GEA1-34-200 GEA1-34-250 GG3P-34-200 GG3P-34-200A GG3P-34-200B GG3P-34-250A GG3P-34-250B GJ6A-34-200A GJ6A-34-200B GJ6A-34-250A GJ6A-34-250B GK2A-34-200A GK2A-34-200B GK2A-34-200C GK2A-34-250A GK2A-34-250B GK2A-34-250C GP9A-34-200 G
CRE03059	FRONT AXLE LH/ RH	GS1D-32-240
CS-367L	FRONT LOWER LH	GS1D-34-350G GS1D-34-350H GS1D-34-350J GS1D-34-350K GS1D-34-350L GS1D-34-710B
CS-367R	FRONT LOWER RH	GS1D-34-300G GS1D-34-300H GS1D-34-300J GS1D-34-300K GS1D-34-300L GS1D-34-470A
CS-368L	REAR LOWER LH	GS1D-28-350B GS1D-28-350C GSY1-28-350
CS-368R	REAR LOWER RH	GS1D-28-300B GS1D-28-300C GSY1-28-300
CS-385L	FRONT UPPER LH	GS1D-34-250 GS1D-34-250A GS1D-34-250B GS1D-35-250C
CS-385R	FRONT UPPER RH	GS1D-34-200 GS1D-34-200A GS1D-34-200B GS1D-34-200C
CSL03034L	FRONT LH (A= 155MM)	GJ6A-34-170A GK2A-34-170 GS1D-34-170
CSL03034R	FRONT RH (A= 155MM)	GJ6A-34-150A GK2A-34-150A GS1D-34-150
CSL03072	REAR AXLE LH/ RH	GS1D-28-170
