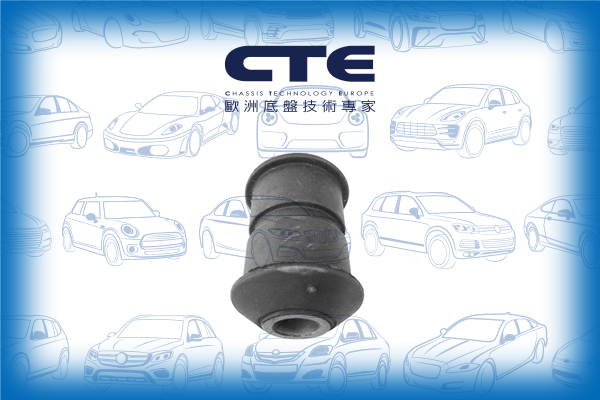

Rubber Bushing

FORD / TOURNEO CONNECT | TRANSIT CONNECT / Rubber Bushing / LOWER FRONT AXLE LEFT/RIGHT / CBH03056

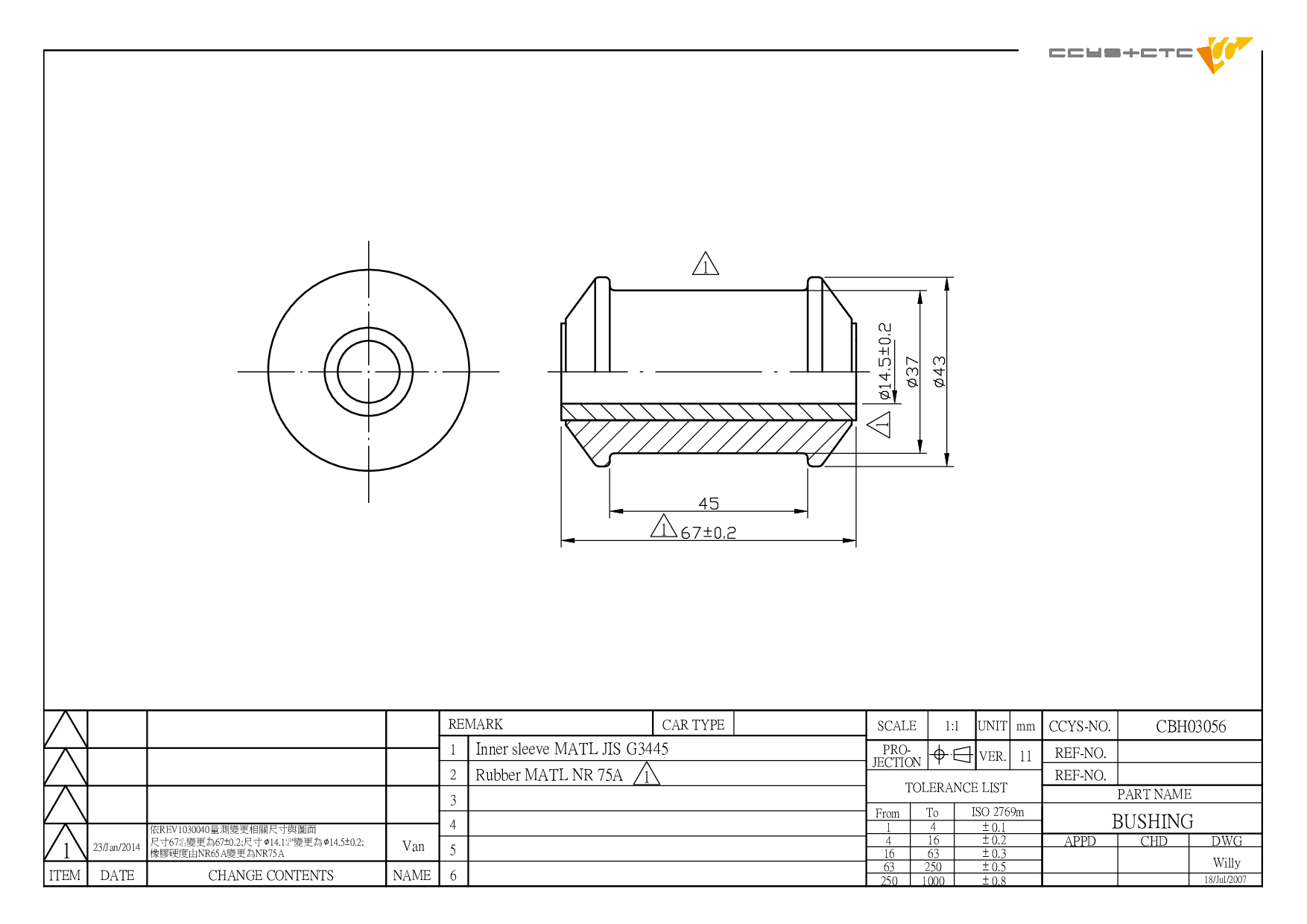

Technical Specification Matrix

CBH03056 是 FORD 專用的橡膠襯套 (LOWER FRONT AXLE LEFT/RIGHT)。本產品為 OEM 規格替代零件，適配原廠料號 4131788。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	LOWER FRONT AXLE LEFT/RIGHT
OE 替代料號 (Original Equipment Numbers)	4131788
Length	43 mm
Width	43 mm
Height	67 mm
Net Weight	0.2 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03055	FRONT LOWER ARM REAR	1495717 4042024 4372132 4540787 6C16 3A262 AA YC15 3A262 AD YC15 3A262 AE YC15 3A262 AF
CBH03056	LOWER FRONT AXLE LEFT/RIGHT	4131788
CRE03050L	LH D= M16X1.5 , C= M16X1.5	1370709 4059923 4602028 6C11-3L519-AA YC15-3L519-AA YC15-3L519-AB
CRE03050R	RH D= M16X1.5 , C= M20X1.5	1370710 4059924 4577976 6C11-3L519-BA YC15-3L519-BA YC15-3L519-BB
CS-345L	FRONT LOWER LH	1438318 1438350 1495667 1553251 1735890 4042023 4140394 4164521 4372131 4540775 6C113A053EA 6C113A053EB 6C113A053FA 6C113A053FB 6C113A053FC YC153A053AH YC153A053AJ YC153A053AK YC153A053AL YC153A053AM
CS-345R	FRONT LOWER RH	1438315 1438316 1495666 1553246 1735889 4042022 4140393 4164518 4372130 4540774 6C113A042EA 6C113A052EA 6C113A052EB 6C113A052FC YC153A052AH YC153A052AJ YC153A052AL YC153A052AM
CS-365L	FRONT LOWER LH (H/DUTY)	1371228 1438254 1495684 1553250 6C11 3A053 BA 6C11 3A053 BB 6C11 3A053 BC 6C11 3A053 BD
CS-365R	FRONT LOWER RH (H/DUTY)	1371231 1438253 1495683 1553239 6C11 3A052 BA 6C11 3A052 BB 6C11 3A052 BC 6C11 3A052 BD
CSL03065	FRONT AXLE LH/RH	1495685 1763714 2033148 3C11-3B438-AC 3C11-3B438-AD 4519467 BK21-3B438-AA BK21-3B438-AB
