Rubber Bushing

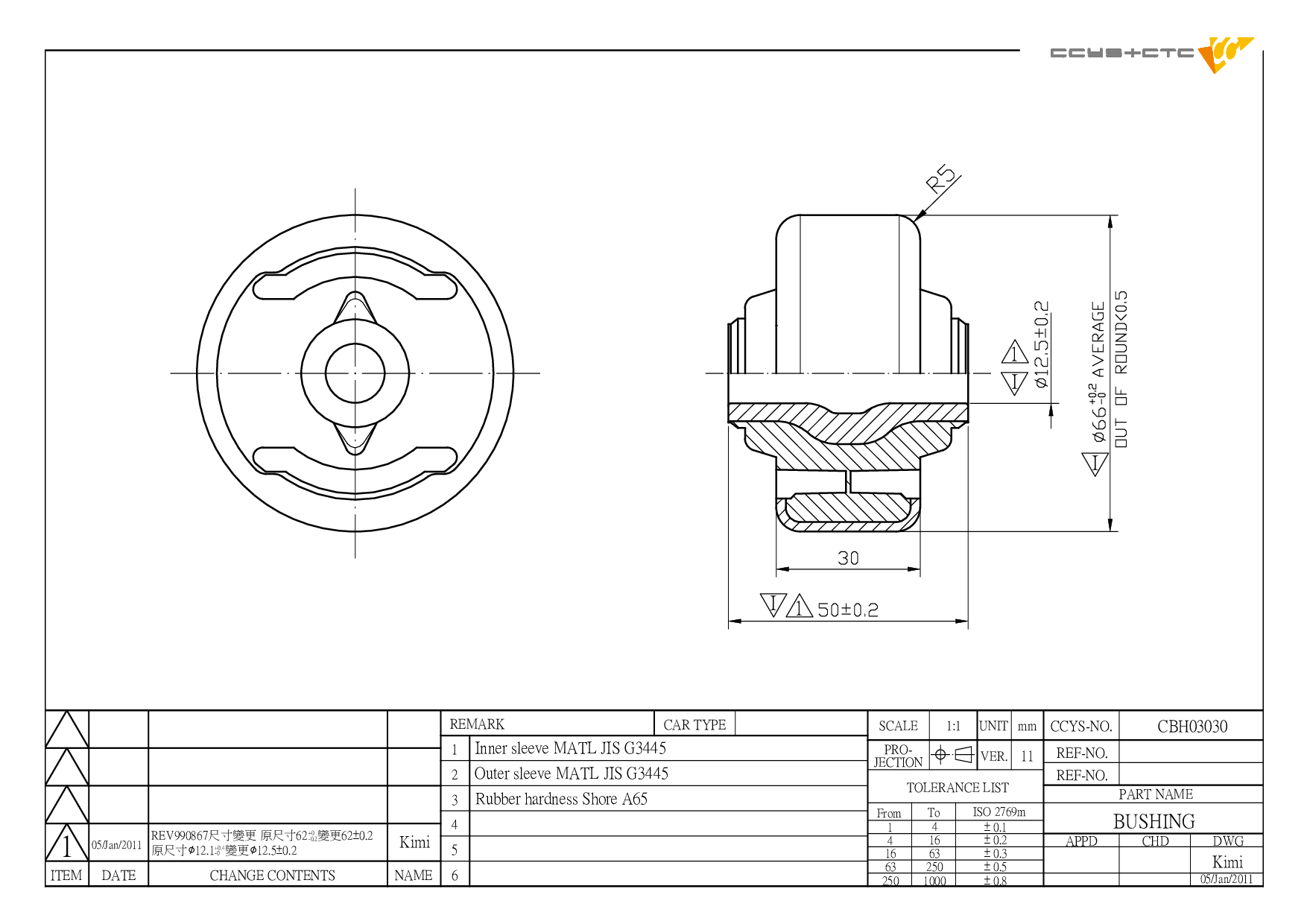

MAZDA / 121 III (JASM, JBSM) / Rubber Bushing / FRONT LOWER ARM REAR / CBH03030

Technical Specification Matrix

CBH03030 是 MAZDA 專用的橡膠襯套 (FRONT LOWER ARM REAR)。本產品為 OEM 規格替代零件，適配原廠料號 1004011,1014654,1063372,1E01-34153-A,96FB-3A262-AA,98FB-3A262-AA。

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM REAR
OE 替代料號 (Original Equipment Numbers)	1004011 1014654 1063372 1E01-34153-A 96FB-3A262-AA 98FB-3A262-AA
Length	66 mm
Width	66 mm
Height	50 mm
Net Weight	0.3 kg

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

CTE No.	POSITION	OE No.
CBH03030	FRONT LOWER ARM REAR	1004011 1014654 1063372 1E01-34153-A 96FB-3A262-AA 98FB-3A262-AA
CBH03031	FRONT LOWER ARM INNER	1010037 1055191 1E00-34-153 1E00-34-153A 96FB-3063-AA 96FB-3063-AB
CBH03066	REAR ARM INNER	1011363 1016439 96FB-5K-653CA
CBJ03004A	FRONT LOWER LH/ RH	1030025 1047797 1679398 94FB-3B376-AA 94FB-3B376-AB ME96FB-3395-AA
CRE03049	D= M14X2.0 , C= M14X1.5	1044014 1E0032240 96FB3L519BA
CS-328L	FRONT LOWER LH	1003585 1009596 1015264 1021220 1045656 1052506 1058334 1063255 1072279 1330239 1710796 1E01-34-350 1E01-34-350A 1E01-34-350B 1E01-34-350C 1E01-34-350D 1E01-34-350E 1E01-34-350F 4S613051CA 96FB3051BF 96FB3051BG 98FB3051CC 98FB-3051-CD ME96FB3051CA
CS-328R	FRONT LOWER RH	1003575 1009580 1015260 1021219 1045655 1052505 1056835 1063236 1071694 1330238 1710792 1E01-34-300 1E01-34-300A 1E01-34-300B 1E01-34-300C 1E01-34-300D 1E01-34-300E 1E01-34-300F 4S613042CA 96FB3042BF 96FB3042BG 98FB3042CC 98FB-3042-CD ME96FB3042CA
CSL11001	FRONT (A= 238MM)	1661237 96FB-3B-438AB
