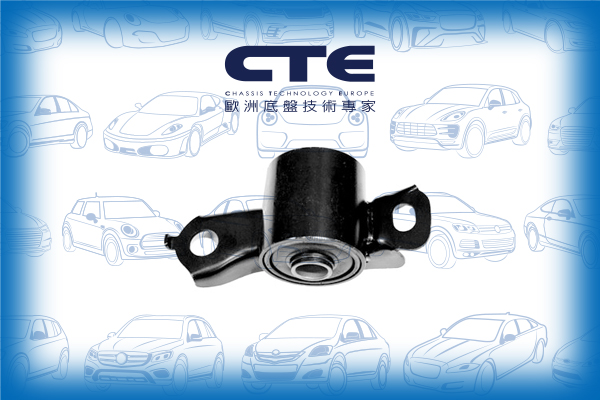

Rubber Bushing

MAZDA / 626 III (GD) | 626 / EUNOS 300 | TELSTAR / 626 / EUNOS 300 / Rubber Bushing / FRONT LOWER ARM RH REAR / CBH03012R

Name: CBH03012R
Brand: CTE
SKU: CBH03012R
Price: 642.00 TWD
Availability: InStock

Rubber Bushing/MAZDA/626 IV (GE) | 626 / CRONOS / EUNOS 500 / MS6 | CRONOS / TELSTAR/626 IV Hatchback (GE) | TELSTAR | 626 / CRONOS / MS6

Technical Specification Matrix

CBH03012R 是 MAZDA 專用的橡膠襯套 (FRONT LOWER ARM RH REAR)。本產品為 OEM 規格替代零件，適配原廠料號 3008741,3410585,GA2A-34-46XA,GA2A-34-46XB,GA2A-34-46XC,GA2A-34-46XD,GA2A-34-46XE。

更多相關商品

PARAMETER	METRIC / VALUE
Designation	Rubber Bushing
Position	FRONT LOWER ARM RH REAR
OE 替代料號 (Original Equipment Numbers)	3008741 3410585 GA2A-34-46XA GA2A-34-46XB GA2A-34-46XC GA2A-34-46XD GA2A-34-46XE
Length	70 mm
Width	70 mm
Height	161 mm
Net Weight	1.0 kg

Find More Auto Parts

快速找到適配您需要的專業零件

輸入廠牌、車款、車型年份或 17 位 VIN 碼，系統將自動比對原廠規格，為您精確鎖定愛車專用的適配零件。

Compatible Models

CTE No.	POSITION	OE No.

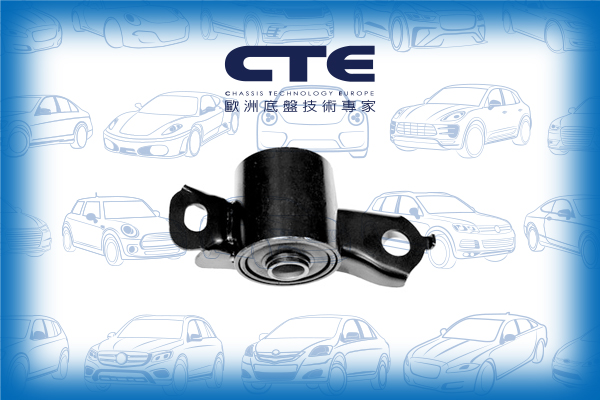

CBH03012L	FRONT LOWER ARM LH REAR	0K9A23446Y 3008739 3410586 GA2A-34-46YA GA2A-34-46YB GA2A-34-46YC GA2A-34-46YD GA2A-34-46YE
CBH03012R	FRONT LOWER ARM RH REAR	3008741 3410585 GA2A-34-46XA GA2A-34-46XB GA2A-34-46XC GA2A-34-46XD GA2A-34-46XE
CBH03013	FRONT LOWER ARM INNER	3 395 887 GA2A-34-470 GA2A-34-470A GA2B-34-470 GA2B-34-470A GD7B-34-470
CBJ03001	FRONT LOWER LH/ RH	0G030-34-550A 0G030-34-550B 3703149 54500-HA00B 54501-HA00B B25D-34-550 C5Y0-34-350 E112-99-300C G030-99-356 GA6A-99-356 GA6B-99-300E GA6B-99-350E GA6B-99-356A H001 99 356 LC62-34-550 LC62-99-300C M001-99-356A ZZC1-34-320
CRE03027	D= M14X1.5 , C= M18X1.5	3 405 940 4345261 F322 3280 A F32Z 3280 A GA2A-32-240 GA2A-32-240A GA2A-32-250 GA2A-32-250A GE4T-32-240 GE4T-32-240A GH2A-32-240

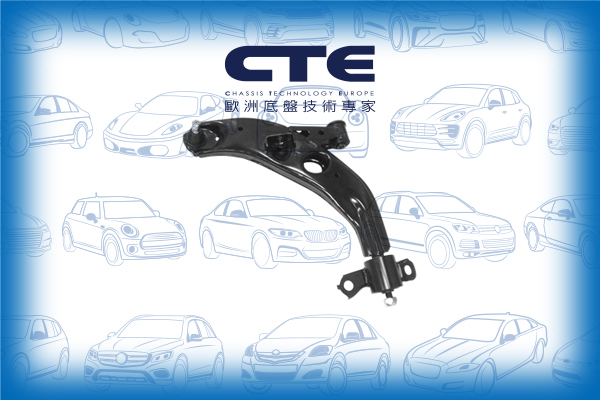

CS-309L	FRONT LOWER LH	3405938 3703255 GA2A-34-350 GA2A-34-350A GA2B-34-350 GA2B-34-350A GA6B-34-350 GA6B-34-350A GA6B-34-350B GA6B-34-350C GA6B-34-350E GA6BE-34-350

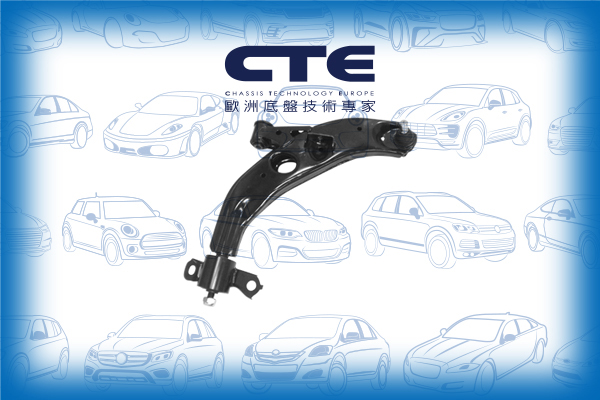

CS-309R	FRONT LOWER RH	3395889 3707090 GA2A-34-300 GA2A-34-300A GA2B-34-300 GA2B-34-300A GA6B-34-300 GA6B-34-300A GA6B-34-300B GA6B-34-300C GA6B-34-300D GA6B-34-300E GA6BE-34-300
CSL03004L	FRONT LH (A= 104MM)	3410592 GA2A-34-170 GA2A-34-170A
CSL03004R	FRONT RH (A= 104MM)	3410591 GA2A-34-150 GA2A-34-150A
CSL03021	REAR (A= 89MM)	3395949 3799085 GA2B-28-170 GA2B-28-170A GA2B-28-170B GA2C-280-170A GA2C-28-170 GA2C-28-170B
CTE03004	FRONT AXLE LH/ RH (C= M14X1.5)	0H001-32280 0K620-32240A 1363-32510A 1391-99-322 8AH1-32-280 9922-13-020 9992-41-201 H001-99-324 H260-32-280
CTE03005	FRONT AXLE LH/ RH (C= M14X1.5)	3405915 8AG232280 8AG3-32-280 8AG4-32-280 8AG432280A F32Z3A130A G211-33-020 G304-33-020A GA2A-32-280 GA2A-32-280A GJ21-33-020 GJ21-33-020A GJ21-33-030 GJ21-33-030A GJ26-33-020 GJ26-33-030 GJ51-33-020B GJ51-33-020C GJ51-33-020D GJ51-33-020E GJ51-33-030B GJ

Model (Year)
626 III (GD) \| 626 / EUNOS 300 \| TELSTAR / 626 / EUNOS 300 626 III Coupe (GD) \| 626 / MONTROSE 626 III Hatchback (GD) 626 III Station Wagon (GV) 626 IV (GE) \| 626 / CRONOS / MS6 \| CRONOS / TELSTAR 626 IV Hatchback (GE) \| TELSTAR \| 626 / CRONOS / MS6 MX-6 (GD) MX-6 (GE) XEDOS 6 (CA) \| EUNOS 500

Model (Year)
PROBE II (ECP)
